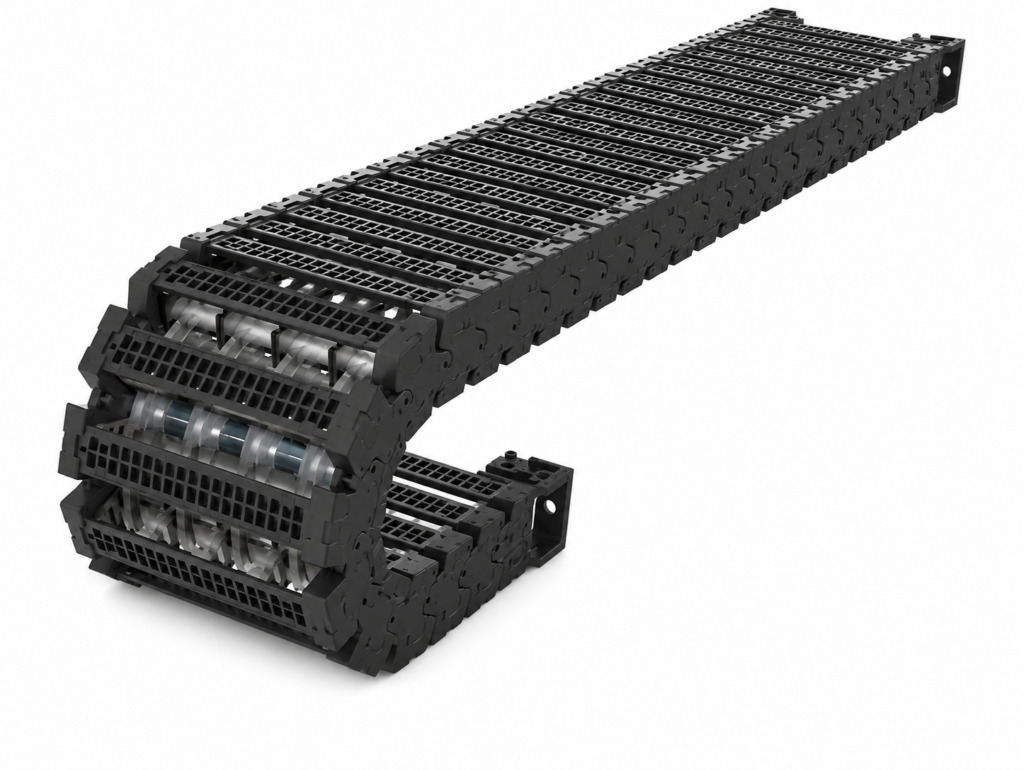

[CP SYSTEM] — nsb028CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 35-200mm)
Cable Carriers CP SYSTEM

[CP SYSTEM] — nsb028CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 35-200mm)

Family ID: CPS-NSB-028CRG

nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.

24 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
nsb028CRG.35.R50 nsb028CRG G-Clean Chain, inner width 35mm, bending radius R50mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 0.88 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.35.R70 nsb028CRG G-Clean Chain, inner width 35mm, bending radius R70mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 0.88 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.35.R90 nsb028CRG G-Clean Chain, inner width 35mm, bending radius R90mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 0.88 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.50.R50 nsb028CRG G-Clean Chain, inner width 50mm, bending radius R50mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.50.R70 nsb028CRG G-Clean Chain, inner width 50mm, bending radius R70mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.50.R90 nsb028CRG G-Clean Chain, inner width 50mm, bending radius R90mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.02 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.55.R50 nsb028CRG G-Clean Chain, inner width 55mm, bending radius R50mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.048 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.55.R70 nsb028CRG G-Clean Chain, inner width 55mm, bending radius R70mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.048 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.55.R90 nsb028CRG G-Clean Chain, inner width 55mm, bending radius R90mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.048 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.75.R50 nsb028CRG G-Clean Chain, inner width 75mm, bending radius R50mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.157 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.75.R70 nsb028CRG G-Clean Chain, inner width 75mm, bending radius R70mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.157 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.75.R90 nsb028CRG G-Clean Chain, inner width 75mm, bending radius R90mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.157 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.100.R50 nsb028CRG G-Clean Chain, inner width 100mm, bending radius R50mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.293 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.100.R70 nsb028CRG G-Clean Chain, inner width 100mm, bending radius R70mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.293 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.100.R90 nsb028CRG G-Clean Chain, inner width 100mm, bending radius R90mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.293 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.125.R50 nsb028CRG G-Clean Chain, inner width 125mm, bending radius R50mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.409 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.125.R70 nsb028CRG G-Clean Chain, inner width 125mm, bending radius R70mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.409 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.125.R90 nsb028CRG G-Clean Chain, inner width 125mm, bending radius R90mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.409 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.150.R50 nsb028CRG G-Clean Chain, inner width 150mm, bending radius R50mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.538 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.150.R70 nsb028CRG G-Clean Chain, inner width 150mm, bending radius R70mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.538 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.150.R90 nsb028CRG G-Clean Chain, inner width 150mm, bending radius R90mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.538 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.200.R50 nsb028CRG G-Clean Chain, inner width 200mm, bending radius R50mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 50mm | Loop Length (Lp): 269mm | Moving Height (H): 146mm | Weight: 1.802 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.200.R70 nsb028CRG G-Clean Chain, inner width 200mm, bending radius R70mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 70mm | Loop Length (Lp): 332mm | Moving Height (H): 186mm | Weight: 1.802 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb028CRG.200.R90 nsb028CRG G-Clean Chain, inner width 200mm, bending radius R90mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 38.8mm | Inner Height (D): 24.5mm | Bending Radius (R): 90mm | Loop Length (Lp): 395mm | Moving Height (H): 226mm | Weight: 1.802 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
