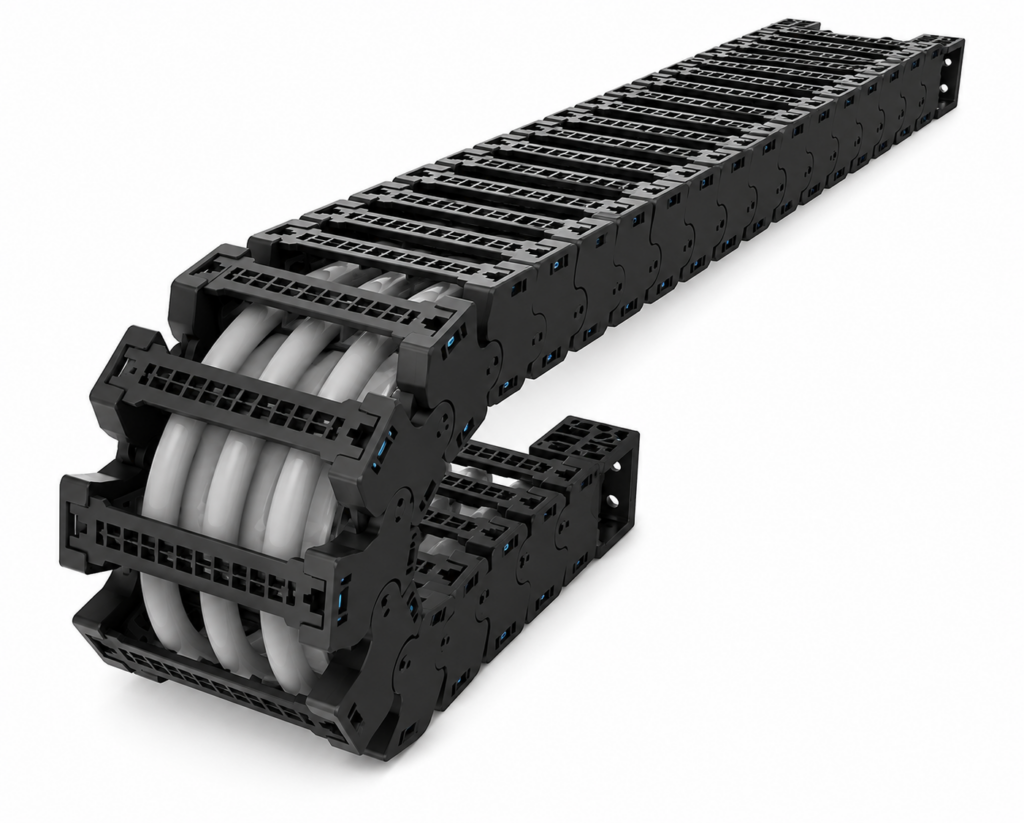

[CP SYSTEM] — nsb060CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 100-250mm)
Cable Carriers CP SYSTEM

[CP SYSTEM] — nsb060CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 100-250mm)

Family ID: CPS-NSB-060CRG

nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.

20 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
nsb060CRG.100.R125 nsb060CRG G-Clean Chain, inner width 100mm, bending radius R125mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 140mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 125mm | Loop Length (Lp): 753mm | Moving Height (H): 358mm | Weight: 5.75 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.100.R140 nsb060CRG G-Clean Chain, inner width 100mm, bending radius R140mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 140mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 5.75 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.100.R190 nsb060CRG G-Clean Chain, inner width 100mm, bending radius R190mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 140mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 190mm | Loop Length (Lp): 957mm | Moving Height (H): 488mm | Weight: 5.75 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.100.R220 nsb060CRG G-Clean Chain, inner width 100mm, bending radius R220mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 140mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 220mm | Loop Length (Lp): 1051mm | Moving Height (H): 548mm | Weight: 5.75 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.100.R270 nsb060CRG G-Clean Chain, inner width 100mm, bending radius R270mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 140mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 270mm | Loop Length (Lp): 1208mm | Moving Height (H): 648mm | Weight: 5.75 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.150.R125 nsb060CRG G-Clean Chain, inner width 150mm, bending radius R125mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 190mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 125mm | Loop Length (Lp): 753mm | Moving Height (H): 358mm | Weight: 6.15 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.150.R140 nsb060CRG G-Clean Chain, inner width 150mm, bending radius R140mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 190mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 6.15 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.150.R190 nsb060CRG G-Clean Chain, inner width 150mm, bending radius R190mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 190mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 190mm | Loop Length (Lp): 957mm | Moving Height (H): 488mm | Weight: 6.15 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.150.R220 nsb060CRG G-Clean Chain, inner width 150mm, bending radius R220mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 190mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 220mm | Loop Length (Lp): 1051mm | Moving Height (H): 548mm | Weight: 6.15 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.150.R270 nsb060CRG G-Clean Chain, inner width 150mm, bending radius R270mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 190mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 270mm | Loop Length (Lp): 1208mm | Moving Height (H): 648mm | Weight: 6.15 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.200.R125 nsb060CRG G-Clean Chain, inner width 200mm, bending radius R125mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 240mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 125mm | Loop Length (Lp): 753mm | Moving Height (H): 358mm | Weight: 6.51 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.200.R140 nsb060CRG G-Clean Chain, inner width 200mm, bending radius R140mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 240mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 6.51 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.200.R190 nsb060CRG G-Clean Chain, inner width 200mm, bending radius R190mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 240mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 190mm | Loop Length (Lp): 957mm | Moving Height (H): 488mm | Weight: 6.51 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.200.R220 nsb060CRG G-Clean Chain, inner width 200mm, bending radius R220mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 240mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 220mm | Loop Length (Lp): 1051mm | Moving Height (H): 548mm | Weight: 6.51 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.200.R270 nsb060CRG G-Clean Chain, inner width 200mm, bending radius R270mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 240mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 270mm | Loop Length (Lp): 1208mm | Moving Height (H): 648mm | Weight: 6.51 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.250.R125 nsb060CRG G-Clean Chain, inner width 250mm, bending radius R125mm CP SYSTEM Inner Width (C): 250mm | Outer Width (A): 290mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 125mm | Loop Length (Lp): 753mm | Moving Height (H): 358mm | Weight: 6.84 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.250.R140 nsb060CRG G-Clean Chain, inner width 250mm, bending radius R140mm CP SYSTEM Inner Width (C): 250mm | Outer Width (A): 290mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 6.84 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.250.R190 nsb060CRG G-Clean Chain, inner width 250mm, bending radius R190mm CP SYSTEM Inner Width (C): 250mm | Outer Width (A): 290mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 190mm | Loop Length (Lp): 957mm | Moving Height (H): 488mm | Weight: 6.84 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.250.R220 nsb060CRG G-Clean Chain, inner width 250mm, bending radius R220mm CP SYSTEM Inner Width (C): 250mm | Outer Width (A): 290mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 220mm | Loop Length (Lp): 1051mm | Moving Height (H): 548mm | Weight: 6.84 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb060CRG.250.R270 nsb060CRG G-Clean Chain, inner width 250mm, bending radius R270mm CP SYSTEM Inner Width (C): 250mm | Outer Width (A): 290mm | Outer Height (B): 83.2mm | Inner Height (D): 56mm | Bending Radius (R): 270mm | Loop Length (Lp): 1208mm | Moving Height (H): 648mm | Weight: 6.84 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
