Cable Carriers
CP SYSTEM

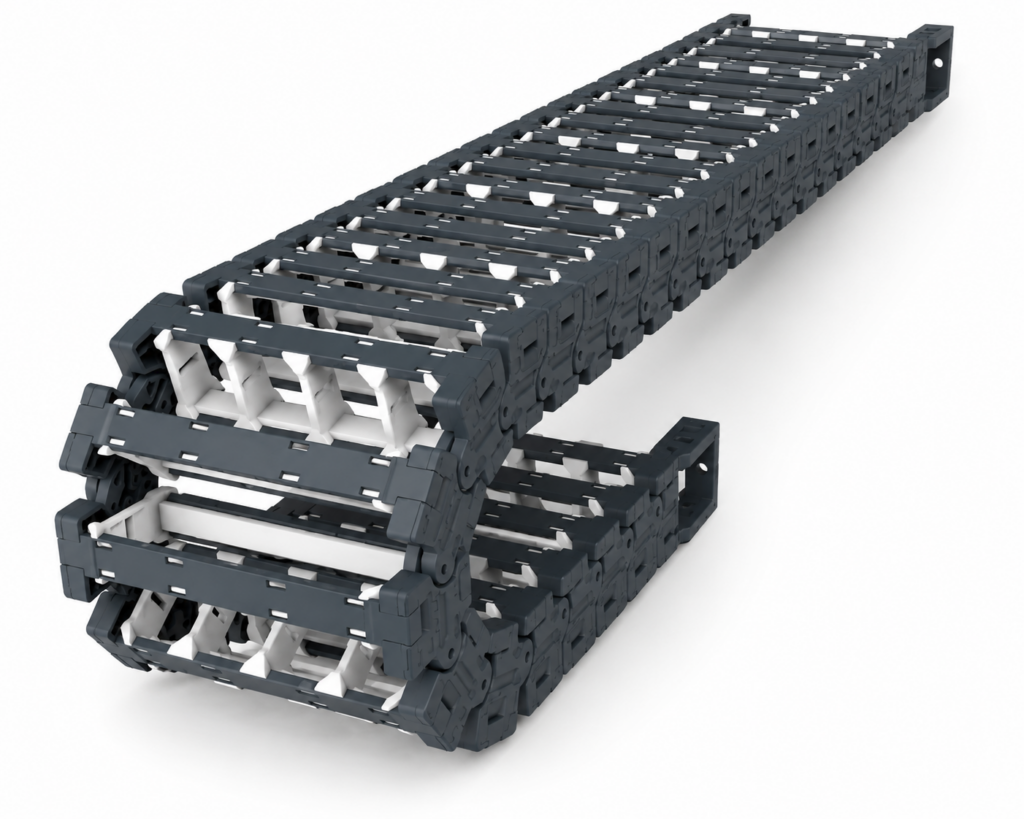

[CP SYSTEM] — nsb022CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 27-77mm)
Family ID: CPS-NSB-022CRG
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.
15 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| nsb022CRG.27.R35 | nsb022CRG G-Clean Chain, inner width 27mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 27mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.426 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.27.R45 | nsb022CRG G-Clean Chain, inner width 27mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 27mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.426 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.27.R75 | nsb022CRG G-Clean Chain, inner width 27mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 27mm | Outer Width (A): 41mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.426 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.37.R35 | nsb022CRG G-Clean Chain, inner width 37mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 37mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.463 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.37.R45 | nsb022CRG G-Clean Chain, inner width 37mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 37mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.463 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.37.R75 | nsb022CRG G-Clean Chain, inner width 37mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 37mm | Outer Width (A): 51mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.463 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.47.R35 | nsb022CRG G-Clean Chain, inner width 47mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 47mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.5 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.47.R45 | nsb022CRG G-Clean Chain, inner width 47mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 47mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.5 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.47.R75 | nsb022CRG G-Clean Chain, inner width 47mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 47mm | Outer Width (A): 61mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.5 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.67.R35 | nsb022CRG G-Clean Chain, inner width 67mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 67mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.56 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.67.R45 | nsb022CRG G-Clean Chain, inner width 67mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 67mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.56 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.67.R75 | nsb022CRG G-Clean Chain, inner width 67mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 67mm | Outer Width (A): 81mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.56 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.77.R35 | nsb022CRG G-Clean Chain, inner width 77mm, bending radius R35mm | CP SYSTEM | Inner Width (C): 77mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 35mm | Loop Length (Lp): 198mm | Moving Height (H): 106mm | Weight: 0.601 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.77.R45 | nsb022CRG G-Clean Chain, inner width 77mm, bending radius R45mm | CP SYSTEM | Inner Width (C): 77mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 45mm | Loop Length (Lp): 230mm | Moving Height (H): 126mm | Weight: 0.601 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb022CRG.77.R75 | nsb022CRG G-Clean Chain, inner width 77mm, bending radius R75mm | CP SYSTEM | Inner Width (C): 77mm | Outer Width (A): 91mm | Outer Height (B): 29mm | Inner Height (D): 20mm | Bending Radius (R): 75mm | Loop Length (Lp): 324mm | Moving Height (H): 186mm | Weight: 0.601 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order |
