Cable Carriers
CP SYSTEM

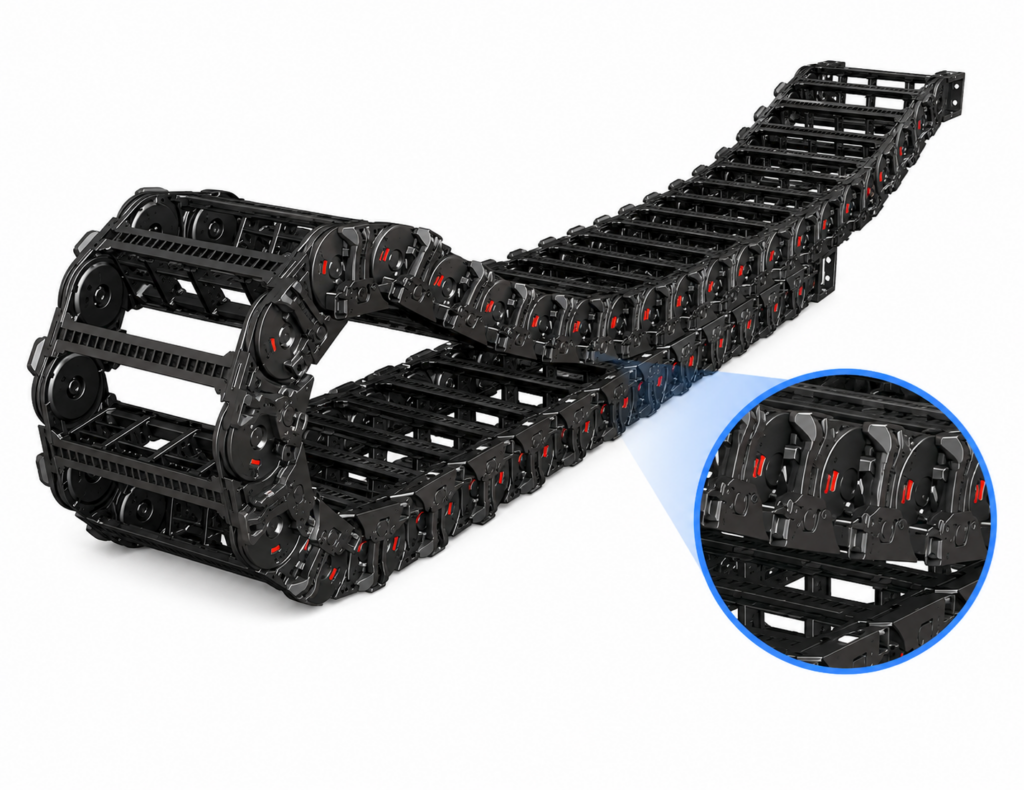

[CP SYSTEM] — Shift Chain ST044RS Roller Skid Type Cable Carrier (Pitch 44, Inside Width 35-200mm, BR R70-R150)
Family ID: CPS-SHIFT-044RS
Shift Chain Roller Skid Type ST044RS, with protruding rollers that act as wheels when the roller-mounted skid contacts the lower chain, enabling fast long-distance travel without friction. Rollers are applied every 2 or 4 links. Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band. Pitch 44mm. Inside width 35-200mm; bending radius R70-R150. Material CPS-Amide (PA6+G.F). Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available. Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3. Rollers, length and divider/separator made-to-order. Certified CE, ATEX(Ex), RoHS2.
36 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ST044RS.35.R70 | Shift Chain Roller Skid ST044RS, inside width 35mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.09 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.35.R90 | Shift Chain Roller Skid ST044RS, inside width 35mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.09 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.35.R120 | Shift Chain Roller Skid ST044RS, inside width 35mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.09 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.35.R150 | Shift Chain Roller Skid ST044RS, inside width 35mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 35mm | Outer Width (A): 73mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.09 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.50.R70 | Shift Chain Roller Skid ST044RS, inside width 50mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 88mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.50.R90 | Shift Chain Roller Skid ST044RS, inside width 50mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 88mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.50.R120 | Shift Chain Roller Skid ST044RS, inside width 50mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 88mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.50.R150 | Shift Chain Roller Skid ST044RS, inside width 50mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 50mm | Outer Width (A): 88mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.55.R70 | Shift Chain Roller Skid ST044RS, inside width 55mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.55.R90 | Shift Chain Roller Skid ST044RS, inside width 55mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.55.R120 | Shift Chain Roller Skid ST044RS, inside width 55mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.55.R150 | Shift Chain Roller Skid ST044RS, inside width 55mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 55mm | Outer Width (A): 93mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.17 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.75.R70 | Shift Chain Roller Skid ST044RS, inside width 75mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.24 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.75.R90 | Shift Chain Roller Skid ST044RS, inside width 75mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.24 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.75.R120 | Shift Chain Roller Skid ST044RS, inside width 75mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.24 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.75.R150 | Shift Chain Roller Skid ST044RS, inside width 75mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 75mm | Outer Width (A): 113mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.24 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.100.R70 | Shift Chain Roller Skid ST044RS, inside width 100mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.100.R90 | Shift Chain Roller Skid ST044RS, inside width 100mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.100.R120 | Shift Chain Roller Skid ST044RS, inside width 100mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.100.R150 | Shift Chain Roller Skid ST044RS, inside width 100mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.125.R70 | Shift Chain Roller Skid ST044RS, inside width 125mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.47 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.125.R90 | Shift Chain Roller Skid ST044RS, inside width 125mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.47 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.125.R120 | Shift Chain Roller Skid ST044RS, inside width 125mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.47 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.125.R150 | Shift Chain Roller Skid ST044RS, inside width 125mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.47 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.150.R70 | Shift Chain Roller Skid ST044RS, inside width 150mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.150.R90 | Shift Chain Roller Skid ST044RS, inside width 150mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.150.R120 | Shift Chain Roller Skid ST044RS, inside width 150mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.150.R150 | Shift Chain Roller Skid ST044RS, inside width 150mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.59 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.175.R70 | Shift Chain Roller Skid ST044RS, inside width 175mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 1.88 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.175.R90 | Shift Chain Roller Skid ST044RS, inside width 175mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 1.88 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.175.R120 | Shift Chain Roller Skid ST044RS, inside width 175mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 1.88 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.175.R150 | Shift Chain Roller Skid ST044RS, inside width 175mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 1.88 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.200.R70 | Shift Chain Roller Skid ST044RS, inside width 200mm, bending radius R70mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 70mm | Weight: 2.05 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.200.R90 | Shift Chain Roller Skid ST044RS, inside width 200mm, bending radius R90mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 90mm | Weight: 2.05 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.200.R120 | Shift Chain Roller Skid ST044RS, inside width 200mm, bending radius R120mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 120mm | Weight: 2.05 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST044RS.200.R150 | Shift Chain Roller Skid ST044RS, inside width 200mm, bending radius R150mm | CP SYSTEM | Model: ST044RS | Type: Roller Skid (RS) | Pitch: 44mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 40.5mm | Inner Height (D): 26mm | Bending Radius (R): 150mm | Weight: 2.05 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: FEB (Free End) + End Bracket (EB), B1/B2/B3 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 |
