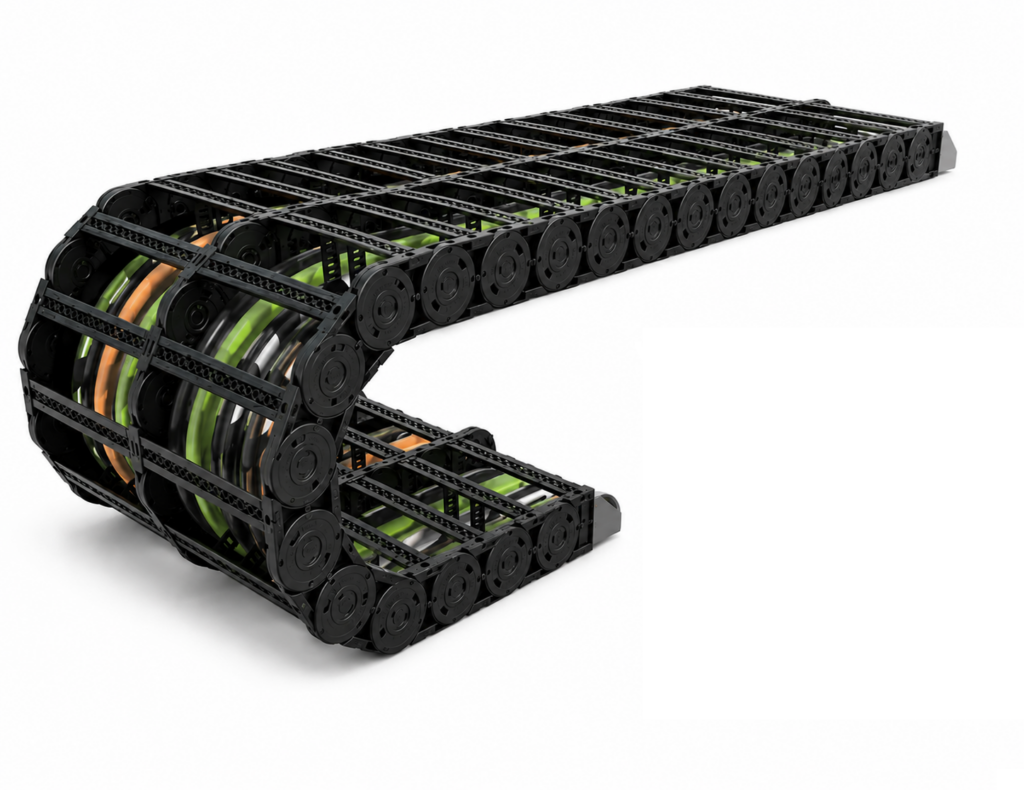

[CP SYSTEM] — Shift Chain ST095D Double Chain Cable Carrier (Pitch 95, Inside Width 75-400mm, BR R135-R400)
Family ID: CPS-SHIFT-095D
Shift Chain Double Chain ST095D, a left/right (RH/LH) combined cable & hose carrier where the RH and LH inside widths are independently selectable. Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band. Pitch 95mm. Inside width 75-400mm per side; bending radius R135-R400. Listed product codes are symmetric (RH = LH); asymmetric RH/LH width combinations are available made-to-order. Material CPS-Amide (PA6+G.F). Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available. Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2. Length and divider/separator made-to-order. Certified CE, ATEX(Ex), RoHS2.
78 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ST095D.RH75.LH75.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=75mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =75mm | LH Inside Width: =75mm | Inside Width (C, per side): 75mm | Outer Width (A, per side): 113mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 6.22 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH75.LH75.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=75mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =75mm | LH Inside Width: =75mm | Inside Width (C, per side): 75mm | Outer Width (A, per side): 113mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 6.22 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH75.LH75.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=75mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =75mm | LH Inside Width: =75mm | Inside Width (C, per side): 75mm | Outer Width (A, per side): 113mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 6.22 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH75.LH75.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=75mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =75mm | LH Inside Width: =75mm | Inside Width (C, per side): 75mm | Outer Width (A, per side): 113mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 6.22 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH75.LH75.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=75mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =75mm | LH Inside Width: =75mm | Inside Width (C, per side): 75mm | Outer Width (A, per side): 113mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 6.22 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH75.LH75.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=75mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =75mm | LH Inside Width: =75mm | Inside Width (C, per side): 75mm | Outer Width (A, per side): 113mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 6.22 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH100.LH100.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=100mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =100mm | LH Inside Width: =100mm | Inside Width (C, per side): 100mm | Outer Width (A, per side): 138mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 6.34 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH100.LH100.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=100mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =100mm | LH Inside Width: =100mm | Inside Width (C, per side): 100mm | Outer Width (A, per side): 138mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 6.34 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH100.LH100.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=100mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =100mm | LH Inside Width: =100mm | Inside Width (C, per side): 100mm | Outer Width (A, per side): 138mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 6.34 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH100.LH100.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=100mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =100mm | LH Inside Width: =100mm | Inside Width (C, per side): 100mm | Outer Width (A, per side): 138mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 6.34 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH100.LH100.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=100mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =100mm | LH Inside Width: =100mm | Inside Width (C, per side): 100mm | Outer Width (A, per side): 138mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 6.34 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH100.LH100.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=100mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =100mm | LH Inside Width: =100mm | Inside Width (C, per side): 100mm | Outer Width (A, per side): 138mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 6.34 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH125.LH125.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=125mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =125mm | LH Inside Width: =125mm | Inside Width (C, per side): 125mm | Outer Width (A, per side): 163mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 6.74 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH125.LH125.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=125mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =125mm | LH Inside Width: =125mm | Inside Width (C, per side): 125mm | Outer Width (A, per side): 163mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 6.74 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH125.LH125.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=125mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =125mm | LH Inside Width: =125mm | Inside Width (C, per side): 125mm | Outer Width (A, per side): 163mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 6.74 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH125.LH125.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=125mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =125mm | LH Inside Width: =125mm | Inside Width (C, per side): 125mm | Outer Width (A, per side): 163mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 6.74 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH125.LH125.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=125mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =125mm | LH Inside Width: =125mm | Inside Width (C, per side): 125mm | Outer Width (A, per side): 163mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 6.74 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH125.LH125.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=125mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =125mm | LH Inside Width: =125mm | Inside Width (C, per side): 125mm | Outer Width (A, per side): 163mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 6.74 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH150.LH150.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=150mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =150mm | LH Inside Width: =150mm | Inside Width (C, per side): 150mm | Outer Width (A, per side): 188mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 6.98 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH150.LH150.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=150mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =150mm | LH Inside Width: =150mm | Inside Width (C, per side): 150mm | Outer Width (A, per side): 188mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 6.98 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH150.LH150.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=150mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =150mm | LH Inside Width: =150mm | Inside Width (C, per side): 150mm | Outer Width (A, per side): 188mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 6.98 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH150.LH150.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=150mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =150mm | LH Inside Width: =150mm | Inside Width (C, per side): 150mm | Outer Width (A, per side): 188mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 6.98 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH150.LH150.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=150mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =150mm | LH Inside Width: =150mm | Inside Width (C, per side): 150mm | Outer Width (A, per side): 188mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 6.98 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH150.LH150.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=150mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =150mm | LH Inside Width: =150mm | Inside Width (C, per side): 150mm | Outer Width (A, per side): 188mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 6.98 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH175.LH175.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=175mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =175mm | LH Inside Width: =175mm | Inside Width (C, per side): 175mm | Outer Width (A, per side): 213mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 7.20 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH175.LH175.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=175mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =175mm | LH Inside Width: =175mm | Inside Width (C, per side): 175mm | Outer Width (A, per side): 213mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 7.20 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH175.LH175.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=175mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =175mm | LH Inside Width: =175mm | Inside Width (C, per side): 175mm | Outer Width (A, per side): 213mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 7.20 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH175.LH175.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=175mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =175mm | LH Inside Width: =175mm | Inside Width (C, per side): 175mm | Outer Width (A, per side): 213mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 7.20 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH175.LH175.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=175mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =175mm | LH Inside Width: =175mm | Inside Width (C, per side): 175mm | Outer Width (A, per side): 213mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 7.20 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH175.LH175.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=175mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =175mm | LH Inside Width: =175mm | Inside Width (C, per side): 175mm | Outer Width (A, per side): 213mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 7.20 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH190.LH190.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=190mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =190mm | LH Inside Width: =190mm | Inside Width (C, per side): 190mm | Outer Width (A, per side): 228mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 7.42 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH190.LH190.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=190mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =190mm | LH Inside Width: =190mm | Inside Width (C, per side): 190mm | Outer Width (A, per side): 228mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 7.42 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH190.LH190.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=190mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =190mm | LH Inside Width: =190mm | Inside Width (C, per side): 190mm | Outer Width (A, per side): 228mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 7.42 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH190.LH190.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=190mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =190mm | LH Inside Width: =190mm | Inside Width (C, per side): 190mm | Outer Width (A, per side): 228mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 7.42 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH190.LH190.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=190mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =190mm | LH Inside Width: =190mm | Inside Width (C, per side): 190mm | Outer Width (A, per side): 228mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 7.42 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH190.LH190.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=190mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =190mm | LH Inside Width: =190mm | Inside Width (C, per side): 190mm | Outer Width (A, per side): 228mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 7.42 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH200.LH200.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=200mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =200mm | LH Inside Width: =200mm | Inside Width (C, per side): 200mm | Outer Width (A, per side): 238mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 7.58 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH200.LH200.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=200mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =200mm | LH Inside Width: =200mm | Inside Width (C, per side): 200mm | Outer Width (A, per side): 238mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 7.58 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH200.LH200.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=200mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =200mm | LH Inside Width: =200mm | Inside Width (C, per side): 200mm | Outer Width (A, per side): 238mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 7.58 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH200.LH200.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=200mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =200mm | LH Inside Width: =200mm | Inside Width (C, per side): 200mm | Outer Width (A, per side): 238mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 7.58 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH200.LH200.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=200mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =200mm | LH Inside Width: =200mm | Inside Width (C, per side): 200mm | Outer Width (A, per side): 238mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 7.58 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH200.LH200.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=200mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =200mm | LH Inside Width: =200mm | Inside Width (C, per side): 200mm | Outer Width (A, per side): 238mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 7.58 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH230.LH230.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=230mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =230mm | LH Inside Width: =230mm | Inside Width (C, per side): 230mm | Outer Width (A, per side): 268mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 7.90 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH230.LH230.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=230mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =230mm | LH Inside Width: =230mm | Inside Width (C, per side): 230mm | Outer Width (A, per side): 268mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 7.90 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH230.LH230.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=230mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =230mm | LH Inside Width: =230mm | Inside Width (C, per side): 230mm | Outer Width (A, per side): 268mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 7.90 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH230.LH230.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=230mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =230mm | LH Inside Width: =230mm | Inside Width (C, per side): 230mm | Outer Width (A, per side): 268mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 7.90 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH230.LH230.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=230mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =230mm | LH Inside Width: =230mm | Inside Width (C, per side): 230mm | Outer Width (A, per side): 268mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 7.90 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH230.LH230.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=230mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =230mm | LH Inside Width: =230mm | Inside Width (C, per side): 230mm | Outer Width (A, per side): 268mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 7.90 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH240.LH240.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=240mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =240mm | LH Inside Width: =240mm | Inside Width (C, per side): 240mm | Outer Width (A, per side): 278mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 8.00 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH240.LH240.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=240mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =240mm | LH Inside Width: =240mm | Inside Width (C, per side): 240mm | Outer Width (A, per side): 278mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 8.00 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH240.LH240.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=240mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =240mm | LH Inside Width: =240mm | Inside Width (C, per side): 240mm | Outer Width (A, per side): 278mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 8.00 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH240.LH240.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=240mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =240mm | LH Inside Width: =240mm | Inside Width (C, per side): 240mm | Outer Width (A, per side): 278mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 8.00 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH240.LH240.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=240mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =240mm | LH Inside Width: =240mm | Inside Width (C, per side): 240mm | Outer Width (A, per side): 278mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 8.00 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH240.LH240.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=240mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =240mm | LH Inside Width: =240mm | Inside Width (C, per side): 240mm | Outer Width (A, per side): 278mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 8.00 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH250.LH250.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=250mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =250mm | LH Inside Width: =250mm | Inside Width (C, per side): 250mm | Outer Width (A, per side): 288mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 8.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH250.LH250.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=250mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =250mm | LH Inside Width: =250mm | Inside Width (C, per side): 250mm | Outer Width (A, per side): 288mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 8.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH250.LH250.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=250mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =250mm | LH Inside Width: =250mm | Inside Width (C, per side): 250mm | Outer Width (A, per side): 288mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 8.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH250.LH250.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=250mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =250mm | LH Inside Width: =250mm | Inside Width (C, per side): 250mm | Outer Width (A, per side): 288mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 8.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH250.LH250.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=250mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =250mm | LH Inside Width: =250mm | Inside Width (C, per side): 250mm | Outer Width (A, per side): 288mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 8.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH250.LH250.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=250mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =250mm | LH Inside Width: =250mm | Inside Width (C, per side): 250mm | Outer Width (A, per side): 288mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 8.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH300.LH300.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=300mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =300mm | LH Inside Width: =300mm | Inside Width (C, per side): 300mm | Outer Width (A, per side): 338mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 8.62 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH300.LH300.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=300mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =300mm | LH Inside Width: =300mm | Inside Width (C, per side): 300mm | Outer Width (A, per side): 338mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 8.62 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH300.LH300.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=300mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =300mm | LH Inside Width: =300mm | Inside Width (C, per side): 300mm | Outer Width (A, per side): 338mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 8.62 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH300.LH300.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=300mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =300mm | LH Inside Width: =300mm | Inside Width (C, per side): 300mm | Outer Width (A, per side): 338mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 8.62 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH300.LH300.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=300mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =300mm | LH Inside Width: =300mm | Inside Width (C, per side): 300mm | Outer Width (A, per side): 338mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 8.62 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH300.LH300.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=300mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =300mm | LH Inside Width: =300mm | Inside Width (C, per side): 300mm | Outer Width (A, per side): 338mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 8.62 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH350.LH350.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=350mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =350mm | LH Inside Width: =350mm | Inside Width (C, per side): 350mm | Outer Width (A, per side): 388mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 9.38 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH350.LH350.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=350mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =350mm | LH Inside Width: =350mm | Inside Width (C, per side): 350mm | Outer Width (A, per side): 388mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 9.38 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH350.LH350.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=350mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =350mm | LH Inside Width: =350mm | Inside Width (C, per side): 350mm | Outer Width (A, per side): 388mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 9.38 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH350.LH350.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=350mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =350mm | LH Inside Width: =350mm | Inside Width (C, per side): 350mm | Outer Width (A, per side): 388mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 9.38 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH350.LH350.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=350mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =350mm | LH Inside Width: =350mm | Inside Width (C, per side): 350mm | Outer Width (A, per side): 388mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 9.38 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH350.LH350.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=350mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =350mm | LH Inside Width: =350mm | Inside Width (C, per side): 350mm | Outer Width (A, per side): 388mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 9.38 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH400.LH400.R135 | Shift Chain Double ST095D, symmetric inside width RH=LH=400mm, bending radius R135mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =400mm | LH Inside Width: =400mm | Inside Width (C, per side): 400mm | Outer Width (A, per side): 438mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 135mm | Weight: 10.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH400.LH400.R150 | Shift Chain Double ST095D, symmetric inside width RH=LH=400mm, bending radius R150mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =400mm | LH Inside Width: =400mm | Inside Width (C, per side): 400mm | Outer Width (A, per side): 438mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 150mm | Weight: 10.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH400.LH400.R200 | Shift Chain Double ST095D, symmetric inside width RH=LH=400mm, bending radius R200mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =400mm | LH Inside Width: =400mm | Inside Width (C, per side): 400mm | Outer Width (A, per side): 438mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 200mm | Weight: 10.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH400.LH400.R230 | Shift Chain Double ST095D, symmetric inside width RH=LH=400mm, bending radius R230mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =400mm | LH Inside Width: =400mm | Inside Width (C, per side): 400mm | Outer Width (A, per side): 438mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 230mm | Weight: 10.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH400.LH400.R280 | Shift Chain Double ST095D, symmetric inside width RH=LH=400mm, bending radius R280mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =400mm | LH Inside Width: =400mm | Inside Width (C, per side): 400mm | Outer Width (A, per side): 438mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 280mm | Weight: 10.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095D.RH400.LH400.R400 | Shift Chain Double ST095D, symmetric inside width RH=LH=400mm, bending radius R400mm | CP SYSTEM | Model: ST095D | Type: Double Chain (D) | Pitch: 95mm | RH Inside Width: =400mm | LH Inside Width: =400mm | Inside Width (C, per side): 400mm | Outer Width (A, per side): 438mm | Outer Height (B): 82mm | Inner Height (D): 56mm | Bending Radius (R): 400mm | Weight: 10.10 kg/m | Asymmetric Option: RH/LH inside width independently selectable (made-to-order) | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (F) / Tie Wrap (FT) / System Tie Wrap (FST) / B1, B2 (made-to-order) | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 |
