Cable Carriers
CP SYSTEM

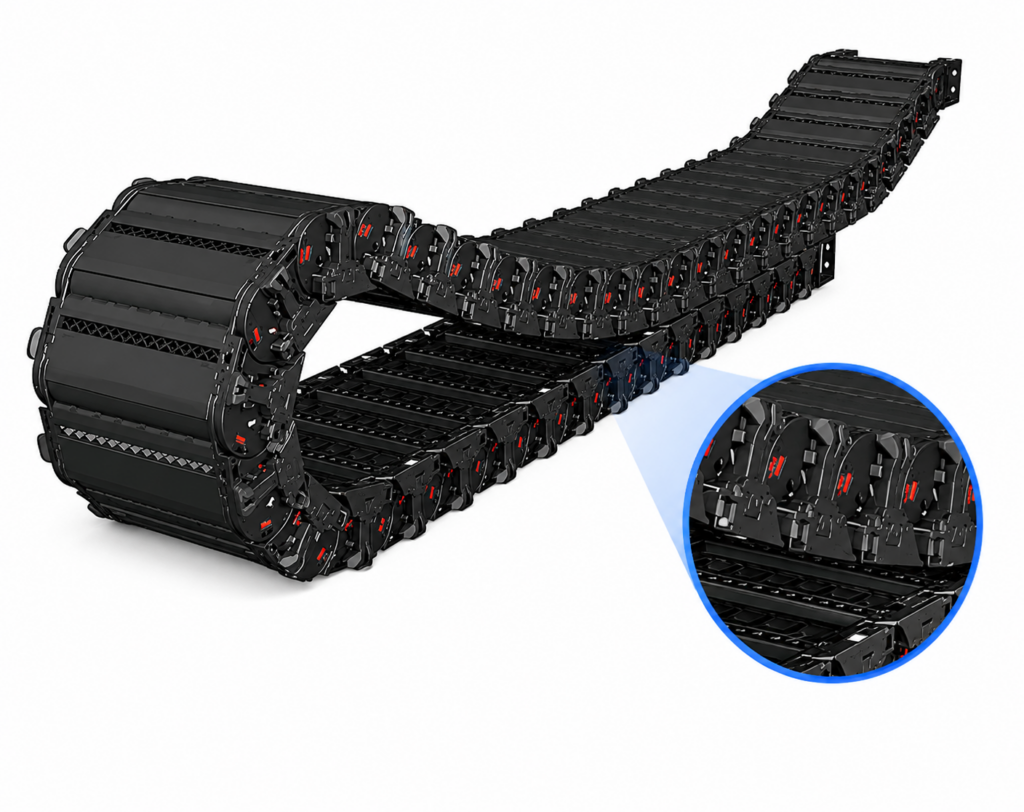

[CP SYSTEM] — Shift Chain ST150ERS Enclosed Roller Skid Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)
Family ID: CPS-SHIFT-150ERS
Shift Chain Enclosed Roller Skid Type ST150ERS, combining a Steel Plate enclosure with protruding rollers and a skid side band for fast, low-friction long-distance travel in protected conditions. Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band. Pitch 150mm. Inside width 200-400mm; bending radius R305-R605. Material CPS-Amide (PA6+G.F). Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available. Bracket: Steel End Bracket (SEB), B1/B2. Rollers, Steel Plate, length and divider/separator made-to-order. Certified CE, ATEX(Ex), RoHS2.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ST150ERS.200.R305 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R305mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.200.R405 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R405mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.200.R505 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R505mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.200.R605 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R605mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.250.R305 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R305mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.250.R405 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R405mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.250.R505 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R505mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.250.R605 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R605mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.300.R305 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R305mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.300.R405 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R405mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.300.R505 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R505mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.300.R605 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R605mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.350.R305 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R305mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.350.R405 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R405mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.350.R505 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R505mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.350.R605 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R605mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.400.R305 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R305mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.400.R405 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R405mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.400.R505 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R505mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST150ERS.400.R605 | Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R605mm | CP SYSTEM | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 |
