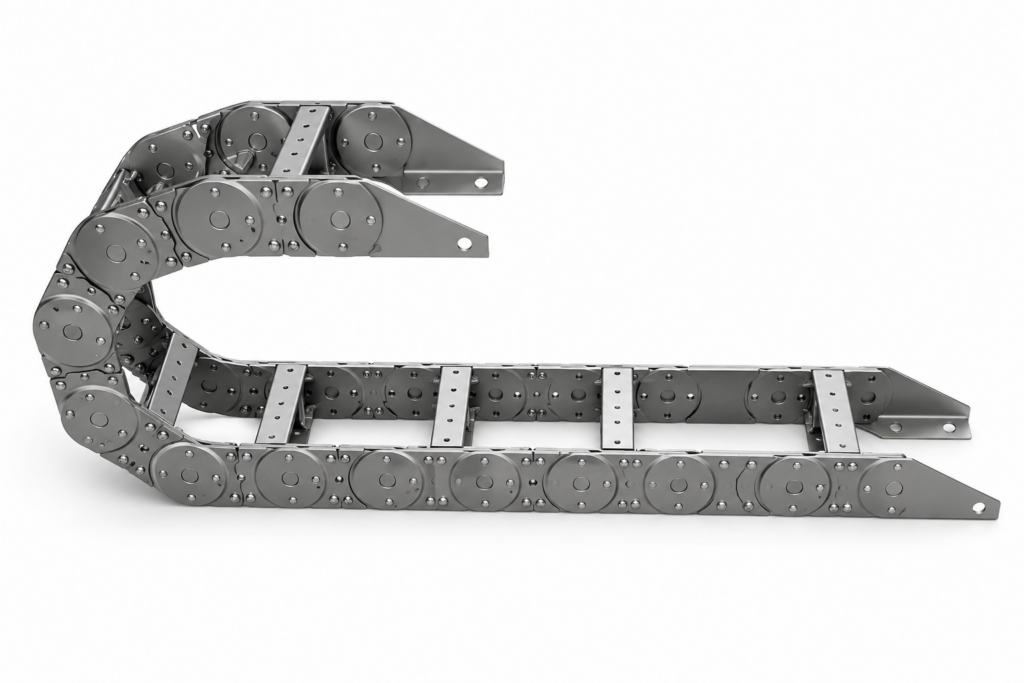

[CP SYSTEM] — SK180 Steel Cable Chain (KR 250-400 mm)
Cable Carriers CP SYSTEM

[CP SYSTEM] — SK180 Steel Cable Chain (KR 250-400 mm)

Family ID: CPS-SK180-A

CP SYSTEM SK180 heavy-duty steel cable chain (drag chain) for protecting cables and hoses on long-stroke moving applications. Bending radius KR 250-400 mm with frame widths BST 171-1071 mm. Solid-type / hole-type frames, B1 and B2 mounting brackets, and matching steel guide channel available.

39 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
SKS180.BST171.KR250 SK180 steel cable chain, BST171 (BK200), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR250 SK180 steel cable chain, BST221 (BK250), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR250 SK180 steel cable chain, BST271 (BK300), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR250 SK180 steel cable chain, BST321 (BK350), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR250 SK180 steel cable chain, BST371 (BK400), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR250 SK180 steel cable chain, BST421 (BK450), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR250 SK180 steel cable chain, BST471 (BK500), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR250 SK180 steel cable chain, BST571 (BK600), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR250 SK180 steel cable chain, BST671 (BK700), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR250 SK180 steel cable chain, BST771 (BK800), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR250 SK180 steel cable chain, BST871 (BK900), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR250 SK180 steel cable chain, BST971 (BK1000), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR250 SK180 steel cable chain, BST1071 (BK1100), KR250 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 250 mm | Loop Length LB: 1500 mm | Safe Space Ha: 650 mm | Moving Height H: 640 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST171.KR300 SK180 steel cable chain, BST171 (BK200), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR300 SK180 steel cable chain, BST221 (BK250), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR300 SK180 steel cable chain, BST271 (BK300), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR300 SK180 steel cable chain, BST321 (BK350), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR300 SK180 steel cable chain, BST371 (BK400), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR300 SK180 steel cable chain, BST421 (BK450), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR300 SK180 steel cable chain, BST471 (BK500), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR300 SK180 steel cable chain, BST571 (BK600), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR300 SK180 steel cable chain, BST671 (BK700), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR300 SK180 steel cable chain, BST771 (BK800), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR300 SK180 steel cable chain, BST871 (BK900), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR300 SK180 steel cable chain, BST971 (BK1000), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR300 SK180 steel cable chain, BST1071 (BK1100), KR300 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 300 mm | Loop Length LB: 1660 mm | Safe Space Ha: 750 mm | Moving Height H: 740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST171.KR400 SK180 steel cable chain, BST171 (BK200), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR400 SK180 steel cable chain, BST221 (BK250), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR400 SK180 steel cable chain, BST271 (BK300), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR400 SK180 steel cable chain, BST321 (BK350), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR400 SK180 steel cable chain, BST371 (BK400), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR400 SK180 steel cable chain, BST421 (BK450), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR400 SK180 steel cable chain, BST471 (BK500), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR400 SK180 steel cable chain, BST571 (BK600), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR400 SK180 steel cable chain, BST671 (BK700), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR400 SK180 steel cable chain, BST771 (BK800), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR400 SK180 steel cable chain, BST871 (BK900), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR400 SK180 steel cable chain, BST971 (BK1000), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR400 SK180 steel cable chain, BST1071 (BK1100), KR400 CP SYSTEM Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 400 mm | Loop Length LB: 1980 mm | Safe Space Ha: 950 mm | Moving Height H: 940 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
