Cable Carriers
CP SYSTEM

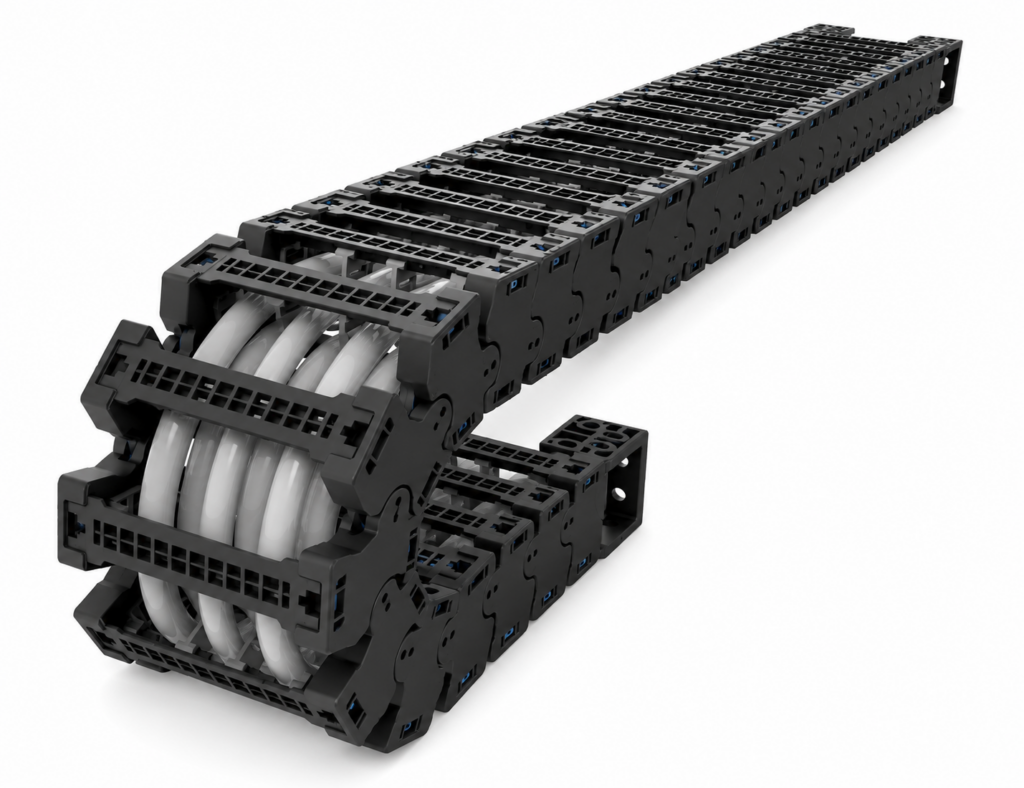

[CP SYSTEM] — nsb060CRGL G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 100-250mm)
Family ID: CPS-NSB-060CRGL
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| nsb060CRGL.100.R140 | nsb060CRGL G-Clean Chain, inner width 100mm, bending radius R140mm | CP SYSTEM | Inner Width (C): 100mm | Outer Width (A): 155mm | Outer Height (B): 83.5mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 5.75 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb060CRGL.150.R140 | nsb060CRGL G-Clean Chain, inner width 150mm, bending radius R140mm | CP SYSTEM | Inner Width (C): 150mm | Outer Width (A): 205mm | Outer Height (B): 83.5mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 6.15 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb060CRGL.200.R140 | nsb060CRGL G-Clean Chain, inner width 200mm, bending radius R140mm | CP SYSTEM | Inner Width (C): 200mm | Outer Width (A): 255mm | Outer Height (B): 83.5mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 6.51 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb060CRGL.250.R140 | nsb060CRGL G-Clean Chain, inner width 250mm, bending radius R140mm | CP SYSTEM | Inner Width (C): 250mm | Outer Width (A): 305mm | Outer Height (B): 83.5mm | Inner Height (D): 56mm | Bending Radius (R): 140mm | Loop Length (Lp): 800mm | Moving Height (H): 388mm | Weight: 6.84 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Pin Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order |
