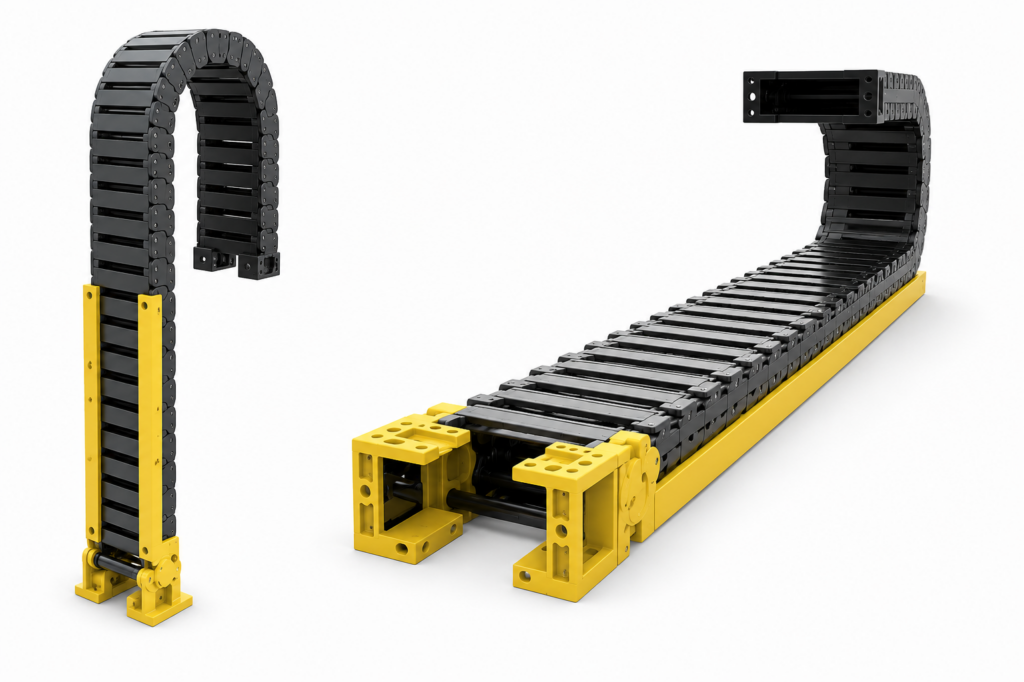

[CP SYSTEM] — Unity System nsb035E (Sabin Chain Enclosed (E), Guide Channel Supported)
Cable Carriers CP SYSTEM

[CP SYSTEM] — Unity System nsb035E (Sabin Chain Enclosed (E), Guide Channel Supported)

Family ID: CPS-UNITY-nsb035E

Unity System - long-travel cable carrier where the nsb035E Sabin Chain is supported inside a Guide Channel (GC) for stable horizontal runs. CPS-Amide chain, speed 6-10 m/s, CE / ATEX(Ex) / RoHs2 certified.

5 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
nsb035E.36/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 36mm, Guide Channel supported CP SYSTEM Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 36 mm | Frame (D): 50 mm | FEB Hole Width (E): 67 mm | FEB Width (F): 86 mm | GC Hole Width (G): 57 mm | Chain Outer Width (I): 70 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.61/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 61mm, Guide Channel supported CP SYSTEM Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 61 mm | Frame (D): 75 mm | FEB Hole Width (E): 92 mm | FEB Width (F): 111 mm | GC Hole Width (G): 82 mm | Chain Outer Width (I): 95 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.86/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 86mm, Guide Channel supported CP SYSTEM Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 86 mm | Frame (D): 100 mm | FEB Hole Width (E): 117 mm | FEB Width (F): 136 mm | GC Hole Width (G): 107 mm | Chain Outer Width (I): 120 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.111/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 111mm, Guide Channel supported CP SYSTEM Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 111 mm | Frame (D): 125 mm | FEB Hole Width (E): 142 mm | FEB Width (F): 161 mm | GC Hole Width (G): 132 mm | Chain Outer Width (I): 145 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.136/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 136mm, Guide Channel supported CP SYSTEM Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 136 mm | Frame (D): 150 mm | FEB Hole Width (E): 167 mm | FEB Width (F): 186 mm | GC Hole Width (G): 157 mm | Chain Outer Width (I): 170 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
