Cable Carriers
CP SYSTEM

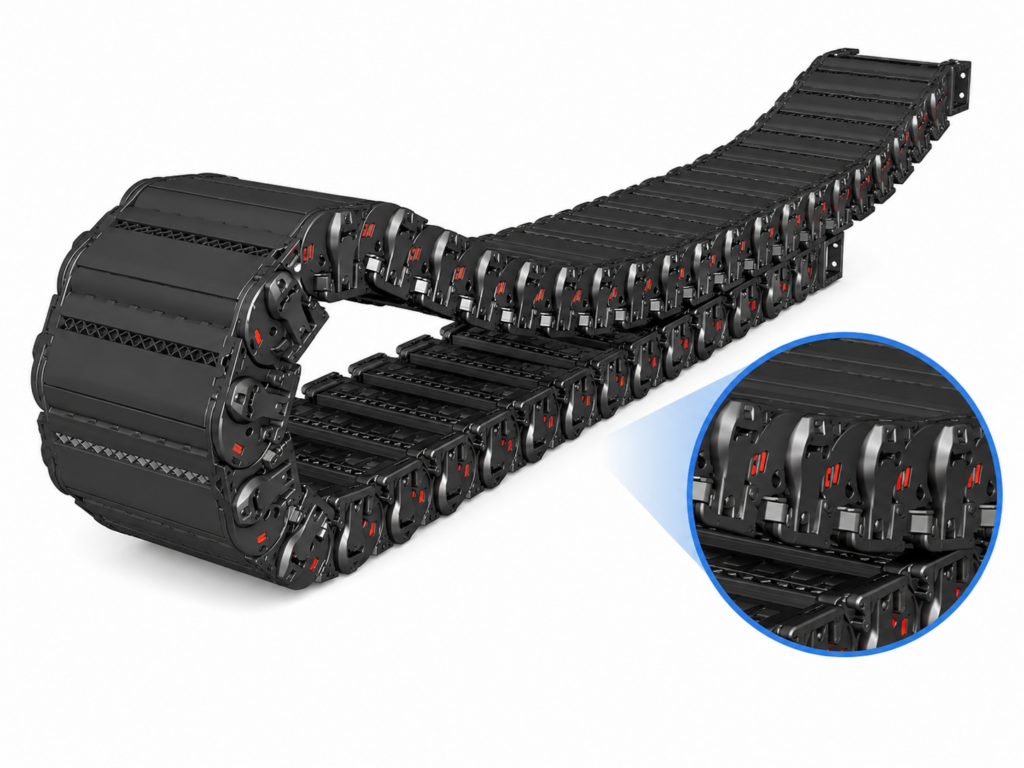

[CP SYSTEM] — Shift Chain ST095ES Enclosed Skid Type Cable Carrier (Pitch 95, Inside Width 100-200mm, BR R150-R400)
Family ID: CPS-SHIFT-095ES
Shift Chain Enclosed Skid Type ST095ES, combining Steel Plate enclosure with a skid side band for long-travel applications; can be applied to all kinds of machine tools and factory lines. Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band. Pitch 95mm. Inside width 100-200mm; bending radius R150-R400. Material CPS-Amide (PA6+G.F). Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available. Bracket: Free End Bracket (M.FEB). Steel Plate, length and divider/separator made-to-order. Certified CE, ATEX(Ex), RoHS2.
25 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ST095ES.100.R150 | Shift Chain Enclosed Skid ST095ES, inside width 100mm, bending radius R150mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 162mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.100.R200 | Shift Chain Enclosed Skid ST095ES, inside width 100mm, bending radius R200mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 162mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.100.R230 | Shift Chain Enclosed Skid ST095ES, inside width 100mm, bending radius R230mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 162mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.100.R280 | Shift Chain Enclosed Skid ST095ES, inside width 100mm, bending radius R280mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 162mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.100.R400 | Shift Chain Enclosed Skid ST095ES, inside width 100mm, bending radius R400mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 162mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.125.R150 | Shift Chain Enclosed Skid ST095ES, inside width 125mm, bending radius R150mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 187mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.41 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.125.R200 | Shift Chain Enclosed Skid ST095ES, inside width 125mm, bending radius R200mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 187mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.41 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.125.R230 | Shift Chain Enclosed Skid ST095ES, inside width 125mm, bending radius R230mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 187mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.41 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.125.R280 | Shift Chain Enclosed Skid ST095ES, inside width 125mm, bending radius R280mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 187mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.41 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.125.R400 | Shift Chain Enclosed Skid ST095ES, inside width 125mm, bending radius R400mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 187mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.41 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.150.R150 | Shift Chain Enclosed Skid ST095ES, inside width 150mm, bending radius R150mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 212mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.65 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.150.R200 | Shift Chain Enclosed Skid ST095ES, inside width 150mm, bending radius R200mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 212mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.65 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.150.R230 | Shift Chain Enclosed Skid ST095ES, inside width 150mm, bending radius R230mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 212mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.65 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.150.R280 | Shift Chain Enclosed Skid ST095ES, inside width 150mm, bending radius R280mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 212mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.65 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.150.R400 | Shift Chain Enclosed Skid ST095ES, inside width 150mm, bending radius R400mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 212mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.65 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.175.R150 | Shift Chain Enclosed Skid ST095ES, inside width 175mm, bending radius R150mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 237mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.90 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.175.R200 | Shift Chain Enclosed Skid ST095ES, inside width 175mm, bending radius R200mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 237mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.90 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.175.R230 | Shift Chain Enclosed Skid ST095ES, inside width 175mm, bending radius R230mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 237mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.90 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.175.R280 | Shift Chain Enclosed Skid ST095ES, inside width 175mm, bending radius R280mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 237mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.90 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.175.R400 | Shift Chain Enclosed Skid ST095ES, inside width 175mm, bending radius R400mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 237mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.90 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.200.R150 | Shift Chain Enclosed Skid ST095ES, inside width 200mm, bending radius R150mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 262mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 5.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.200.R200 | Shift Chain Enclosed Skid ST095ES, inside width 200mm, bending radius R200mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 262mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 5.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.200.R230 | Shift Chain Enclosed Skid ST095ES, inside width 200mm, bending radius R230mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 262mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 5.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.200.R280 | Shift Chain Enclosed Skid ST095ES, inside width 200mm, bending radius R280mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 262mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 5.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095ES.200.R400 | Shift Chain Enclosed Skid ST095ES, inside width 200mm, bending radius R400mm | CP SYSTEM | Model: ST095ES | Type: Enclosed Skid (ES) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 262mm | Outer Height (B): 89mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 5.15 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 |
