Center Drills
DWC

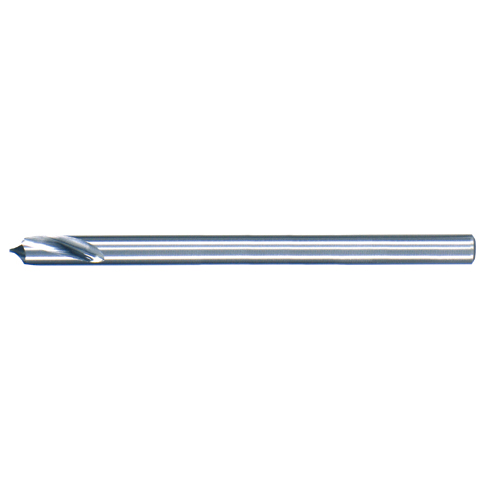

[DWC] — NC03H5-040 Long NC Drill
Family ID: 338-0660
DWC NC03H5-040 Long NC Drill is a long-series numerical control center drill designed for precise hole initiation in CNC machining operations, sourced direct from Korea. Long NC drills of this type are commonly used in automated machining centers where extended reach is needed to spot, center, or start holes accurately in metal workpieces before full drilling or boring. Request a quote today to secure export-ready supply of this cutting tool at competitive pricing through a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 338-0660 | NC03H5-040 | DWC | 4.0-100MM | Spec: 4.0 | Cutting Length: 12 | Overall Length: 100 | ||
| 338-0679 | NC03H5-050 | DWC | 5.0-120MM | Spec: 5.0 | Cutting Length: 15 | Overall Length: 120 | ||
| 338-0688 | NC03H5-060 | DWC | 6.0-140MM | Spec: 6.0 | Cutting Length: 20 | Overall Length: 140 | ||
| 338-0697 | NC03H5-080 | DWC | 8.0-140MM | Spec: 8.0 | Cutting Length: 25 | Overall Length: 140 | ||
| 338-0703 | NC03H5-100 | DWC | 10.0-170MM | Spec: 10.0 | Cutting Length: 25 | Overall Length: 170 | ||
| 338-0721 | NC03H5-120 | DWC | 12.0-170MM | Spec: 12.0 | Cutting Length: 30 | Overall Length: 170 | ||
| 338-0749 | NC03H5-160 | DWC | 16.0-200MM | Spec: 16.0 | Cutting Length: 35 | Overall Length: 200 | ||
| 338-0758 | NC03H5-200 | DWC | 20.0-200MM | Spec: 20.0 | Cutting Length: 40 | Overall Length: 200 |
