![[Sangshin] — GEM 700015 Center Drill](https://img.prosourcemro.com/2026/05/1219645-1.jpg)
Center Drills
Sangshin

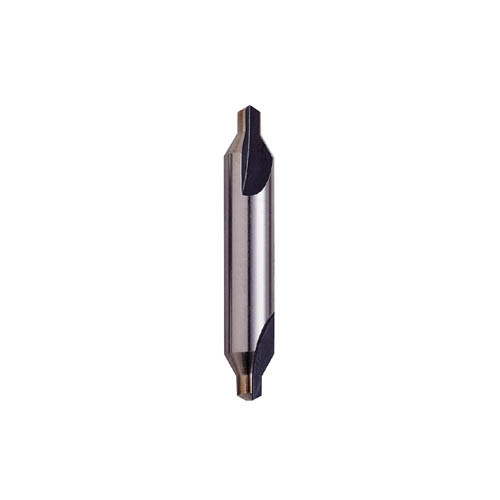

[Sangshin] — GEM 700015 Center Drill
Family ID: 335-6645
The Sangshin GEM 700015 Center Drill is a precision cutting tool designed to create accurate starting points for drilling operations, sourced direct from Korea. Center drills are a standard fixture in metal machining shops, used to produce conical guide holes that ensure subsequent drill bits track true and reduce workpiece runout on lathes and milling machines. Request a quote today for export-ready supply of this cutting tool at competitive pricing, fulfilled by a KITA-registered Korean exporter.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 335-6645 | GEM 700015 | Sangshin | 1.5MM*6 | Spec: 1.5 | Overall Length: 50 | Shank Diameter: 6 | ||
| 335-6654 | GEM 700100 | Sangshin | 10.0MM*18 | Spec: 10.0 | Overall Length: 90 | Shank Diameter: 18 | ||
| 335-6663 | GEM 700030 | Sangshin | 3.0MM*8 | Spec: 3.0 | Overall Length: 55 | Shank Diameter: 8 | ||
| 335-6681 | GEM 700040 | Sangshin | 4.0MM*8 | Spec: 4.0 | Overall Length: 55 | Shank Diameter: 8 | ||
| 335-6690 | GEM 700050 | Sangshin | 5.0MM*10 | Spec: 5.0 | Overall Length: 65 | Shank Diameter: 10 | ||
| 335-6706 | GEM 700060 | Sangshin | 6.0MM*12 | Spec: 6.0 | Overall Length: 70 | Shank Diameter: 12 | ||
| 335-6715 | GEM 700080 | Sangshin | 8.0MM*16 | Spec: 8.0 | Overall Length: 80 | Shank Diameter: 16 | ||
| 335-6724 | GEM 700010 | Sangshin | 1.0MM*6 | Spec: 1.0 | Overall Length: 50 | Shank Diameter: 6 | ||
| 335-6760 | GEM 700120 | Sangshin | 12.0MM*20 | Spec: 12.0 | Overall Length: 95 | Shank Diameter: 20 | ||
| 335-6779 | GEM 700020 | Sangshin | 2.0MM*6 | Spec: 2.0 | Overall Length: 50 | Shank Diameter: 6 | ||
| 335-6788 | GEM 700250 | Sangshin | 2.5MM*6 | Spec: 2.5 | Overall Length: 50 | Shank Diameter: 6 |
