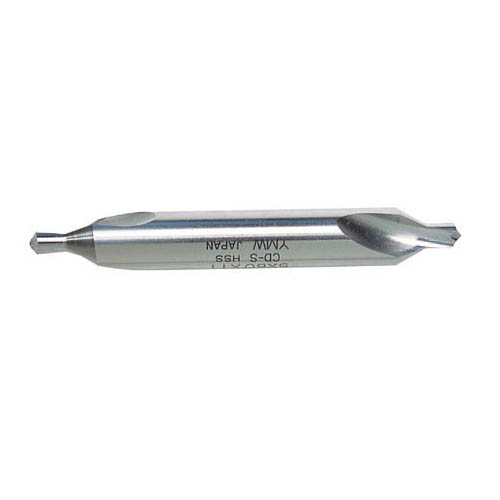

[Yamawa] — CD-S 0.5*3.5 Center Drill

Family ID: 328-1235

Yamawa CD-S 0.5*3.5 Center Drill is a precision center drilling tool designed to create accurate starting points for subsequent drilling or turning operations, sourced direct from Korea. Center drills like this are widely used by machinists and CNC operators to produce conical seat holes that locate and support workpieces between lathe centers or guide twist drills without wandering. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

11 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
328-1235	CD-S 0.5*3.5	Yamawa	0.5MM*3.5 (60°) Type A \| Spec: 0.5 \| Overall Length: 35 \| Shank Diameter: 3.5
328-1244	CD-S 0.8*3.5	Yamawa	0.8MM*3.5 (60°) Type A \| Spec: 0.8 \| Overall Length: 35 \| Shank Diameter: 3.5
328-1253	CD-S 1.0*4	Yamawa	1.0MM*4 (60°) Type A \| Spec: 1.0 \| Overall Length: 35 \| Shank Diameter: 4.0
328-1262	CD-S 1.5*5	Yamawa	1.5MM*5 (60°) Type A \| Spec: 1.5 \| Overall Length: 40 \| Shank Diameter: 5.0
328-1280	CD-S 2.0*6	Yamawa	2.0MM*6 (60°) Type A \| Spec: 2.0 \| Overall Length: 45 \| Shank Diameter: 6.0
328-1305	CD-S 2.5*7.7	Yamawa	2.5MM*7.7 (60°) Type A \| Spec: 2.5 \| Overall Length: 50 \| Shank Diameter: 7.7
328-1314	CD-S 3.0*7.7	Yamawa	3.0MM*7.7 (60°) Type A \| Spec: 3.0 \| Overall Length: 55 \| Shank Diameter: 7.7
328-1323	CD-S 3.0*8	Yamawa	3.0MM*8 (60°) Type A \| Spec: 3.0 \| Overall Length: 55 \| Shank Diameter: 8.0
328-1341	CD-S 4.0*10	Yamawa	4.0MM*10 (60°) Type A \| Spec: 4.0 \| Overall Length: 65 \| Shank Diameter: 10.0
328-1350	CD-S 5.0*11	Yamawa	5.0MM*11 (60°) Type A \| Spec: 5.0 \| Overall Length: 78 \| Shank Diameter: 11.0
328-1369	CD-S 6.0*18	Yamawa	6.0MM*18 (60°) Type A \| Spec: 6.0 \| Overall Length: 90 \| Shank Diameter: 18.0
