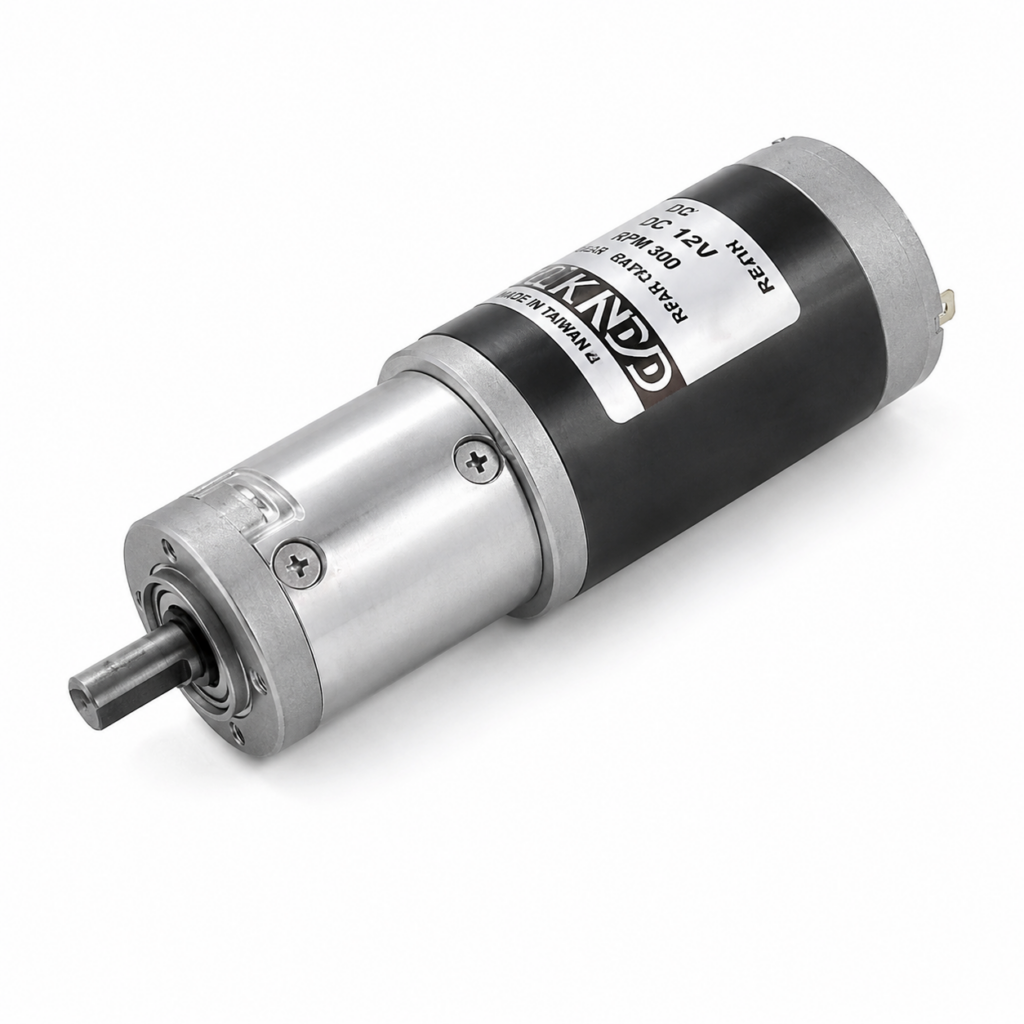

[GGM] — K52-K6DS25N Series DC Planetary Geared Motor (ø52mm, 12/24V, 1/3–1/936)
DC GGM

[GGM] — K52-K6DS25N Series DC Planetary Geared Motor (ø52mm, 12/24V, 1/3–1/936)

Family ID: GGM-K52-K6DS25N

GGM K52-K6DS25N DC planetary geared motor, ø52mm frame, ø12mm shaft, 4-M5 flange (PCD ø40). Two windings (12V/24V), 23 planetary ratios 1/3 to 1/936; 840g.

46 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K52-0003-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/3, 1000 rpm / 1.9 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/3 | Output Speed (max eff.): 1000 rpm | Output Torque (max eff.): 1.9 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 47 mm | Type: DC planetary geared motor
K52-0004-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/4, 750 rpm / 2.5 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/4 | Output Speed (max eff.): 750 rpm | Output Torque (max eff.): 2.5 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 47 mm | Type: DC planetary geared motor
K52-0012-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/12, 250 rpm / 6.1 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/12 | Output Speed (max eff.): 250 rpm | Output Torque (max eff.): 6.1 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0015-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/15, 200 rpm / 7.7 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/15 | Output Speed (max eff.): 200 rpm | Output Torque (max eff.): 7.7 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0019-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/19, 158 rpm / 9.7 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/19 | Output Speed (max eff.): 158 rpm | Output Torque (max eff.): 9.7 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0021-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/21, 143 rpm / 10.7 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/21 | Output Speed (max eff.): 143 rpm | Output Torque (max eff.): 10.7 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0026-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/26, 115 rpm / 13.3 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/26 | Output Speed (max eff.): 115 rpm | Output Torque (max eff.): 13.3 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0043-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/43, 70 rpm / 17.6 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/43 | Output Speed (max eff.): 70 rpm | Output Torque (max eff.): 17.6 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0053-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/53, 57 rpm / 21.7 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/53 | Output Speed (max eff.): 57 rpm | Output Torque (max eff.): 21.7 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0066-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/66, 45 rpm / 27 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/66 | Output Speed (max eff.): 45 rpm | Output Torque (max eff.): 27 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0081-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/81, 37 rpm / 33 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/81 | Output Speed (max eff.): 37 rpm | Output Torque (max eff.): 33 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0100-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/100, 30 rpm / 41 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/100 | Output Speed (max eff.): 30 rpm | Output Torque (max eff.): 41 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0113-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/113, 26.5 rpm / 46 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/113 | Output Speed (max eff.): 26.5 rpm | Output Torque (max eff.): 46 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0126-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/126, 23.8 rpm / 50 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/126 | Output Speed (max eff.): 23.8 rpm | Output Torque (max eff.): 50 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0150-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/150, 20 rpm / 50 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/150 | Output Speed (max eff.): 20 rpm | Output Torque (max eff.): 50 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0230-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/230, 13 rpm / 75 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/230 | Output Speed (max eff.): 13 rpm | Output Torque (max eff.): 75 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0285-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/285, 10.5 rpm / 93 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/285 | Output Speed (max eff.): 10.5 rpm | Output Torque (max eff.): 93 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0353-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/353, 8.5 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/353 | Output Speed (max eff.): 8.5 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0488-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/488, 6.1 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/488 | Output Speed (max eff.): 6.1 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0546-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/546, 5.5 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/546 | Output Speed (max eff.): 5.5 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0676-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/676, 4.4 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/676 | Output Speed (max eff.): 4.4 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0756-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/756, 4 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/756 | Output Speed (max eff.): 4 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0936-K6DS25N1 GGM K52-K6DS25N DC 12V planetary geared motor, ratio 1/936, 3.2 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N1 | Voltage: DC 12V | Gear Ratio: 1/936 | Output Speed (max eff.): 3.2 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3450 rpm | Stall Torque: 5.9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0003-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/3, 1000 rpm / 1.9 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/3 | Output Speed (max eff.): 1000 rpm | Output Torque (max eff.): 1.9 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 47 mm | Type: DC planetary geared motor
K52-0004-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/4, 750 rpm / 2.5 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/4 | Output Speed (max eff.): 750 rpm | Output Torque (max eff.): 2.5 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 47 mm | Type: DC planetary geared motor
K52-0012-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/12, 250 rpm / 6.1 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/12 | Output Speed (max eff.): 250 rpm | Output Torque (max eff.): 6.1 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0015-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/15, 200 rpm / 7.7 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/15 | Output Speed (max eff.): 200 rpm | Output Torque (max eff.): 7.7 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0019-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/19, 158 rpm / 9.7 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/19 | Output Speed (max eff.): 158 rpm | Output Torque (max eff.): 9.7 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0021-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/21, 143 rpm / 10.7 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/21 | Output Speed (max eff.): 143 rpm | Output Torque (max eff.): 10.7 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0026-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/26, 115 rpm / 13.3 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/26 | Output Speed (max eff.): 115 rpm | Output Torque (max eff.): 13.3 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 62.5 mm | Type: DC planetary geared motor
K52-0043-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/43, 70 rpm / 17.6 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/43 | Output Speed (max eff.): 70 rpm | Output Torque (max eff.): 17.6 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0053-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/53, 57 rpm / 21.7 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/53 | Output Speed (max eff.): 57 rpm | Output Torque (max eff.): 21.7 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0066-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/66, 45 rpm / 27 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/66 | Output Speed (max eff.): 45 rpm | Output Torque (max eff.): 27 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0081-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/81, 37 rpm / 33 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/81 | Output Speed (max eff.): 37 rpm | Output Torque (max eff.): 33 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0100-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/100, 30 rpm / 41 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/100 | Output Speed (max eff.): 30 rpm | Output Torque (max eff.): 41 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0113-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/113, 26.5 rpm / 46 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/113 | Output Speed (max eff.): 26.5 rpm | Output Torque (max eff.): 46 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0126-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/126, 23.8 rpm / 50 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/126 | Output Speed (max eff.): 23.8 rpm | Output Torque (max eff.): 50 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 78 mm | Type: DC planetary geared motor
K52-0150-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/150, 20 rpm / 50 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/150 | Output Speed (max eff.): 20 rpm | Output Torque (max eff.): 50 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0230-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/230, 13 rpm / 75 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/230 | Output Speed (max eff.): 13 rpm | Output Torque (max eff.): 75 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0285-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/285, 10.5 rpm / 93 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/285 | Output Speed (max eff.): 10.5 rpm | Output Torque (max eff.): 93 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0353-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/353, 8.5 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/353 | Output Speed (max eff.): 8.5 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0488-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/488, 6.1 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/488 | Output Speed (max eff.): 6.1 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0546-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/546, 5.5 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/546 | Output Speed (max eff.): 5.5 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0676-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/676, 4.4 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/676 | Output Speed (max eff.): 4.4 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0756-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/756, 4 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/756 | Output Speed (max eff.): 4 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
K52-0936-K6DS25N2 GGM K52-K6DS25N DC 24V planetary geared motor, ratio 1/936, 3.2 rpm / 100 kgf·cm @ max eff. GGM Motor: K6DS25N2 | Voltage: DC 24V | Gear Ratio: 1/936 | Output Speed (max eff.): 3.2 rpm | Output Torque (max eff.): 100 kgf·cm | No-load Speed: 3250 rpm | Stall Torque: 9 kgf·cm | Frame: ø52mm | Output Shaft: ø12mm, 4-M5 flange (PCD ø40) | Gearhead Length L: 93.5 mm | Type: DC planetary geared motor
