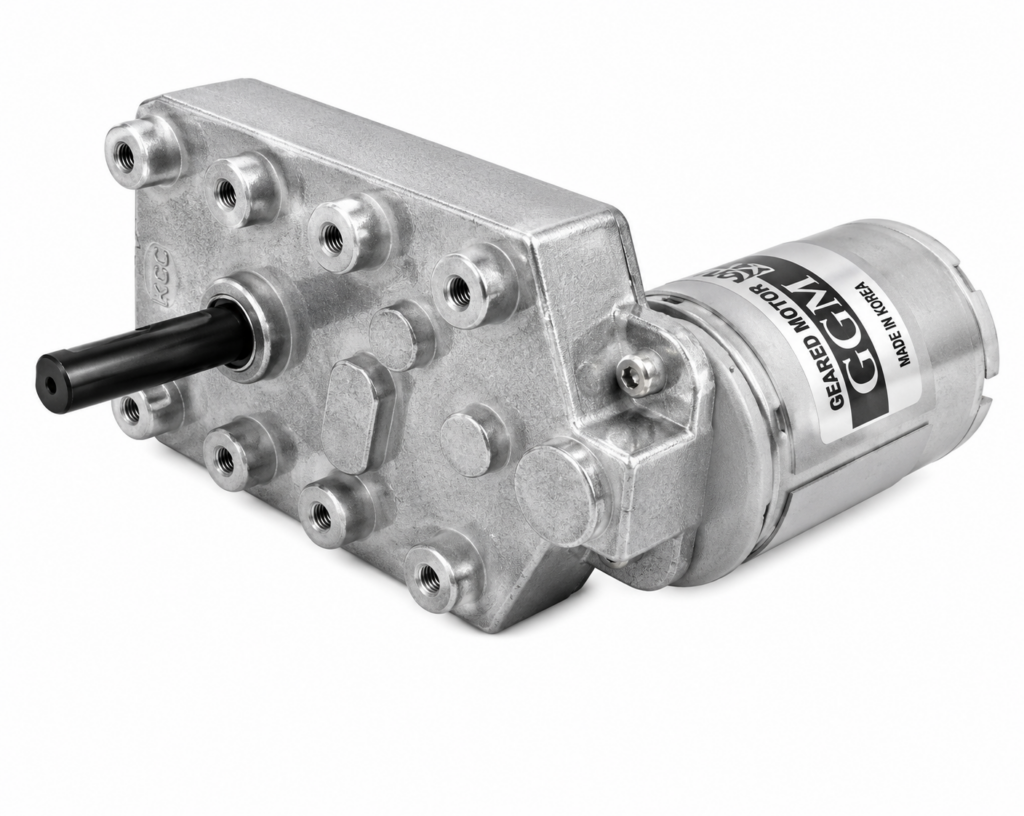

[GGM] — KGE-3657-U1 F-Type Offset Geared DC Motor (DC 12V, 6000rpm base, 18 ratios 1/22-1/687)
Family ID: GGM-KGE3657-U1-F
GGM KGE-3657-U1 f-type offset parallel-shaft geared DC motor, DC 12V (6000 rpm base motor). 18 gear ratios 1/22-1/687, output torque up to 20 kgf·cm, ø8 output shaft, 8-M4 mounting on 56x100.5 housing. F-Type shaft orientation (F-Type is standard). Stall 10 A / 1.6 kgf·cm.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGE-0022-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/22, 227rpm, 3.2kgf·cm | GGM | Gear Ratio: 1/22 | Output Speed: 227 rpm | Output Torque: 3.2 kgf·cm | Shaft Type: F-Type | ||
| KGE-0034-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/34, 147rpm, 4.9kgf·cm | GGM | Gear Ratio: 1/34 | Output Speed: 147 rpm | Output Torque: 4.9 kgf·cm | Shaft Type: F-Type | ||
| KGE-0043-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/43, 116rpm, 6.2kgf·cm | GGM | Gear Ratio: 1/43 | Output Speed: 116 rpm | Output Torque: 6.2 kgf·cm | Shaft Type: F-Type | ||
| KGE-0050-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/50, 100rpm, 7.3kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 100 rpm | Output Torque: 7.3 kgf·cm | Shaft Type: F-Type | ||
| KGE-0062-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/62, 80rpm, 9kgf·cm | GGM | Gear Ratio: 1/62 | Output Speed: 80 rpm | Output Torque: 9 kgf·cm | Shaft Type: F-Type | ||
| KGE-0068-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/68, 73rpm, 9.9kgf·cm | GGM | Gear Ratio: 1/68 | Output Speed: 73 rpm | Output Torque: 9.9 kgf·cm | Shaft Type: F-Type | ||
| KGE-0083-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/83, 60rpm, 12.1kgf·cm | GGM | Gear Ratio: 1/83 | Output Speed: 60 rpm | Output Torque: 12.1 kgf·cm | Shaft Type: F-Type | ||
| KGE-0105-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/105, 47rpm, 15.3kgf·cm | GGM | Gear Ratio: 1/105 | Output Speed: 47 rpm | Output Torque: 15.3 kgf·cm | Shaft Type: F-Type | ||
| KGE-0116-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/116, 43rpm, 16.9kgf·cm | GGM | Gear Ratio: 1/116 | Output Speed: 43 rpm | Output Torque: 16.9 kgf·cm | Shaft Type: F-Type | ||
| KGE-0162-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/162, 30rpm, 20kgf·cm | GGM | Gear Ratio: 1/162 | Output Speed: 30 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0182-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/182, 27rpm, 20kgf·cm | GGM | Gear Ratio: 1/182 | Output Speed: 27 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0204-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/204, 24rpm, 20kgf·cm | GGM | Gear Ratio: 1/204 | Output Speed: 24 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0240-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/240, 20rpm, 20kgf·cm | GGM | Gear Ratio: 1/240 | Output Speed: 20 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0308-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/308, 16.2rpm, 20kgf·cm | GGM | Gear Ratio: 1/308 | Output Speed: 16.2 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0350-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/350, 14.2rpm, 20kgf·cm | GGM | Gear Ratio: 1/350 | Output Speed: 14.2 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0452-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/452, 11rpm, 20kgf·cm | GGM | Gear Ratio: 1/452 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0615-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/615, 8.1rpm, 20kgf·cm | GGM | Gear Ratio: 1/615 | Output Speed: 8.1 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type | ||
| KGE-0687-KD3657U1 | KGE-3657-U1 F-Type offset geared, 1/687, 7.2rpm, 20kgf·cm | GGM | Gear Ratio: 1/687 | Output Speed: 7.2 rpm | Output Torque: 20 kgf·cm | Shaft Type: F-Type |
