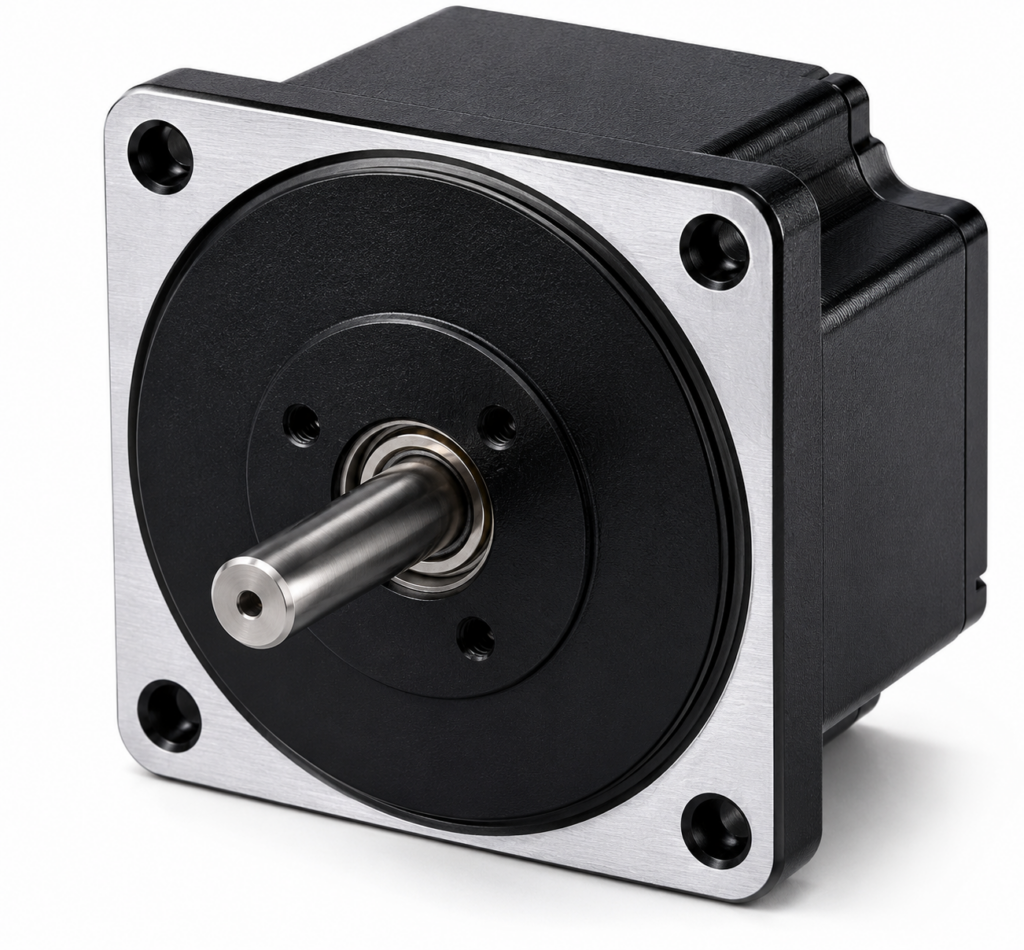

[GGM] — K6B30N Brushless DC Motor Unit 30W (□60mm, Single-phase AC Input, B Series)
Family ID: GGM-K6B30N
GGM K6B30N Brushless DC Motor Unit, 30W, □60mm frame, single-phase AC voltage input. Gear type (pinion shaft for gearhead) and D-cut output shaft, 100~115V (NU) and 200~230V (NC, UL certified E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.1 N·m, starting torque 0.15 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K6BH30NU | 30W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Standard | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.5kg | Option: Standard | UL: No | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NU-B | 30W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Brake | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: No | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NU-E | 30W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.6kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: No | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NU-BE | 30W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Brake + Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: No | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NC | 30W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Standard | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.5kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NC-B | 30W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NC-E | 30W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.6kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BH30NC-BE | 30W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake + Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K6H□B / K6H□BTH gearhead assembly (gearhead sold separately) | ||
| K6BS30NU | 30W BLDC, D-cut type, Single-phase 100~115V, Standard | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.5kg | Option: Standard | UL: No | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NU-B | 30W BLDC, D-cut type, Single-phase 100~115V, Brake | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: No | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NU-E | 30W BLDC, D-cut type, Single-phase 100~115V, Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.6kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: No | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NU-BE | 30W BLDC, D-cut type, Single-phase 100~115V, Brake + Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 2.5A | Rated Output Current: 0.45A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: No | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NC | 30W BLDC, D-cut type, Single-phase 200~230V, Standard | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.5kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NC-B | 30W BLDC, D-cut type, Single-phase 200~230V, Brake | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NC-E | 30W BLDC, D-cut type, Single-phase 200~230V, Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.6kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling | ||
| K6BS30NC-BE | 30W BLDC, D-cut type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 30W | Frame: □60mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 0.6A | Max Input Current: 2.0A | Rated Output Current: 0.35A | Rated Torque: 0.1 N·m | Starting Torque: 0.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø8 (h7), spigot Ø54 (h7), for direct coupling |
