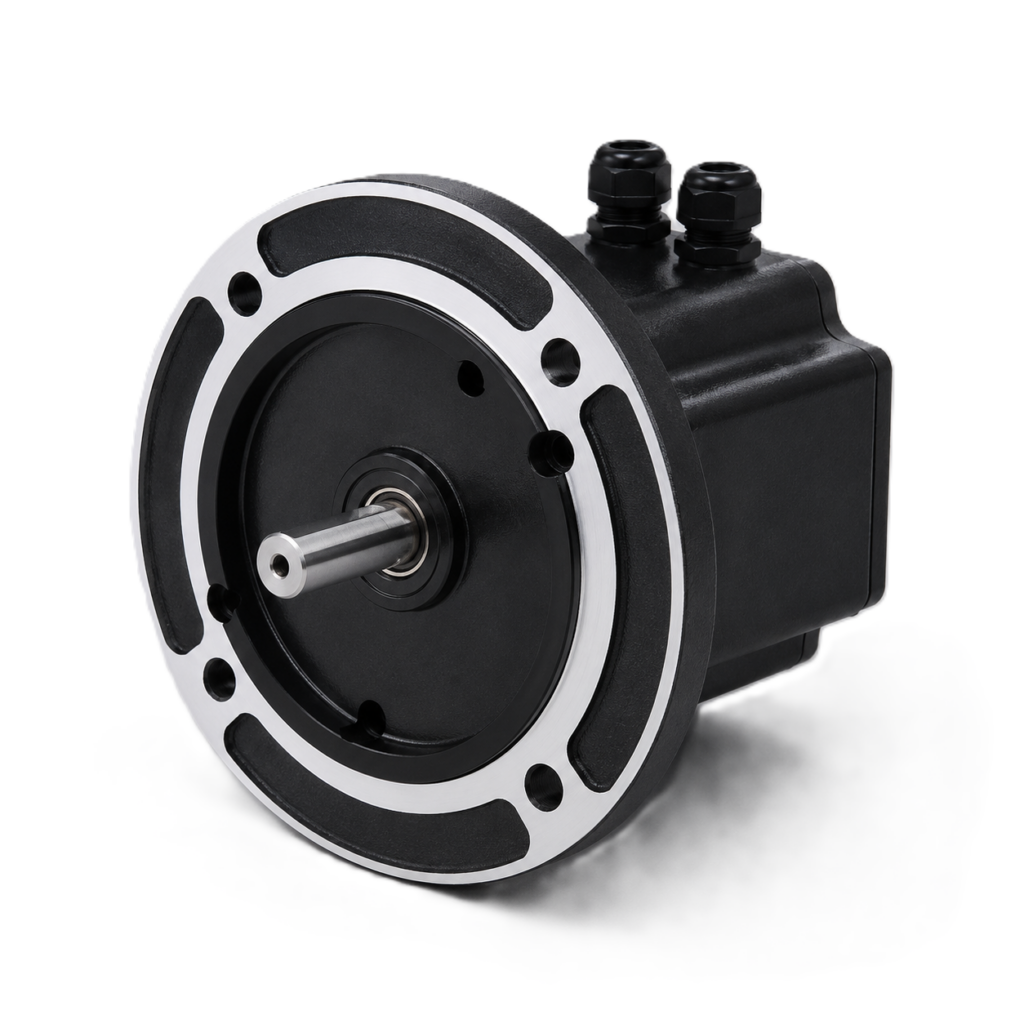

[GGM] — X Series K20X750N9 750W Brushless DC Motor Unit (Ø200 flange / □104mm, DC 48V)
Family ID: GGM-K20X750N9
GGM Brushless DC Motor Unit, X Series (DC voltage input). 750W continuous output, Ø200 flange / □104mm frame, DC 48V input (±10%). Rated speed 3,000 r/min, speed control range 100~3,000 r/min. Rated torque 2.4 N·m, starting torque 3.5 N·m. Key (K) output shaft only. Electromagnetic brake and 1,000PPR line-driver encoder options. Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. IEC type (UL not stated in catalog).
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K20XK750N9 | X Series 750W DC BLDC, Key type, DC 48V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 5.32 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type) | ||
| K20XK750N9-B | X Series 750W DC BLDC, Key type, DC 48V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 5.9 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type) | ||
| K20XK750N9-E | X Series 750W DC BLDC, Key type, DC 48V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 5.4 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type) | ||
| K20XK750N9-BE | X Series 750W DC BLDC, Key type, DC 48V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 6.0 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type) |
