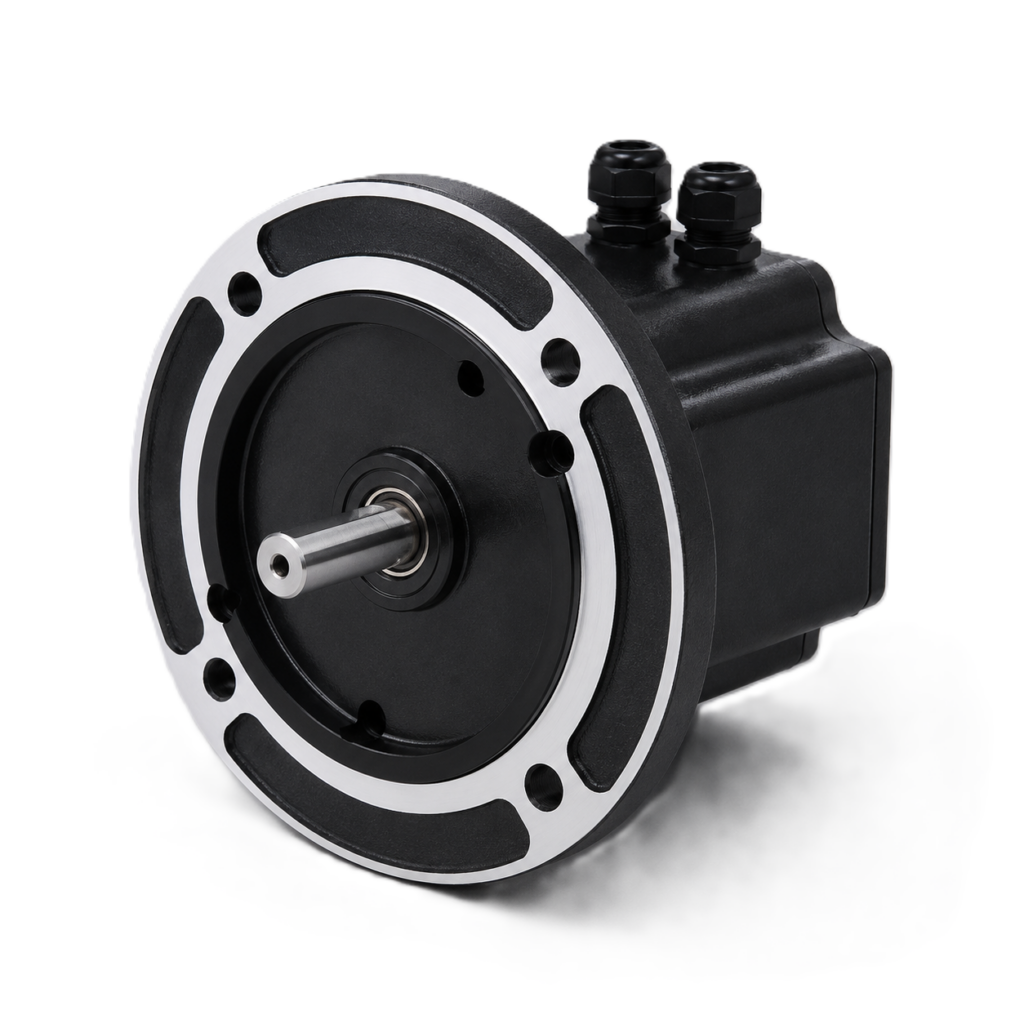

[GGM] — K20B750N Brushless DC Motor Unit 750W (Ø200 Flange / □104mm, Single-phase 200~230V AC Input, IEC, B Series)
Family ID: GGM-K20B750N
GGM K20B750N Brushless DC Motor Unit, 750W, Ø200 round-flange IEC mount (□104mm body), single-phase 200~230V AC voltage input. Key output shaft Ø19 (h7) with 6mm key. Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 2.4 N·m, starting torque 3.5 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K20BK750NC | 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Standard | GGM | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.3kg | Option: Standard | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount | ||
| K20BK750NC-B | 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Brake | GGM | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.9kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount | ||
| K20BK750NC-E | 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Encoder | GGM | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.4kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount | ||
| K20BK750NC-BE | 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Brake + Encoder | GGM | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 6.0kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount |
