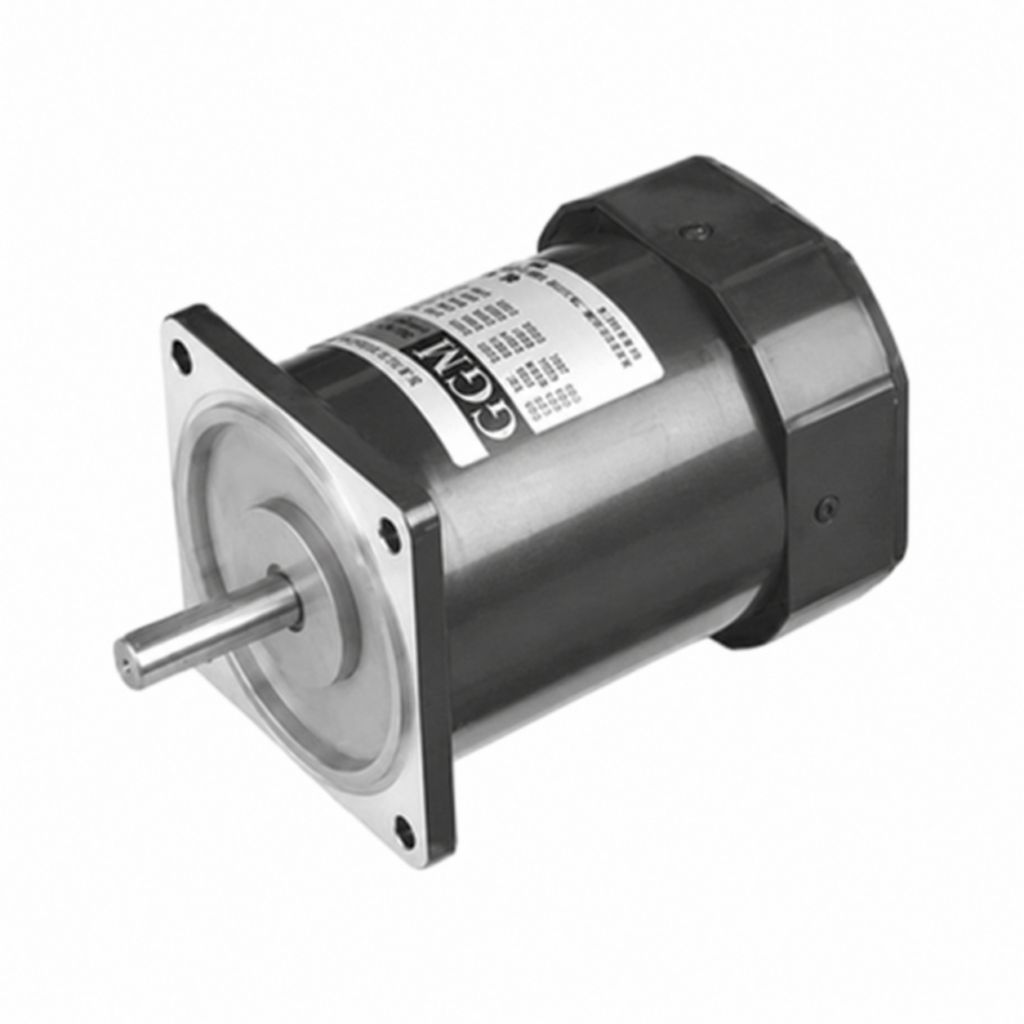

[GGM] — K8I□40F Series 40W Three-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)
AC Geared Motors GGM

[GGM] — K8I□40F Series 40W Three-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

Family ID: GGM-K8I40F-3P

GGM K8I□40F series 40W three-phase AC induction motor. □80mm frame, 4-pole, continuous rating, lead wire (300mm, UL Style 3271 AWG20). Straight (S) and pinion (G) shaft; 220/230V and 380V (50/60Hz). Pinion-shaft type combines with K8G□ gear heads (matching face/teeth). Note: 380V (FM) cannot be used with an inverter (winding insulation damage).

4 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K8IS40FH GGM 40W three-phase AC induction motor K8IS40FH — Straight shaft, 220/230V, lead wire GGM Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.48A, Start 0.97/9.70N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 220V/60Hz: 0.35A, Start 0.71/7.10N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.50A, Start 1.01/10.1N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 230V/60Hz: 0.37A, Start 0.74/7.40N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm
K8IG40FH GGM 40W three-phase AC induction motor K8IG40FH — Pinion (for gear head) shaft, 220/230V, lead wire GGM Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.48A, Start 0.97/9.70N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 220V/60Hz: 0.35A, Start 0.71/7.10N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.50A, Start 1.01/10.1N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 230V/60Hz: 0.37A, Start 0.74/7.40N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm
K8IS40FM GGM 40W three-phase AC induction motor K8IS40FM — Straight shaft, 380V, lead wire GGM Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 380V | Operating Points: 380V/50Hz: 0.26A, Start 0.76/7.60N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 380V/60Hz: 0.20A, Start 0.66/6.60N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm | Caution: 380V 3-phase: not for inverter use (winding insulation damage)
K8IG40FM GGM 40W three-phase AC induction motor K8IG40FM — Pinion (for gear head) shaft, 380V, lead wire GGM Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 380V | Operating Points: 380V/50Hz: 0.26A, Start 0.76/7.60N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 380V/60Hz: 0.20A, Start 0.66/6.60N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm | Caution: 380V 3-phase: not for inverter use (winding insulation damage)
