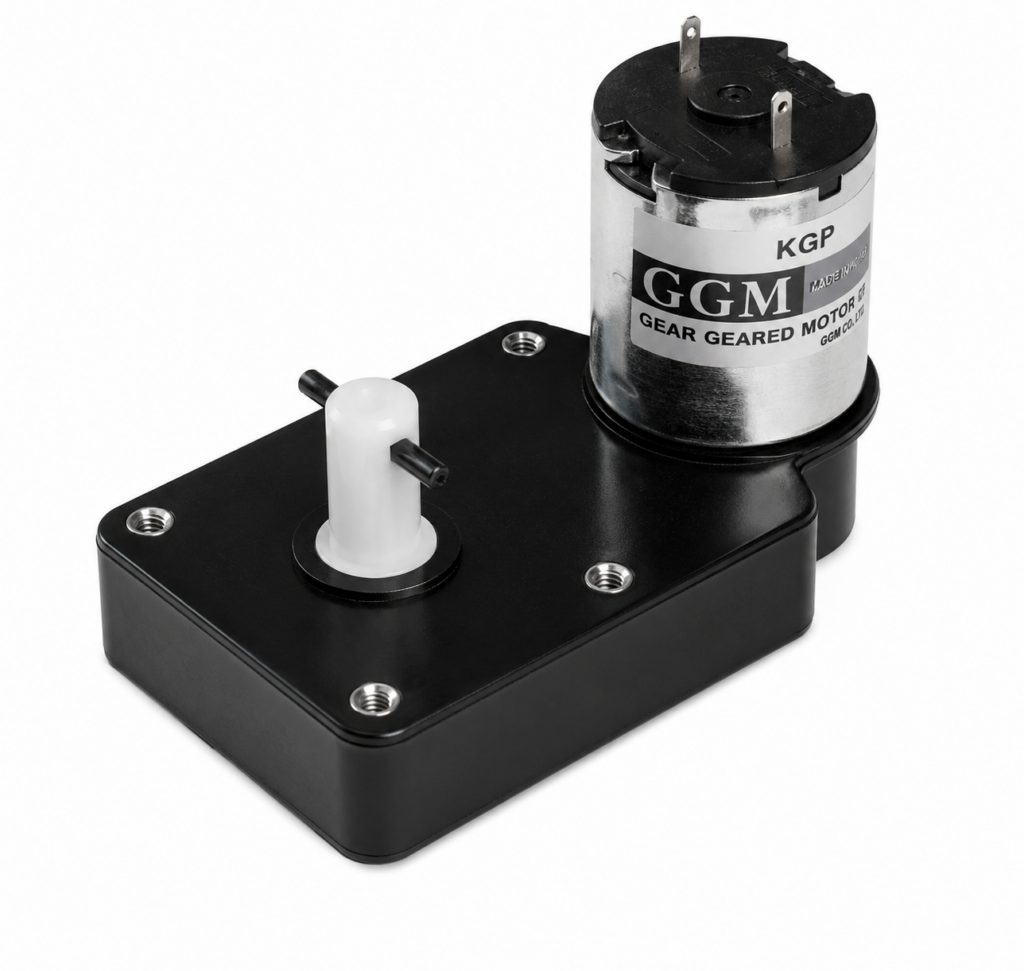

[GGM] — KGP-3448-S2 Insert Geared DC Motor (DC 24V, 5200rpm base, 2 ratios 1/62-1/116)
Family ID: GGM-KGPIN3448-S2
GGM KGP-3448-S2 insert-mount geared DC motor, DC 24V (5200 rpm base motor). 2 gear ratios 1/62-1/116, output torque up to 6 kgf·cm, ø11 output bore with ø3 spring pin, 4-M4 nut-insert mounting. Output rotation same as motor.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGP-0062-KD3448S2-IN | KGP-3448-S2 Insert geared, 1/62, 72.6rpm, 3.2kgf·cm | GGM | Gear Ratio: 1/62 | Output Speed: 72.6 rpm | Output Torque: 3.2 kgf·cm | Mount/Output: Insert (4-M4 nut), ø11 bore | ||
| KGP-0116-KD3448S2-IN | KGP-3448-S2 Insert geared, 1/116, 38.8rpm, 6kgf·cm | GGM | Gear Ratio: 1/116 | Output Speed: 38.8 rpm | Output Torque: 6 kgf·cm | Mount/Output: Insert (4-M4 nut), ø11 bore |
