![[GGM] — KGV2-3448 Geared Motor, KD3448P1 (DC 12V, 9 ratios 1/60–1/660, F/R output)](https://img.prosourcemro.com/2026/06/0605-21-1024x802.png)
DC
GGM

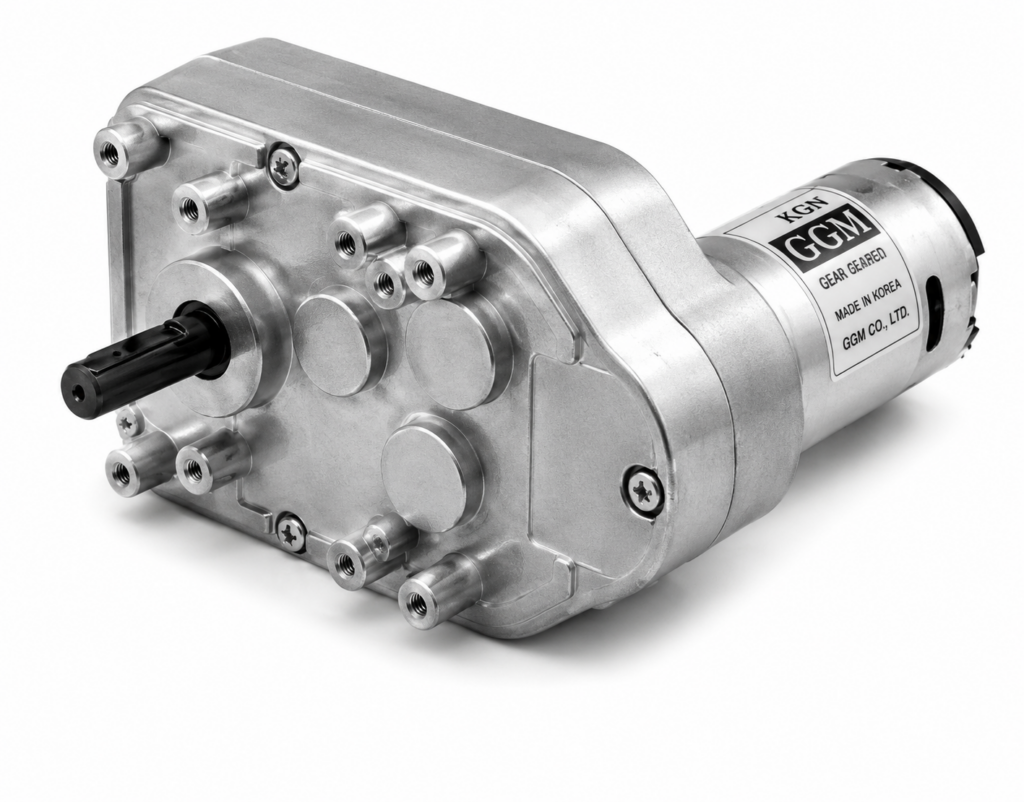

[GGM] — KGV2-3448 Geared Motor, KD3448P1 (DC 12V, 9 ratios 1/60–1/660, F/R output)
Family ID: GGM-KGV2-3448-P1
GGM KGV2-3448 DC geared motor with KD3448P1 brushed motor (DC 12V, no-load 9000 rpm). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGV2-0060-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 133.3 rpm | Output Torque: 2.8 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0060-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 133.3 rpm | Output Torque: 2.8 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0070-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 114.2 rpm | Output Torque: 3.2 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0070-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 114.2 rpm | Output Torque: 3.2 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0090-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 88.8 rpm | Output Torque: 4 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0090-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 88.8 rpm | Output Torque: 4 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0105-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 76 rpm | Output Torque: 4.8 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0105-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 76 rpm | Output Torque: 4.8 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0135-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 59.2 rpm | Output Torque: 5.6 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0135-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 59.2 rpm | Output Torque: 5.6 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0200-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 8.4 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0200-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 40 rpm | Output Torque: 8.4 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0350-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 22.8 rpm | Output Torque: 14.6 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0350-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 22.8 rpm | Output Torque: 14.6 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0500-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0500-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 16 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0660-KD3448P1-F | KGV2-3448 KD3448P1 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 12 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0660-KD3448P1-R | KGV2-3448 KD3448P1 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 12 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |
