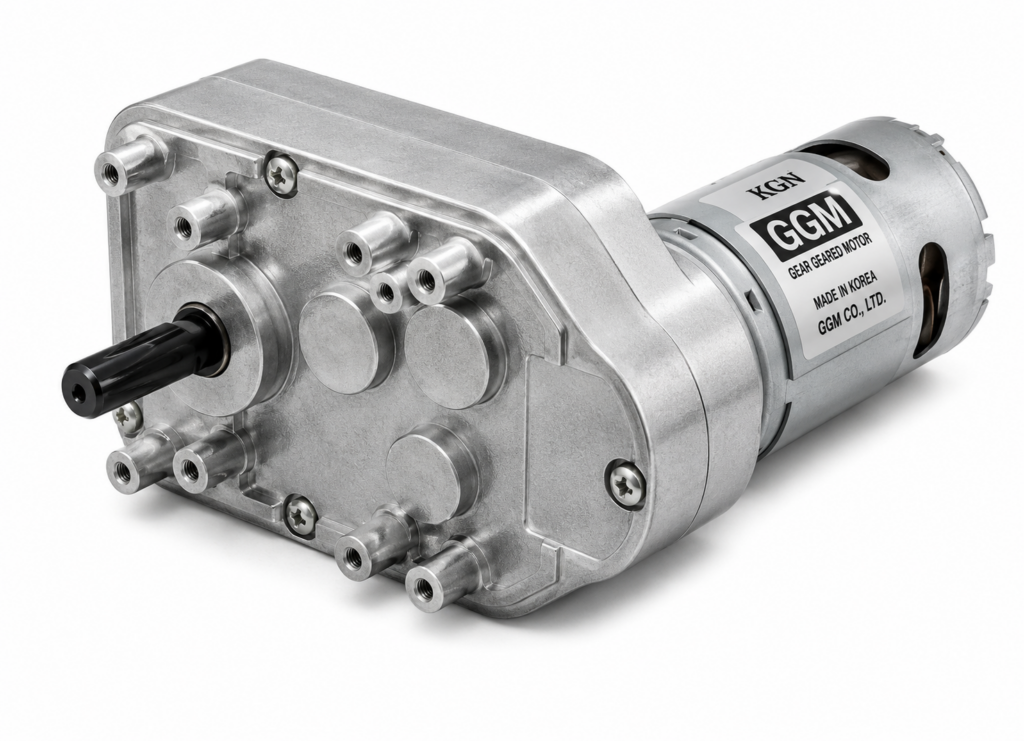

[GGM] — KGV2-4266 Geared Motor, KD4266T2 (DC 24V, 9 ratios 1/60–1/660, F/R output)
Family ID: GGM-KGV2-4266-T2
GGM KGV2-4266 DC geared motor with KD4266T2 ø42 brushed motor (DC 24V, no-load 7000 rpm, 350 g). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGV2-0060-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/60, F-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 98.3 rpm | Output Torque: 18 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0060-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/60, R-TYPE | GGM | Gear Ratio: 1/60 | Output Speed: 98.3 rpm | Output Torque: 18 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0070-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/70, F-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 84.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0070-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/70, R-TYPE | GGM | Gear Ratio: 1/70 | Output Speed: 84.2 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0090-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/90, F-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 65.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0090-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/90, R-TYPE | GGM | Gear Ratio: 1/90 | Output Speed: 65.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0105-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/105, F-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 56 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0105-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/105, R-TYPE | GGM | Gear Ratio: 1/105 | Output Speed: 56 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0135-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/135, F-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 43.7 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0135-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/135, R-TYPE | GGM | Gear Ratio: 1/135 | Output Speed: 43.7 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0200-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/200, F-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 29.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0200-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/200, R-TYPE | GGM | Gear Ratio: 1/200 | Output Speed: 29.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0350-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/350, F-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 16.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0350-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/350, R-TYPE | GGM | Gear Ratio: 1/350 | Output Speed: 16.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0500-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/500, F-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 11.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0500-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/500, R-TYPE | GGM | Gear Ratio: 1/500 | Output Speed: 11.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE | ||
| KGV2-0660-KD4266T2-F | KGV2-4266 KD4266T2 geared motor, 1/660, F-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 8.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE | ||
| KGV2-0660-KD4266T2-R | KGV2-4266 KD4266T2 geared motor, 1/660, R-TYPE | GGM | Gear Ratio: 1/660 | Output Speed: 8.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE |
