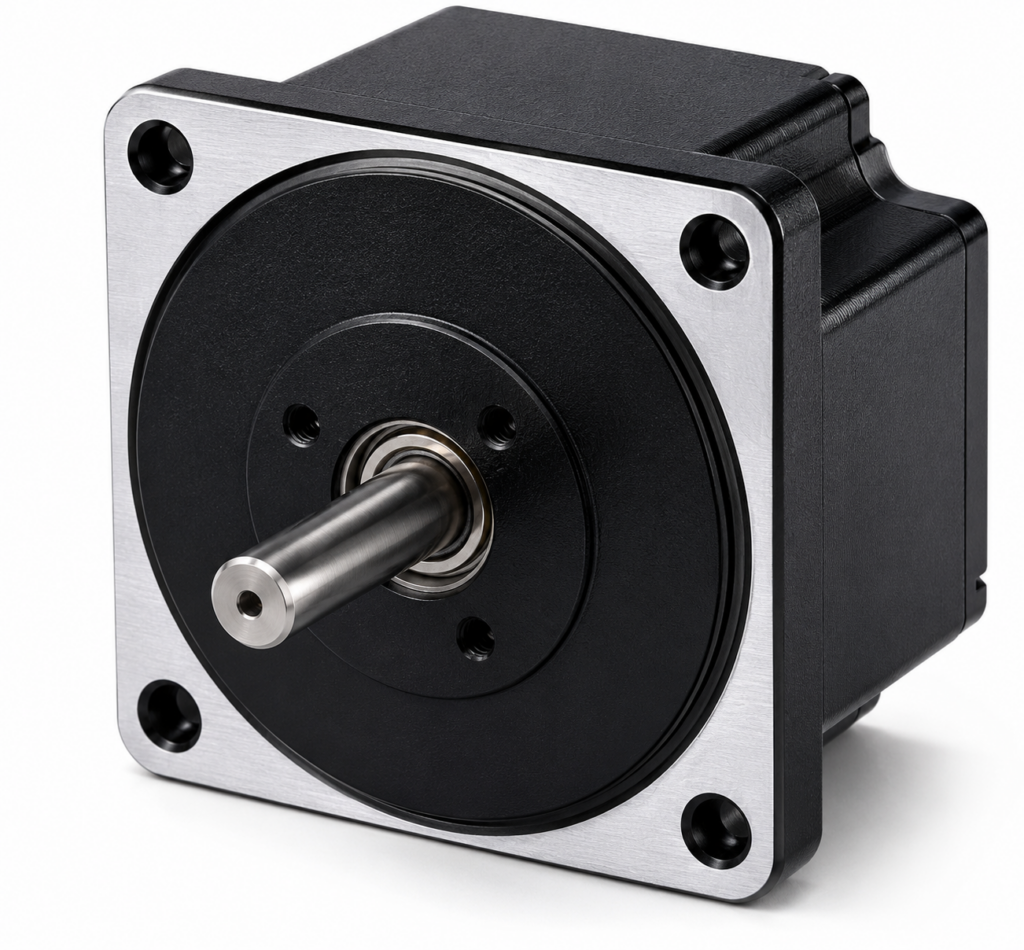

[GGM] — X Series K10X400N9 400W Brushless DC Motor Unit (□104mm, DC 48V)
Family ID: GGM-K10X400N9
GGM Brushless DC Motor Unit, X Series (DC voltage input). 400W continuous output, □104mm frame, DC 48V input (±10%). Rated speed 3,000 r/min, speed control range 100~4,000 r/min. Rated torque 1.3 N·m, starting torque 1.8 N·m. Shaft types: Gear (H) / Straight (S) / Key (K). Electromagnetic brake and 1,000PPR line-driver encoder options. Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. UL certified (E504659).
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K10XH400N9 | X Series 400W DC BLDC, Gear type, DC 48V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659 | ||
| K10XH400N9-B | X Series 400W DC BLDC, Gear type, DC 48V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659 | ||
| K10XH400N9-E | X Series 400W DC BLDC, Gear type, DC 48V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659 | ||
| K10XH400N9-BE | X Series 400W DC BLDC, Gear type, DC 48V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659 | ||
| K10XS400N9 | X Series 400W DC BLDC, Straight type, DC 48V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659 | ||
| K10XS400N9-B | X Series 400W DC BLDC, Straight type, DC 48V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659 | ||
| K10XS400N9-E | X Series 400W DC BLDC, Straight type, DC 48V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659 | ||
| K10XS400N9-BE | X Series 400W DC BLDC, Straight type, DC 48V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659 | ||
| K10XK400N9 | X Series 400W DC BLDC, Key type, DC 48V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659 | ||
| K10XK400N9-B | X Series 400W DC BLDC, Key type, DC 48V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659 | ||
| K10XK400N9-E | X Series 400W DC BLDC, Key type, DC 48V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659 | ||
| K10XK400N9-BE | X Series 400W DC BLDC, Key type, DC 48V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659 |
