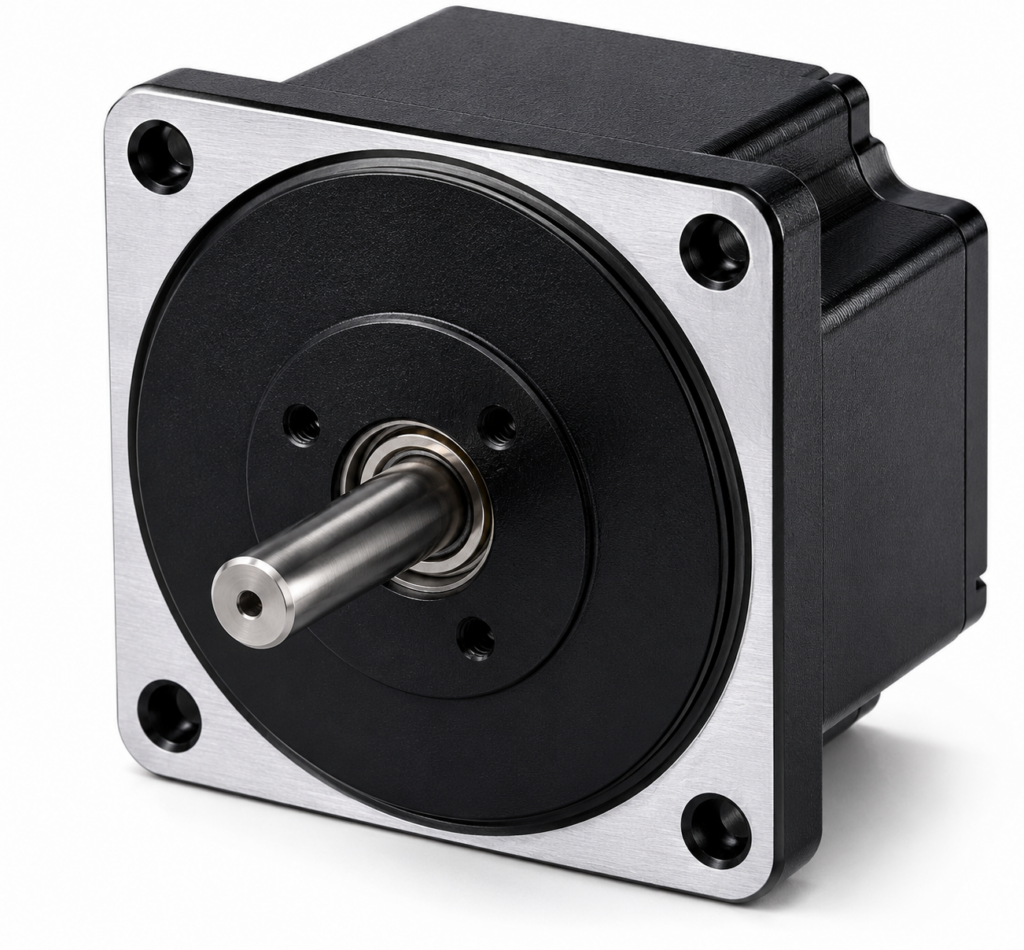

[GGM] — K9F150N Brushless DC Motor Unit 150W (□90mm, Single/Three-phase 200~240V AC Input, F Series)
Family ID: GGM-K9F150N
GGM K9F150N Brushless DC Motor Unit, 150W, □90mm frame. F-Series driver accepts single-phase or three-phase 200~240V AC voltage input (±10%). Gear type (pinion shaft) and D-cut output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.49 N·m, starting torque 0.60 N·m, rated speed 3,000 r/min, speed control 100~4,000 r/min. Insulation class E (120℃), IP65 (except output/mounting parts).
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K9FH150NC | 150W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Standard | GGM | Output: 150W | Frame: □90mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K9H□B / K9H□BTH gearhead assembly (gearhead sold separately) | ||
| K9FH150NC-B | 150W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake | GGM | Output: 150W | Frame: □90mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.9kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K9H□B / K9H□BTH gearhead assembly (gearhead sold separately) | ||
| K9FH150NC-E | 150W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Encoder | GGM | Output: 150W | Frame: □90mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K9H□B / K9H□BTH gearhead assembly (gearhead sold separately) | ||
| K9FH150NC-BE | 150W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake + Encoder | GGM | Output: 150W | Frame: □90mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.0kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K9H□B / K9H□BTH gearhead assembly (gearhead sold separately) | ||
| K9FS150NC | 150W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Standard | GGM | Output: 150W | Frame: □90mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø12 (h7), spigot Ø83 (h7), for direct coupling | ||
| K9FS150NC-B | 150W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake | GGM | Output: 150W | Frame: □90mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.9kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø12 (h7), spigot Ø83 (h7), for direct coupling | ||
| K9FS150NC-E | 150W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Encoder | GGM | Output: 150W | Frame: □90mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø12 (h7), spigot Ø83 (h7), for direct coupling | ||
| K9FS150NC-BE | 150W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake + Encoder | GGM | Output: 150W | Frame: □90mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 2.0A (single-phase) / 1.2A (three-phase) | Max Input Current: 4.5A (single-phase) / 2.6A (three-phase) | Rated Output Current: 0.95A | Rated Torque: 0.49 N·m | Starting Torque: 0.60 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.0kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø12 (h7), spigot Ø83 (h7), for direct coupling |
