Chains & Wires
KBC

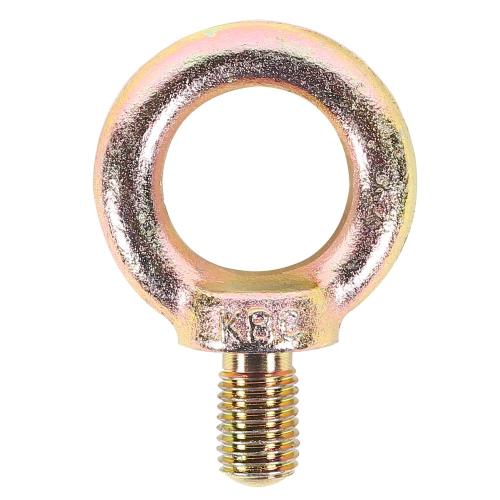

[KBC] — 560-1080 Eye Bolt
Family ID: 560-1080
The KBC 560-1080 Eye Bolt is a looped fastener designed for lifting, rigging, and load-securing applications, sourced direct from Korea. Eye bolts of this type are commonly used in industrial facilities, construction sites, and warehouses to attach lifting hardware such as hooks, shackles, and chains to machinery, structures, or heavy loads. Request a quote today for export-ready supply at competitive pricing, fulfilled by a KITA-registered Korean exporter.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-1080 | — | KBC | 6mm | Spec: 6 | Weight: 0.02 | L: 14.0 | Safe Working Load: 0.04 | A: 25.0 | C: 5.0 | D: 13.0 | H: 27.0 | B: 15.0 | ||
| 560-1099 | — | KBC | 8mm | Spec: 8 | Weight: 0.04 | L: 15.0 | Safe Working Load: 0.08 | A: 32.6 | C: 6.3 | D: 16.0 | H: 33.3 | B: 20.0 | ||
| 560-1105 | — | KBC | 10mm | Spec: 10 | Weight: 0.07 | L: 18.0 | Safe Working Load: 0.15 | A: 41.0 | C: 8.0 | D: 20.0 | H: 41.5 | B: 25.0 | ||
| 560-1114 | — | KBC | 12mm | Spec: 12 | Weight: 0.14 | L: 22.0 | Safe Working Load: 0.22 | A: 50.0 | C: 10.0 | D: 25.0 | H: 51.0 | B: 30.0 | ||
| 560-1123 | — | KBC | 14mm | Spec: 14 | Weight: 0.21 | L: 26.0 | Safe Working Load: 0.40 | A: 60.0 | C: 13.0 | D: 30.0 | H: 60.0 | B: 30.0 | ||
| 560-1132 | — | KBC | 16mm | Spec: 16 | Weight: 0.26 | L: 27.0 | Safe Working Load: 0.45 | A: 60.0 | C: 12.5 | D: 30.0 | H: 60.0 | B: 35.0 | ||
| 560-1141 | — | KBC | 18mm | Spec: 18 | Weight: 0.39 | L: 30.0 | Safe Working Load: 0.55 | A: 72.0 | C: 17.1 | D: 34.7 | H: 71.0 | B: 39.0 | ||
| 560-1150 | — | KBC | 20mm | Spec: 20 | Weight: 0.43 | L: 30.0 | Safe Working Load: 0.63 | A: 72.0 | C: 16.0 | D: 35.0 | H: 71.0 | B: 40.0 | ||
| 560-1169 | — | KBC | 22mm | Spec: 22 | Weight: 0.75 | L: 38.0 | Safe Working Load: 0.70 | A: 90.0 | C: 20.0 | D: 45.0 | H: 90.0 | B: 50.0 | ||
| 560-1178 | — | KBC | 24mm | Spec: 24 | Weight: 0.85 | L: 38.0 | Safe Working Load: 0.95 | A: 90.0 | C: 20.0 | D: 45.0 | H: 90.0 | B: 50.0 | ||
| 560-1743 | — | KBC | 30mm | Spec: 30 | Weight: 1.70 | L: 45.0 | Safe Working Load: 1.50 | A: 110.0 | C: 25.0 | D: 60.0 | H: 110.0 | B: 60.0 |
