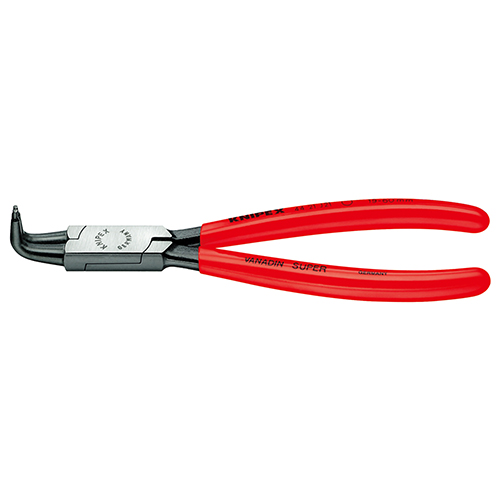

KNIPEX — Circlip Plier 44 21 Series (Internal 90°)
Family ID: 215-6312
KNIPEX 44 21 series circlip plier for internal rings — 90° tip. For fitting snap rings in bore holes 8–140mm. Non-slip 90° tip. Chrome vanadium steel. Oil hardened. Available: 44 21 J01 SB (8–13mm) / 44 21 J11 SB (12–25mm) / 44 21 J21 SB (19–60mm) / 44 21 J31 SB (40–100mm) / 44 21 J41 SB (85–140mm). Origin: Germany.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-6312 | Internal circlip plier, 90° tip. For snap rings in bore holes. | KNIPEX | Model: 44 21 J01 SB | Length: 130mm | Tip: 0.9mm | Range: 8–13mm | ||
| 215-7700 | Internal circlip plier, 90° tip. For snap rings in bore holes. | KNIPEX | Model: 44 21 J11 SB | Length: 130mm | Tip: 1.3mm | Range: 12–25mm | ||
| 215-6321 | Internal circlip plier, 90° tip. For snap rings in bore holes. | KNIPEX | Model: 44 21 J21 SB | Length: 170mm | Tip: 1.8mm | Range: 19–60mm | ||
| 215-6330 | Internal circlip plier, 90° tip. For snap rings in bore holes. | KNIPEX | Model: 44 21 J31 SB | Length: 215mm | Tip: 2.3mm | Range: 40–100mm | ||
| 215-6349 | Internal circlip plier, 90° tip. For snap rings in bore holes. | KNIPEX | Model: 44 21 J41 SB | Length: 300mm | Tip: 3.2mm | Range: 85–140mm |
