Snap Ring
KNIPEX

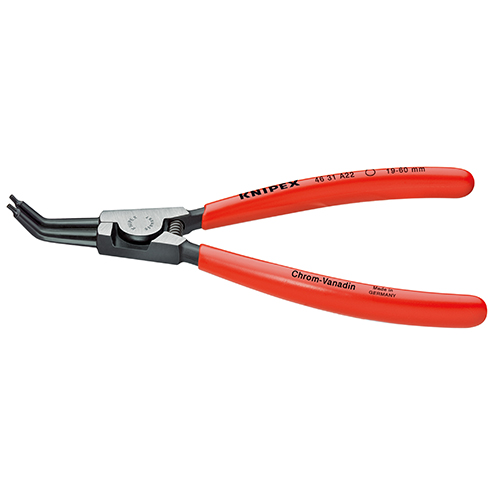

KNIPEX — Circlip Plier 46 31 Series (External 45°)
Family ID: 215-6473
KNIPEX 46 31 series circlip plier for external rings — 45° tip. For inserting snap rings on shafts. Non-slip 45° tip. Chrome vanadium steel. Oil hardened. Available: 46 31 A02 (3–10mm) / 46 31 A22 (19–60mm) / 46 31 A32 (40–100mm) / 46 31 A42 (85–140mm). Origin: Germany.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 215-6473 | External circlip plier, 45° tip. For snap rings on shafts. | KNIPEX | Model: 46 31 A02 | Length: 130mm | Tip: 0.9mm | Range: 3–10mm | ||
| 215-6482 | External circlip plier, 45° tip. For snap rings on shafts. | KNIPEX | Model: 46 31 A22 | Length: 185mm | Tip: 1.8mm | Range: 19–60mm | ||
| 215-6491 | External circlip plier, 45° tip. For snap rings on shafts. | KNIPEX | Model: 46 31 A32 | Length: 210mm | Tip: 2.3mm | Range: 40–100mm | ||
| 215-6507 | External circlip plier, 45° tip. For snap rings on shafts. | KNIPEX | Model: 46 31 A42 | Length: 310mm | Tip: 3.2mm | Range: 85–140mm |
