![[LS ELECTRIC] — TS100Hi Susol Smart MCCB (High, 85kA @ 415V)](https://img.prosourcemro.com/2026/04/001-1499.png)
Molded Case Circuit Breakers
LS ELECTRIC

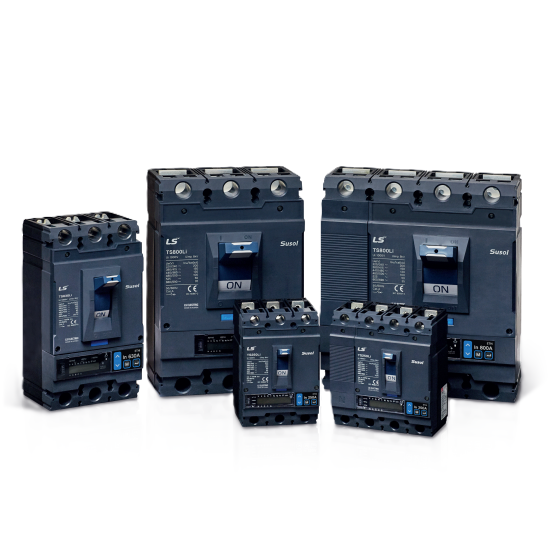

[LS ELECTRIC] — TS100Hi Susol Smart MCCB (High, 85kA @ 415V)
Family ID: LSE-TS100Hi
LS ELECTRIC Susol Smart MCCB TS100Hi family. Frame: 100AF | Rated current: 40A, 100A | Icu @ 415V AC: 85kA | Trip units: ETSi / ETMi / ETHi / ETLi (LSIG protection) | Pole: 3P / 4P (N-arrangement L or R) | Standard: IEC 60947-2 | 24 variants available — see RFQ table for specific MPN.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| TS100Hi-ETSi-40A-3P | Susol Smart MCCB TS100Hi — 40A ETSi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETSi (Standard) | Trip features: LSIG protection, current metering | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETSi-40A-4PL | Susol Smart MCCB TS100Hi — 40A ETSi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETSi (Standard) | Trip features: LSIG protection, current metering | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETSi-40A-4PR | Susol Smart MCCB TS100Hi — 40A ETSi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETSi (Standard) | Trip features: LSIG protection, current metering | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETMi-40A-3P | Susol Smart MCCB TS100Hi — 40A ETMi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETMi (Multi-Function) | Trip features: LSIG protection, current metering, RS485 communication | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETMi-40A-4PL | Susol Smart MCCB TS100Hi — 40A ETMi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETMi (Multi-Function) | Trip features: LSIG protection, current metering, RS485 communication | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETMi-40A-4PR | Susol Smart MCCB TS100Hi — 40A ETMi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETMi (Multi-Function) | Trip features: LSIG protection, current metering, RS485 communication | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETHi-40A-3P | Susol Smart MCCB TS100Hi — 40A ETHi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETHi (High-Performance) | Trip features: LSIG protection, current/voltage/power metering, RS485 communication | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETHi-40A-4PL | Susol Smart MCCB TS100Hi — 40A ETHi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETHi (High-Performance) | Trip features: LSIG protection, current/voltage/power metering, RS485 communication | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETHi-40A-4PR | Susol Smart MCCB TS100Hi — 40A ETHi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETHi (High-Performance) | Trip features: LSIG protection, current/voltage/power metering, RS485 communication | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETLi-40A-3P | Susol Smart MCCB TS100Hi — 40A ETLi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETLi (Limited (Mobile)) | Trip features: LSIG protection, current/voltage/power metering, RS485 + BLE mobile | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETLi-40A-4PL | Susol Smart MCCB TS100Hi — 40A ETLi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETLi (Limited (Mobile)) | Trip features: LSIG protection, current/voltage/power metering, RS485 + BLE mobile | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETLi-40A-4PR | Susol Smart MCCB TS100Hi — 40A ETLi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETLi (Limited (Mobile)) | Trip features: LSIG protection, current/voltage/power metering, RS485 + BLE mobile | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETSi-100A-3P | Susol Smart MCCB TS100Hi — 100A ETSi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETSi (Standard) | Trip features: LSIG protection, current metering | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETSi-100A-4PL | Susol Smart MCCB TS100Hi — 100A ETSi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETSi (Standard) | Trip features: LSIG protection, current metering | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETSi-100A-4PR | Susol Smart MCCB TS100Hi — 100A ETSi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETSi (Standard) | Trip features: LSIG protection, current metering | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETMi-100A-3P | Susol Smart MCCB TS100Hi — 100A ETMi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETMi (Multi-Function) | Trip features: LSIG protection, current metering, RS485 communication | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETMi-100A-4PL | Susol Smart MCCB TS100Hi — 100A ETMi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETMi (Multi-Function) | Trip features: LSIG protection, current metering, RS485 communication | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETMi-100A-4PR | Susol Smart MCCB TS100Hi — 100A ETMi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETMi (Multi-Function) | Trip features: LSIG protection, current metering, RS485 communication | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETHi-100A-3P | Susol Smart MCCB TS100Hi — 100A ETHi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETHi (High-Performance) | Trip features: LSIG protection, current/voltage/power metering, RS485 communication | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETHi-100A-4PL | Susol Smart MCCB TS100Hi — 100A ETHi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETHi (High-Performance) | Trip features: LSIG protection, current/voltage/power metering, RS485 communication | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETHi-100A-4PR | Susol Smart MCCB TS100Hi — 100A ETHi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETHi (High-Performance) | Trip features: LSIG protection, current/voltage/power metering, RS485 communication | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETLi-100A-3P | Susol Smart MCCB TS100Hi — 100A ETLi, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETLi (Limited (Mobile)) | Trip features: LSIG protection, current/voltage/power metering, RS485 + BLE mobile | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETLi-100A-4PL | Susol Smart MCCB TS100Hi — 100A ETLi, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETLi (Limited (Mobile)) | Trip features: LSIG protection, current/voltage/power metering, RS485 + BLE mobile | Pole: 4-pole — N극 좌측 (N-A-B-C) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100Hi-ETLi-100A-4PR | Susol Smart MCCB TS100Hi — 100A ETLi, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A @ 40°C | Breaking capacity Icu: 85kA @ 415V AC | Trip unit: ETLi (Limited (Mobile)) | Trip features: LSIG protection, current/voltage/power metering, RS485 + BLE mobile | Pole: 4-pole — N극 우측 (A-B-C-N) | Dimensions (W×H×D): 140×160×86 mm | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV |
