Molded Case Circuit Breakers
LS ELECTRIC

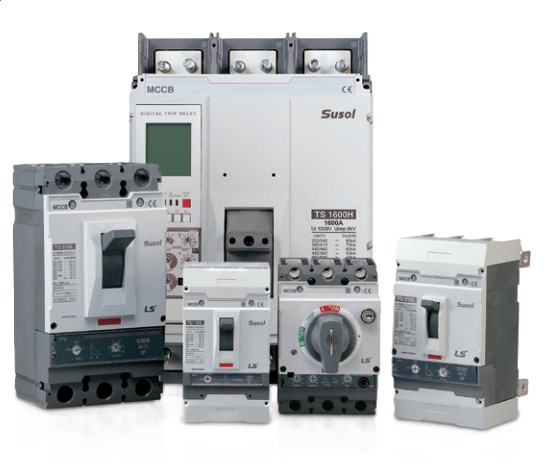

[LS ELECTRIC] — TS100N-FTU Susol MCCB (Normal (Standard), 50kA @ 415V, FTU 40~100A)
Family ID: LSE-TS100N-FTU
LS ELECTRIC Susol MCCB TS100N-FTU family. Frame: 100AF | Breaking capacity Icu @ 415V AC: 50kA | Trip unit: FTU (Fixed Trip Unit (Thermal-Magnetic)) | Trip features: Fixed rated current and instantaneous trip (10×In) | Rated current (In): 40A, 50A, 63A, 80A, 100A | Pole: 2P / 3P / 4P (N-arrangement L or R) | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | 20 variants — see RFQ table for specific MPN.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| TS100N-FTU100-40A-2P | Susol MCCB TS100N-FTU — 40A FTU100, 2-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-40A-3P | Susol MCCB TS100N-FTU — 40A FTU100, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-40A-4PL | Susol MCCB TS100N-FTU — 40A FTU100, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 좌측 (N-L1-L2-L3) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-40A-4PR | Susol MCCB TS100N-FTU — 40A FTU100, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 40A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 우측 (L1-L2-L3-N) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-50A-2P | Susol MCCB TS100N-FTU — 50A FTU100, 2-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-50A-3P | Susol MCCB TS100N-FTU — 50A FTU100, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-50A-4PL | Susol MCCB TS100N-FTU — 50A FTU100, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 좌측 (N-L1-L2-L3) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-50A-4PR | Susol MCCB TS100N-FTU — 50A FTU100, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 50A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 우측 (L1-L2-L3-N) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-63A-2P | Susol MCCB TS100N-FTU — 63A FTU100, 2-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-63A-3P | Susol MCCB TS100N-FTU — 63A FTU100, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-63A-4PL | Susol MCCB TS100N-FTU — 63A FTU100, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 좌측 (N-L1-L2-L3) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-63A-4PR | Susol MCCB TS100N-FTU — 63A FTU100, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 63A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 우측 (L1-L2-L3-N) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-80A-2P | Susol MCCB TS100N-FTU — 80A FTU100, 2-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-80A-3P | Susol MCCB TS100N-FTU — 80A FTU100, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-80A-4PL | Susol MCCB TS100N-FTU — 80A FTU100, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 좌측 (N-L1-L2-L3) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-80A-4PR | Susol MCCB TS100N-FTU — 80A FTU100, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 80A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 우측 (L1-L2-L3-N) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-100A-2P | Susol MCCB TS100N-FTU — 100A FTU100, 2-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 2-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-100A-3P | Susol MCCB TS100N-FTU — 100A FTU100, 3-pole | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 3-pole | Dimensions (W×H×D): 105×160×86 mm | Weight: 2.0 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-100A-4PL | Susol MCCB TS100N-FTU — 100A FTU100, 4-pole (L) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 좌측 (N-L1-L2-L3) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV | ||
| TS100N-FTU100-100A-4PR | Susol MCCB TS100N-FTU — 100A FTU100, 4-pole (R) | LS ELECTRIC | Frame: 100AF | Rated current (In): 100A | Breaking capacity Icu: 50kA @ 415V AC | Trip unit: FTU100 (Thermal-Magnetic) | Trip features: Fixed rated current and instantaneous trip (10×In) | Pole: 4-pole — N극 우측 (L1-L2-L3-N) | Dimensions (W×H×D): 140×160×86 mm | Weight: 2.6 kg | Standard: IEC 60947-2 | Ui 1000V | Uimp 8kV |
