![[MITSUBISHI ELECTRIC] — GM-SSYF Super Heli-Cross Right-Angle Geared Motor (0.1-0.4kW, Hollow Shaft, SF1.0)](https://img.prosourcemro.com/2026/07/0707-7-1-1024x1024.png)
Geared Motors
MITSUBISHI ELECTRIC

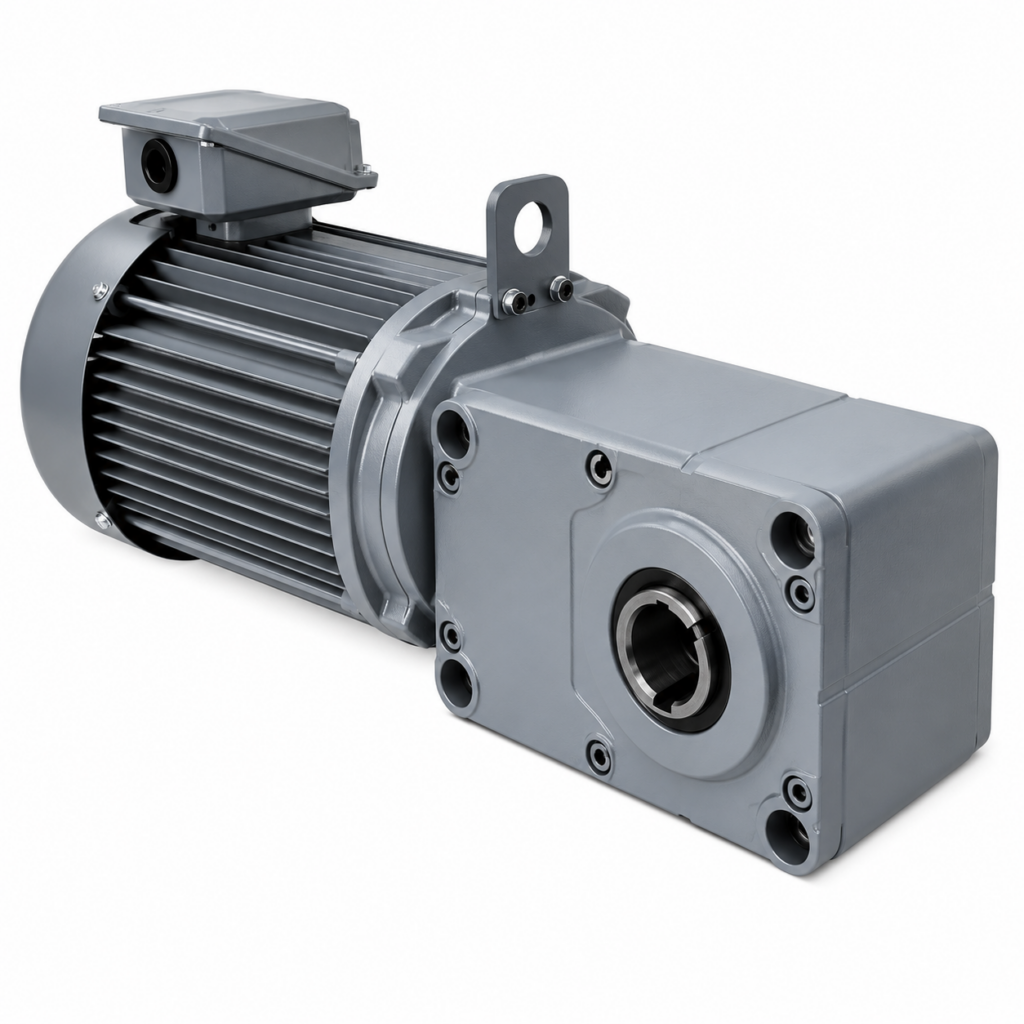

[MITSUBISHI ELECTRIC] — GM-SSYF Super Heli-Cross Right-Angle Geared Motor (0.1-0.4kW, Hollow Shaft, SF1.0)
Family ID: MEL-GM-SSY-F
Mitsubishi Electric GM-SSY Super Heli-Cross right-angle hollow-shaft geared motor, 0.1 to 0.4kW, service factor 1.0. Reduction ratios 1/7.5 to 1/60 with output speeds 30 to 240 r/min at 60Hz. Compact right-angle drive with flange/face-common mounting for space-saving conveyor and packaging machinery. 3-phase 200/200/220V, 4-pole, grease-lubricated, insulation class 120(E), enclosure IP44 indoor. Waterproof (W/P) and single-phase variants available on request.
30 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GM-SSYF 0.1kW 1/7.5 | GM-SSYF 0.1kW 1/7.5, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/7.5 · Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/10 | GM-SSYF 0.1kW 1/10, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/10 · Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/12.5 | GM-SSYF 0.1kW 1/12.5, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/12.5 · Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/15 | GM-SSYF 0.1kW 1/15, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/20 | GM-SSYF 0.1kW 1/20, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/25 | GM-SSYF 0.1kW 1/25, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/30 | GM-SSYF 0.1kW 1/30, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/40 | GM-SSYF 0.1kW 1/40, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/50 | GM-SSYF 0.1kW 1/50, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/50 · Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.1kW 1/60 | GM-SSYF 0.1kW 1/60, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.1kW · Reduction Ratio: 1/60 · Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed non-ventilated (TENV) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/7.5 | GM-SSYF 0.2kW 1/7.5, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/7.5 · Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/10 | GM-SSYF 0.2kW 1/10, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/10 · Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/12.5 | GM-SSYF 0.2kW 1/12.5, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/12.5 · Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/15 | GM-SSYF 0.2kW 1/15, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/20 | GM-SSYF 0.2kW 1/20, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/25 | GM-SSYF 0.2kW 1/25, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/30 | GM-SSYF 0.2kW 1/30, hollow shaft, flange/face mount, gear size 20, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 20 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/40 | GM-SSYF 0.2kW 1/40, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/50 | GM-SSYF 0.2kW 1/50, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/50 · Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.2kW 1/60 | GM-SSYF 0.2kW 1/60, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.2kW · Reduction Ratio: 1/60 · Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/7.5 | GM-SSYF 0.4kW 1/7.5, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/7.5 · Output Speed: 240 r/min (60Hz) / 200 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/10 | GM-SSYF 0.4kW 1/10, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/10 · Output Speed: 180 r/min (60Hz) / 150 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/12.5 | GM-SSYF 0.4kW 1/12.5, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/12.5 · Output Speed: 144 r/min (60Hz) / 120 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/15 | GM-SSYF 0.4kW 1/15, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/15 · Output Speed: 120 r/min (60Hz) / 100 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/20 | GM-SSYF 0.4kW 1/20, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/20 · Output Speed: 90 r/min (60Hz) / 75 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/25 | GM-SSYF 0.4kW 1/25, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/25 · Output Speed: 72 r/min (60Hz) / 60 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/30 | GM-SSYF 0.4kW 1/30, hollow shaft, flange/face mount, gear size 25, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/30 · Output Speed: 60 r/min (60Hz) / 50 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 25 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/40 | GM-SSYF 0.4kW 1/40, hollow shaft, flange/face mount, gear size 30, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/40 · Output Speed: 45 r/min (60Hz) / 37.5 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 30 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/50 | GM-SSYF 0.4kW 1/50, hollow shaft, flange/face mount, gear size 30, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/50 · Output Speed: 36 r/min (60Hz) / 30 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 30 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) | ||
| GM-SSYF 0.4kW 1/60 | GM-SSYF 0.4kW 1/60, hollow shaft, flange/face mount, gear size 30, no brake | MITSUBISHI ELECTRIC | Series: GM-SSY · Type: Right-Angle Shaft (Super Heli-Cross) · Service Factor: 1.0 · Shaft: Hollow shaft · Mount: Flange / face mount (common) · Brake: None · Output: 0.4kW · Reduction Ratio: 1/60 · Output Speed: 30 r/min (60Hz) / 25 r/min (50Hz) · Poles: 4P · Phase: 3-phase · Voltage: 200/200/220V (50/60/60Hz) · Gear Size: 30 · Lubrication: Grease (factory-filled) · Enclosure: Totally-enclosed fan-cooled (TEFC) · Protection: IP44 (indoor) · Availability: Short-delivery made-to-order (consult for 10+ units/order) |
