Proximity
Omron

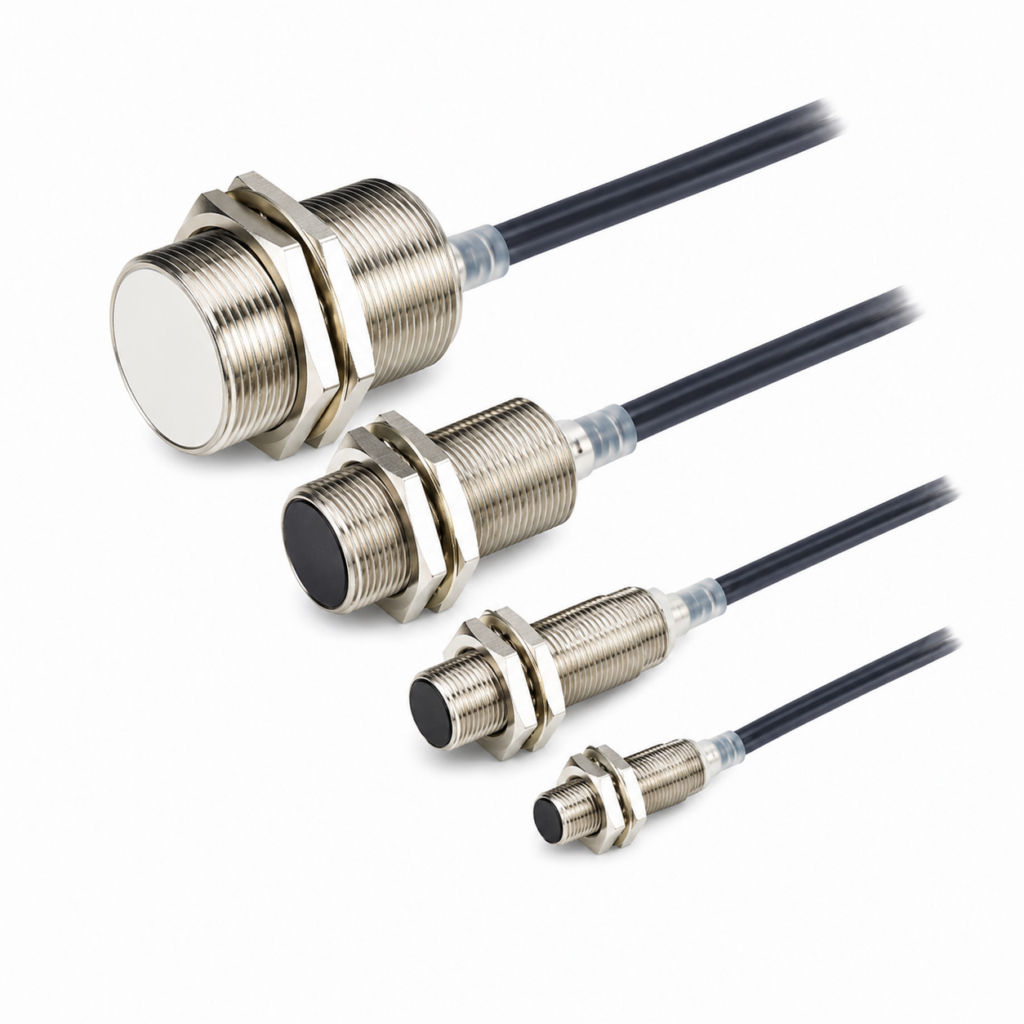

[OMRON] — E2E AC 2-Wire Proximity Sensor (Shielded, M12/M18/M30, NO/NC)
Family ID: OMRON-E2E-AC2W-SH
OMRON E2E Series AC 2-wire shielded proximity sensors. M12 (2mm), M18 (5mm), M30 (10mm). NO and NC. PVC oil-resistant cable. Pre-wired 2m and M12 connector. UL and frequency variants also available.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2E-X2Y1 2M | AC 2W shielded M12 2 mm NO 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NO | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: Pre-wired 2 m | ||
| E2E-X2Y1-M1 | AC 2W shielded M12 2 mm NO M12 conn | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NO | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: M12 Connector | Pin Arrangement: (3, 4): (AC, AC) | ||
| E2E-X2Y2 2M | AC 2W shielded M12 2 mm NC 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NC | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: Pre-wired 2 m | ||
| E2E-X2Y2-M1 | AC 2W shielded M12 2 mm NC M12 conn | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NC | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: M12 Connector | Pin Arrangement: (1, 2): (AC, AC) | ||
| E2E-X5Y1 2M | AC 2W shielded M18 5 mm NO 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NO | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: Pre-wired 2 m | ||
| E2E-X5Y1-M1 | AC 2W shielded M18 5 mm NO M12 conn | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NO | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: M12 Connector | Pin Arrangement: (3, 4): (AC, AC) | ||
| E2E-X5Y2 2M | AC 2W shielded M18 5 mm NC 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NC | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: Pre-wired 2 m | ||
| E2E-X5Y2-M1 | AC 2W shielded M18 5 mm NC M12 conn | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NC | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: M12 Connector | Pin Arrangement: (1, 2): (AC, AC) | ||
| E2E-X10Y1 2M | AC 2W shielded M30 10 mm NO 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NO | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: Pre-wired 2 m | ||
| E2E-X10Y1-M1 | AC 2W shielded M30 10 mm NO M12 conn | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NO | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: M12 Connector | Pin Arrangement: (3, 4): (AC, AC) | ||
| E2E-X10Y2 2M | AC 2W shielded M30 10 mm NC 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NC | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: Pre-wired 2 m | ||
| E2E-X10Y2-M1 | AC 2W shielded M30 10 mm NC M12 conn | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: AC 2-wire | Cable: PVC oil-resistant | Operation Mode: NC | Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 | Connection: M12 Connector | Pin Arrangement: (1, 2): (AC, AC) |
