![[OMRON] — E2EC-M / E2EC-Q Stainless Steel Sensing Surface Proximity Sensor (8 dia., 2mm, NO)](https://img.prosourcemro.com/2026/05/001-387-1024x1024.png)
Proximity
Omron

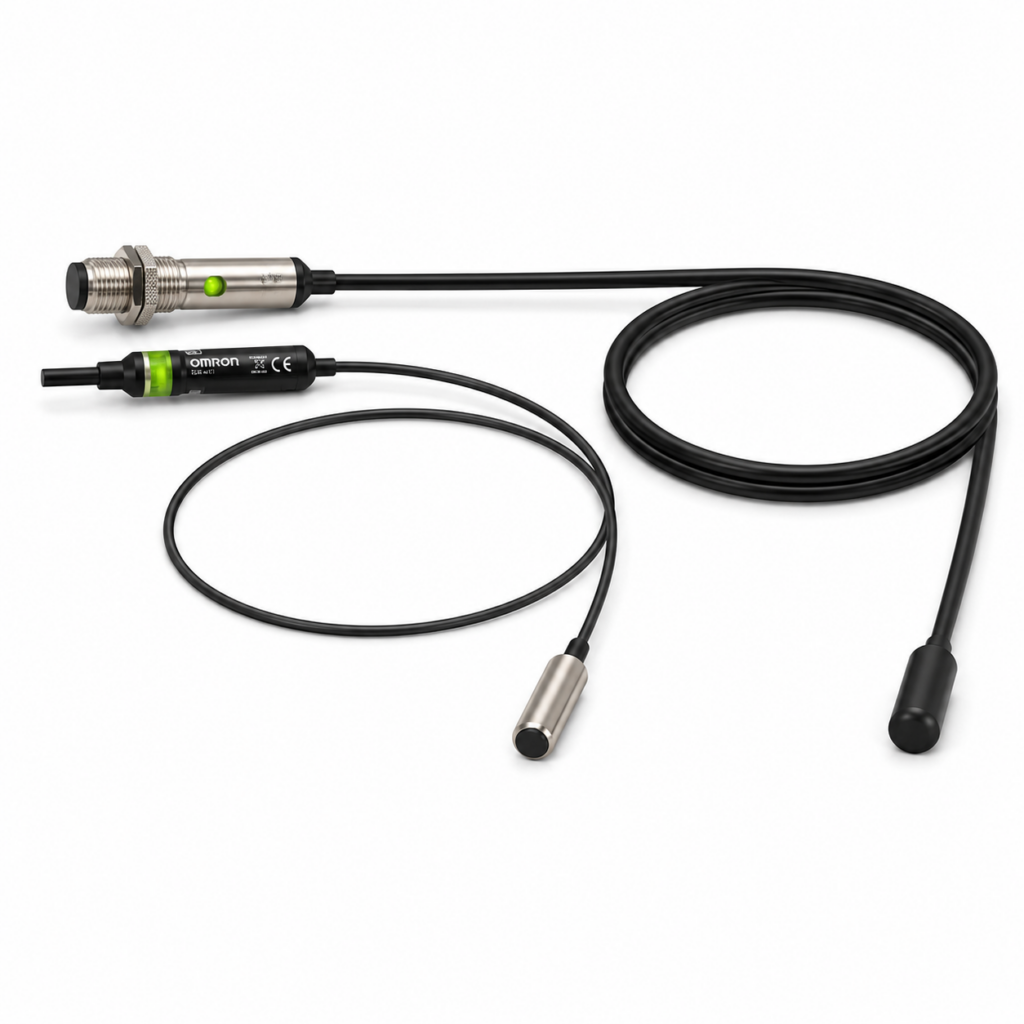

[OMRON] — E2EC-M / E2EC-Q Stainless Steel Sensing Surface Proximity Sensor (8 dia., 2mm, NO)
Family ID: OMRON-E2EC
OMRON E2EC-M / E2EC-Q Series stainless steel sensing head proximity sensor. Shielded, 8 dia., 2mm sensing distance. Iron surface mounting. NO only. E2EC-MC2B1 2M: DC 3-wire PNP pre-wired 2m. E2EC-MC2D1 2M: DC 2-wire (polarity) pre-wired 2m. E2EC-QC2D1-M1GJ-T 0.3M: DC 2-wire (no polarity) M12 connector 0.3m.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2EC-MC2B1 2M | Stainless steel 8dia 2mm DC3W PNP NO pre-wired 2m | OMRON | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface | ||
| E2EC-MC2D1 2M | Stainless steel 8dia 2mm DC2W polarity NO pre-wired 2m | OMRON | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface | ||
| E2EC-QC2D1-M1GJ-T 0.3M | Stainless steel 8dia 2mm DC2W no-polarity NO M12conn 0.3m | OMRON | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: M12 Pre-wired Connector 0.3 m | Pin: (3)-(4) | Sensing Head: Stainless steel | Mounting: Iron surface | Required Cable: XS2F-D421-DD0 (2m) or XS2F-D421-GD0 (5m); use heat-resistant XS2F-D42x-x80F for spatter environments | ||
| E2EC-MC2B1 2M | Stainless steel 8dia 2mm DC3W PNP NO pre-wired 2m | OMRON | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface | ||
| E2EC-MC2D1 2M | Stainless steel 8dia 2mm DC2W polarity NO pre-wired 2m | OMRON | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface | ||
| E2EC-QC2D1-M1GJ-T 0.3M | Stainless steel 8dia 2mm DC2W no-polarity NO M12conn 0.3m | OMRON | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: M12 Pre-wired Connector 0.3 m | Pin: (3)-(4) | Sensing Head: Stainless steel | Mounting: Iron surface | Required Cable: XS2F-D421-DD0 (2m) or XS2F-D421-GD0 (5m); use heat-resistant XS2F-D42x-x80F for spatter environments |
