Proximity
Omron

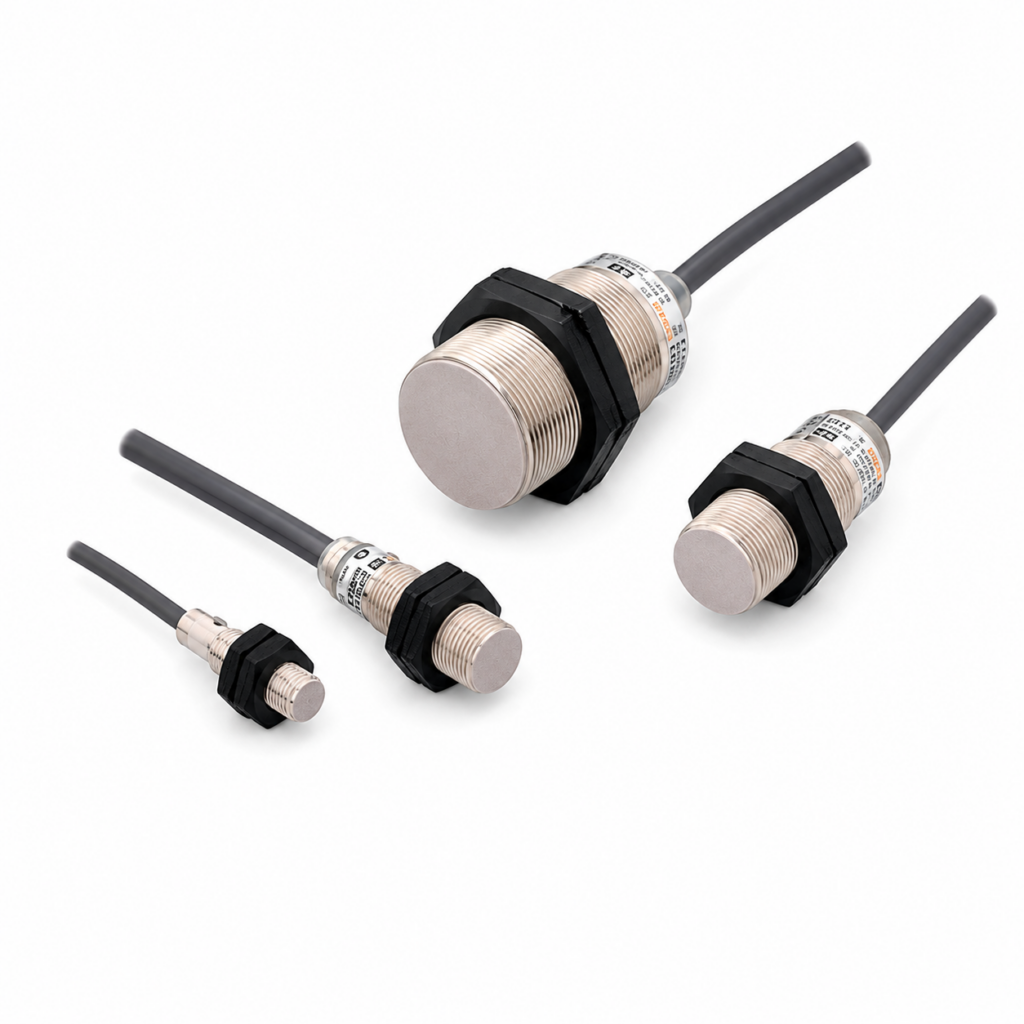

[OMRON] — E2F Resin-case Proximity Sensor (M8/M12/M18/M30, DC 3-Wire/AC 2-Wire)
Family ID: OMRON-E2F
OMRON E2F Series resin-case proximity sensor with superb water resistance. Shielded. M8 (1.5mm): DC 3-wire NPN/PNP. M12 (2mm), M18 (5mm), M30 (10mm): DC 3-wire NPN/PNP + AC 2-wire. NO and NC. Pre-wired 2m. Frequency variant models also available (add '5' before output code, e.g. E2F-X5E15 2M).
22 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2F-X1R5E1 2M | E2F M8 1.5 mm DC 3-wire NPN NO 2m | OMRON | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X1R5E2 2M | E2F M8 1.5 mm DC 3-wire NPN NC 2m | OMRON | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X1R5F1 2M | E2F M8 1.5 mm DC 3-wire PNP NO 2m | OMRON | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X1R5F2 2M | E2F M8 1.5 mm DC 3-wire PNP NC 2m | OMRON | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X2E1 2M | E2F M12 2 mm DC 3-wire NPN NO 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X2E2 2M | E2F M12 2 mm DC 3-wire NPN NC 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X2F1 2M | E2F M12 2 mm DC 3-wire PNP NO 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X2F2 2M | E2F M12 2 mm DC 3-wire PNP NC 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X2Y1 2M | E2F M12 2 mm AC 2-wire --- NO 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X2Y2 2M | E2F M12 2 mm AC 2-wire --- NC 2m | OMRON | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X5E1 2M | E2F M18 5 mm DC 3-wire NPN NO 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X5E2 2M | E2F M18 5 mm DC 3-wire NPN NC 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X5F1 2M | E2F M18 5 mm DC 3-wire PNP NO 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X5F2 2M | E2F M18 5 mm DC 3-wire PNP NC 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X5Y1 2M | E2F M18 5 mm AC 2-wire --- NO 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X5Y2 2M | E2F M18 5 mm AC 2-wire --- NC 2m | OMRON | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X10E1 2M | E2F M30 10 mm DC 3-wire NPN NO 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X10E2 2M | E2F M30 10 mm DC 3-wire NPN NC 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X10F1 2M | E2F M30 10 mm DC 3-wire PNP NO 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X10F2 2M | E2F M30 10 mm DC 3-wire PNP NC 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X10Y1 2M | E2F M30 10 mm AC 2-wire --- NO 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) | ||
| E2F-X10Y2 2M | E2F M30 10 mm AC 2-wire --- NC 2m | OMRON | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Frequency variant: add '5' before output code (e.g. E2F-X2E1→E2F-X2E15 2M) |
