Proximity
Autonics

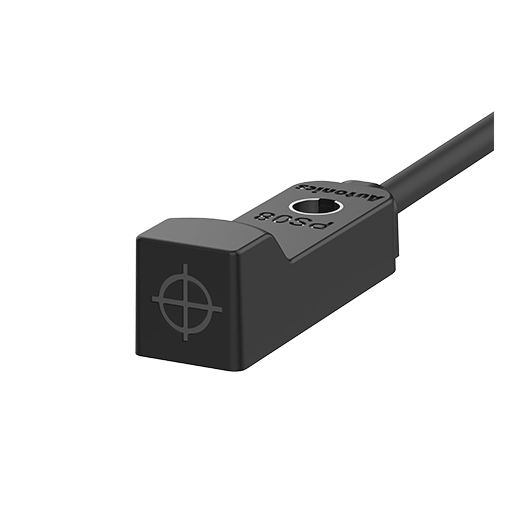

[AUTONICS] PS Series Rectangular Inductive Proximity Sensors
Family ID: AUTONICS-PS-SERIES
Rectangular inductive proximity sensors in multiple body sizes (8, 12, 17, 25, 30, 40, 50 mm square). DC 3-wire (NPN/PNP), DC 2-wire, and AC 2-wire output variants. IP67 rated. For applications where cylindrical sensors don't fit.
23 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PS08-2DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 08 mm | 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular small body | ||
| AUTONICS-PS08-2DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 08 mm | 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular small body | ||
| AUTONICS-PS12-4DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 12 mm | 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular small body | ||
| AUTONICS-PS12-4DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 12 mm | 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular small body | ||
| AUTONICS-PS50-10DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 50 mm | 10 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular small body | ||
| AUTONICS-PS50-10DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 50 mm | 10 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular small body | ||
| AUTONICS-PS17-5DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 17 mm | 5 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS17-5DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 17 mm | 5 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS25-10DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 25 mm | 10 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS25-10DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 25 mm | 10 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS30-15DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 30 mm | 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS30-15DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 30 mm | 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS40-20DN | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 40 mm | 20 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS40-20DP | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 40 mm | 20 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | rectangular mid-large body | ||
| AUTONICS-PS12-4A | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 12 mm DC 2-wire | 4 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | rectangular 2-wire | ||
| AUTONICS-PS17-5A | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 17 mm DC 2-wire | 5 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | rectangular 2-wire | ||
| AUTONICS-PS25-10A | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 25 mm DC 2-wire | 10 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | rectangular 2-wire | ||
| AUTONICS-PS30-15A | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 30 mm DC 2-wire | 15 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | rectangular 2-wire | ||
| AUTONICS-PS40-20A | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 40 mm DC 2-wire | 20 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | rectangular 2-wire | ||
| AUTONICS-PS12-4AC | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 12 mm AC 2-wire | 4 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | rectangular AC | ||
| AUTONICS-PS17-5AC | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 17 mm AC 2-wire | 5 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | rectangular AC | ||
| AUTONICS-PS25-10AC | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 25 mm AC 2-wire | 10 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | rectangular AC | ||
| AUTONICS-PS30-15AC | — | AUTONICS | Rectangular proximity sensor | PS Series | Square 30 mm AC 2-wire | 15 mm | AC 2-wire | 100-240 VAC | Cable type | IP67 | rectangular AC |
