Photoelectric
Omron

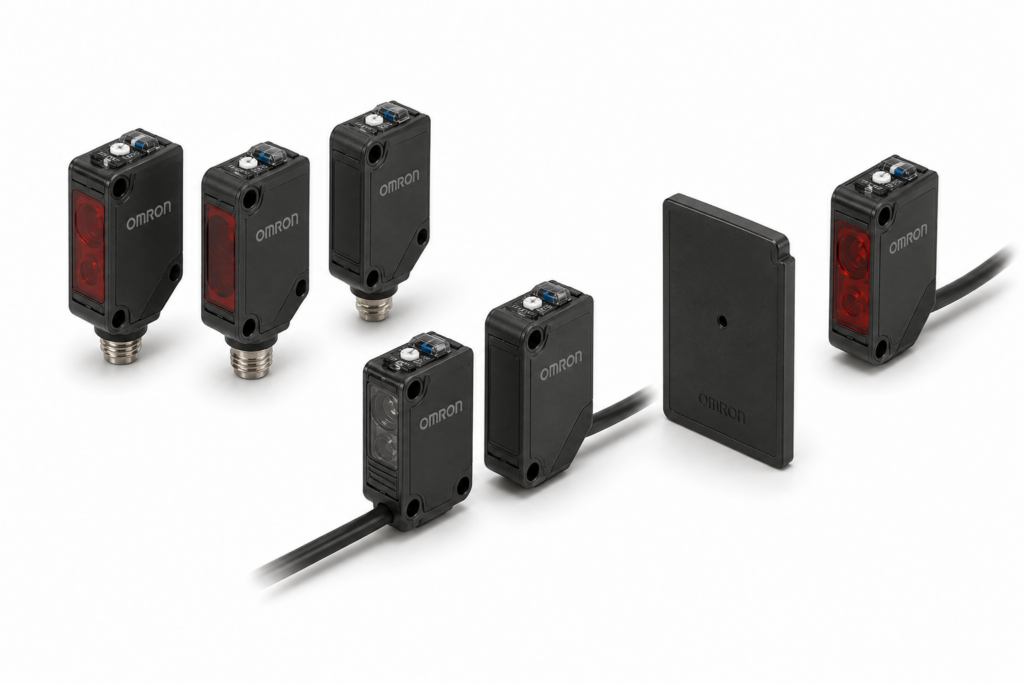

[OMRON] — E3Z-UL IO-Link Photoelectric Sensor (Through / Retro / Diffuse, PNP, COM2/COM3, UL Certified)
Family ID: OMRON-E3Z-UL-IL
OMRON E3Z Series UL certified IO-Link photoelectric sensors. PNP output only. IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3). Through-beam 15 m infrared (E3Z-T81-IL2/3-UL): set only. Retro-reflective MSR 4 m (E3Z-R81-IL2/3-UL). Diffuse 1 m infrared (E3Z-D82-IL2/3-UL). Narrow beam 90 mm (E3Z-L81-IL2/3-UL). Connection: pre-wired 2 m, M12 Smartclick 0.3 m, M8 connector.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3Z-T81-IL2-UL 2M | IO-Link UL through-beam COM2 (38.4 kbps) set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Note: Set only — individual Emitter/Receiver not listed separately | Type: Through-beam Set | Connection: Pre-wired 2 m | ||
| E3Z-T81-M1TJ-IL2-UL 0.3M | IO-Link UL through-beam COM2 (38.4 kbps) M12 Smartclick 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Note: Set only — individual Emitter/Receiver not listed separately | Type: Through-beam Set | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-T86-IL2-UL | IO-Link UL through-beam COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Note: Set only — individual Emitter/Receiver not listed separately | Type: Through-beam Set | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-T81-IL3-UL 2M | IO-Link UL through-beam COM3 (230.4 kbps) set 2m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Note: Set only — individual Emitter/Receiver not listed separately | Type: Through-beam Set | Connection: Pre-wired 2 m | ||
| E3Z-T81-M1TJ-IL3-UL 0.3M | IO-Link UL through-beam COM3 (230.4 kbps) M12 Smartclick 0.3m | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Note: Set only — individual Emitter/Receiver not listed separately | Type: Through-beam Set | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-T86-IL3-UL | IO-Link UL through-beam COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 15 m | Light Source: Infrared | Sensing Method: Through-beam IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Note: Set only — individual Emitter/Receiver not listed separately | Type: Through-beam Set | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-R81-IL2-UL 2M | IO-Link UL retro MSR COM2 (38.4 kbps) 2m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective MSR IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m | ||
| E3Z-R81-M1TJ-IL2-UL 0.3M | IO-Link UL retro MSR COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective MSR IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-R86-IL2-UL | IO-Link UL retro MSR COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective MSR IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-R81-IL3-UL 2M | IO-Link UL retro MSR COM3 (230.4 kbps) 2m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective MSR IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m | ||
| E3Z-R81-M1TJ-IL3-UL 0.3M | IO-Link UL retro MSR COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective MSR IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-R86-IL3-UL | IO-Link UL retro MSR COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective MSR IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-D82-IL2-UL 2M | IO-Link UL Diffuse-reflective 1 m COM2 (38.4 kbps) 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Connection: Pre-wired 2 m | ||
| E3Z-D82-M1TJ-IL2-UL 0.3M | IO-Link UL Diffuse-reflective 1 m COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-D87-IL2-UL | IO-Link UL Diffuse-reflective 1 m COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-D82-IL3-UL 2M | IO-Link UL Diffuse-reflective 1 m COM3 (230.4 kbps) 2m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Connection: Pre-wired 2 m | ||
| E3Z-D82-M1TJ-IL3-UL 0.3M | IO-Link UL Diffuse-reflective 1 m COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-D87-IL3-UL | IO-Link UL Diffuse-reflective 1 m COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-L81-IL2-UL 2M | IO-Link UL Diffuse-reflective narrow beam 90 mm (narrow beam) COM2 (38.4 kbps) 2m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Connection: Pre-wired 2 m | ||
| E3Z-L81-M1TJ-IL2-UL 0.3M | IO-Link UL Diffuse-reflective narrow beam 90 mm (narrow beam) COM2 (38.4 kbps) M12 0.3m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-L86-IL2-UL | IO-Link UL Diffuse-reflective narrow beam 90 mm (narrow beam) COM2 (38.4 kbps) M8 | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam IO-Link (UL certified) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Certification: UL | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | ||
| E3Z-L81-IL3-UL 2M | IO-Link UL Diffuse-reflective narrow beam 90 mm (narrow beam) COM3 (230.4 kbps) 2m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Connection: Pre-wired 2 m | ||
| E3Z-L81-M1TJ-IL3-UL 0.3M | IO-Link UL Diffuse-reflective narrow beam 90 mm (narrow beam) COM3 (230.4 kbps) M12 0.3m | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Connection: M12 Pre-wired Smartclick 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick (sold separately) | ||
| E3Z-L86-IL3-UL | IO-Link UL Diffuse-reflective narrow beam 90 mm (narrow beam) COM3 (230.4 kbps) M8 | OMRON | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam IO-Link (UL certified) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Certification: UL | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) |
