Temperature Controller
Omron

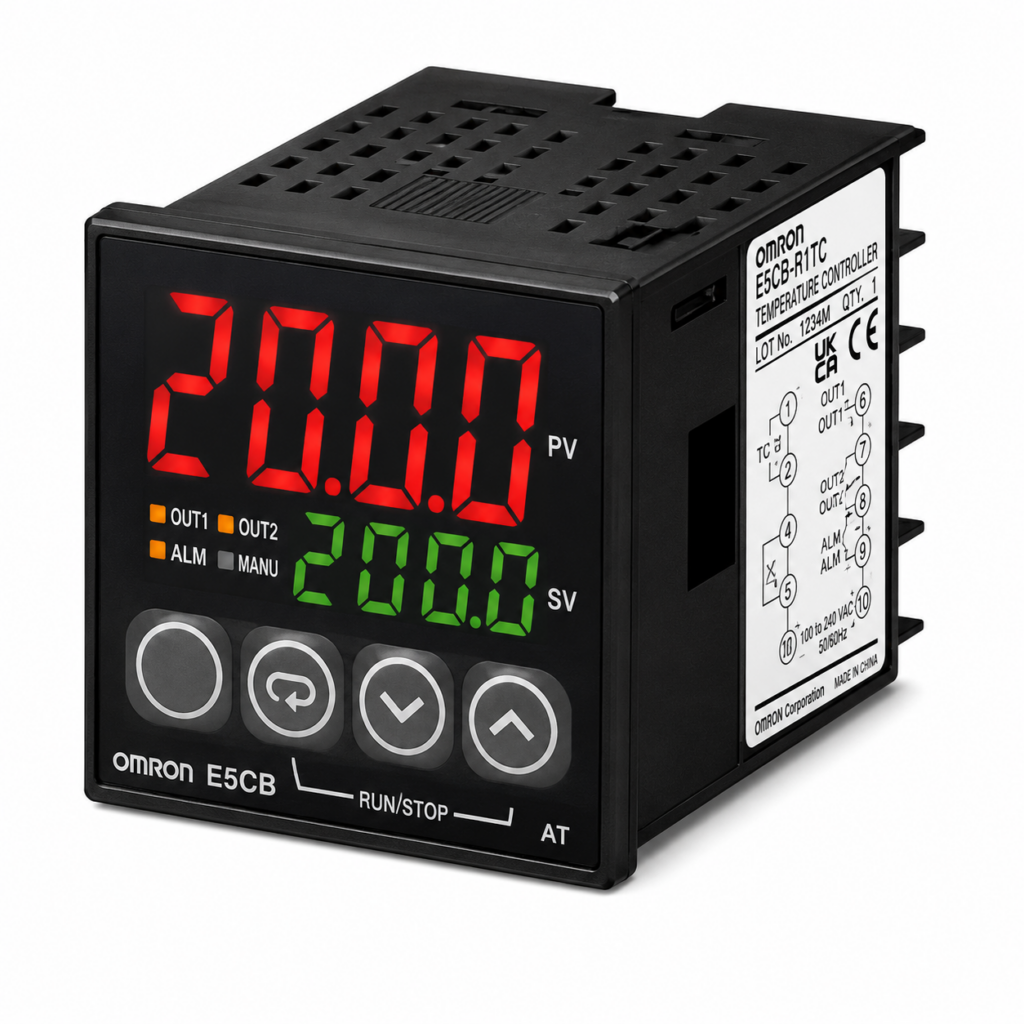

[OMRON] — E5CB Temperature Controller (48x48mm, Relay/Voltage Output, TC/RTD Input, 100~240VAC or 24VAC/VDC)
Family ID: OMRON-E5CB
Ideal for heater control, these Temperature Controllers offer the highest control performance at surprisingly low cost! Easy to Read with One of the Largest Character Displays Anywhere. Thermocouple and Platinum resistance thermometer input types. Relay output and Voltage output (for driving SSR) variants.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5CB-R1TC | Relay output, Thermocouple input, 100~240VAC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Relay | Input: Thermocouple | Alarm Outputs: 1 | Power Supply: 100~240VAC | ||
| E5CB-R1P | Relay output, Platinum RTD input, 100~240VAC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Relay | Input: Platinum Resistance Thermometer (RTD) | Alarm Outputs: 1 | Power Supply: 100~240VAC | ||
| E5CB-Q1TC | Voltage output (SSR), Thermocouple input, 100~240VAC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Voltage (for driving SSR) | Input: Thermocouple | Alarm Outputs: 1 | Power Supply: 100~240VAC | ||
| E5CB-Q1P | Voltage output (SSR), Platinum RTD input, 100~240VAC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Voltage (for driving SSR) | Input: Platinum Resistance Thermometer (RTD) | Alarm Outputs: 1 | Power Supply: 100~240VAC | ||
| E5CB-R1TCD | Relay output, Thermocouple input, 24VAC/VDC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Relay | Input: Thermocouple | Alarm Outputs: 1 | Power Supply: 24VAC/VDC | ||
| E5CB-R1PD | Relay output, Platinum RTD input, 24VAC/VDC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Relay | Input: Platinum Resistance Thermometer (RTD) | Alarm Outputs: 1 | Power Supply: 24VAC/VDC | ||
| E5CB-Q1TCD | Voltage output (SSR), Thermocouple input, 24VAC/VDC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Voltage (for driving SSR) | Input: Thermocouple | Alarm Outputs: 1 | Power Supply: 24VAC/VDC | ||
| E5CB-Q1PD | Voltage output (SSR), Platinum RTD input, 24VAC/VDC, 1 alarm output | OMRON | Size: 48x48mm | Control Output: Voltage (for driving SSR) | Input: Platinum Resistance Thermometer (RTD) | Alarm Outputs: 1 | Power Supply: 24VAC/VDC |
