Temperature Controller
Omron

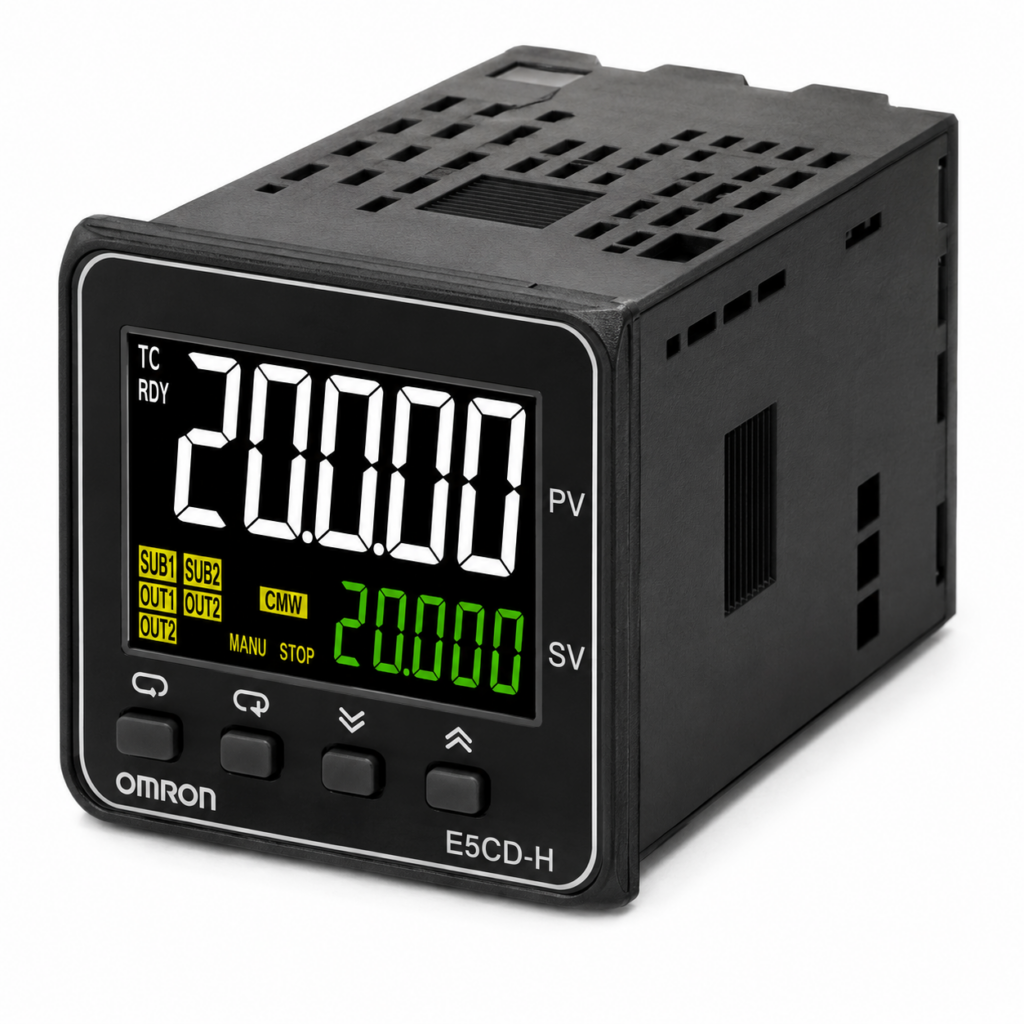

[OMRON] — E5CD-HQX2DBM Digital Temperature Controller (48×48mm, Voltage Pulse Output, 24VAC/VDC, Push-In Plus)
Family ID: OMRON-E5CD-H-QX-D
High resolution and high precision input are available. 0.01°C display. Equipped with functions specialized for the digital industry. Push-In Plus terminal blocks reduce wiring work. Control output: Voltage Pulse. Auxiliary output: Relay+SSR. Power supply: 24VAC/VDC. Heating and Cooling Control supported.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5CD-HQX2DBM-000 | E5CD-H, Voltage Pulse output, 24VAC/VDC, No options | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Relay+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: No options | ||
| E5CD-HQX2DBM-001 | E5CD-H, Voltage Pulse output, 24VAC/VDC, Heater burnout / SSR failure detection (HB/SSR) | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Relay+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: Heater burnout / SSR failure detection (HB/SSR) | ||
| E5CD-HQX2DBM-002 | E5CD-H, Voltage Pulse output, 24VAC/VDC, Heater burnout / SSR failure detection + Heater overcurrent detection | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Relay+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: Heater burnout / SSR failure detection + Heater overcurrent detection | ||
| E5CD-HQX2DBM-003 | E5CD-H, Voltage Pulse output, 24VAC/VDC, Event inputs | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Relay+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: Event inputs | ||
| E5CD-HQX2DBM-004 | E5CD-H, Voltage Pulse output, 24VAC/VDC, RS-485 communications | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Relay+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: RS-485 communications | ||
| E5CD-HQX2DBM-006 | E5CD-H, Voltage Pulse output, 24VAC/VDC, RS-485 communications + Event inputs | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Relay+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: RS-485 communications + Event inputs | ||
| E5CD-HQQ2DBM-000 | E5CD-H, Voltage Pulse output, 24VAC/VDC, No options | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Voltage Pulse+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: No options | ||
| E5CD-HQQ2DBM-001 | E5CD-H, Voltage Pulse output, 24VAC/VDC, Heater burnout / SSR failure detection (HB/SSR) | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Voltage Pulse+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: Heater burnout / SSR failure detection (HB/SSR) | ||
| E5CD-HQQ2DBM-003 | E5CD-H, Voltage Pulse output, 24VAC/VDC, Event inputs | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Voltage Pulse+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: Event inputs | ||
| E5CD-HQQ2DBM-004 | E5CD-H, Voltage Pulse output, 24VAC/VDC, RS-485 communications | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Voltage Pulse+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: RS-485 communications | ||
| E5CD-HQQ2DBM-006 | E5CD-H, Voltage Pulse output, 24VAC/VDC, RS-485 communications + Event inputs | OMRON | Size: 48x48mm | Control Output: Voltage Pulse | Auxiliary Output: Voltage Pulse+SSR | Power Supply: 24VAC/VDC | Terminal: Push-In Plus | Option: RS-485 communications + Event inputs |
