Temperature Controller
Autonics

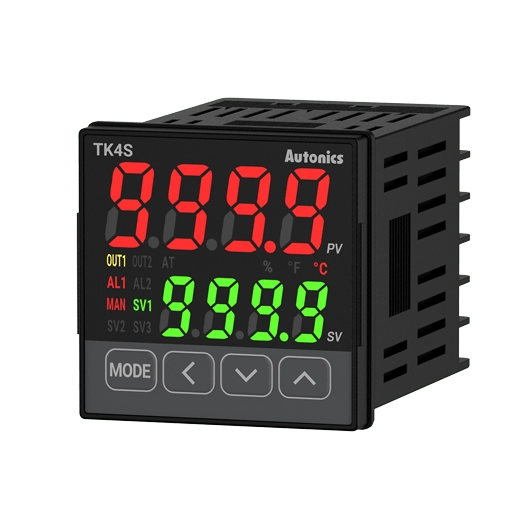

[AUTONICS] TK Series Simultaneous Heating and Cooling PID Temperature Controllers
Family ID: AUTONICS-TK-SERIES
Simultaneous heating and cooling output PID temperature controllers. Specialized 2-output heat/cool control for plastic injection, extrusion, and similar applications. Auto-tuning, anti-reset windup. Various sizes from 48x48 mm to 96x96 mm. Multiple input types (RTD, TC, analog).
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TK4S-T4RR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 48 x H 96 mm | universal input | dual relay heat/cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4S-T4SR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 48 x H 96 mm | universal input | SSR heat + relay cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4M-T4RR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 48 x H 48 mm | universal input | dual relay heat/cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4M-T4SR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 48 x H 48 mm | universal input | SSR heat + relay cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4W-T4RR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 96 x H 48 mm | universal input | dual relay heat/cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4W-T4SR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 96 x H 48 mm | universal input | SSR heat + relay cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4Y-T4RR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 72 x H 36 mm | universal input | dual relay heat/cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool | ||
| AUTONICS-TK4Y-T4SR | — | AUTONICS | Temperature controller | TK Series | Heat/cool PID W 72 x H 36 mm | universal input | SSR heat + relay cool | 100-240 VAC | Screw terminal | IP50 | dual output heat-cool |
