Relays
Omron

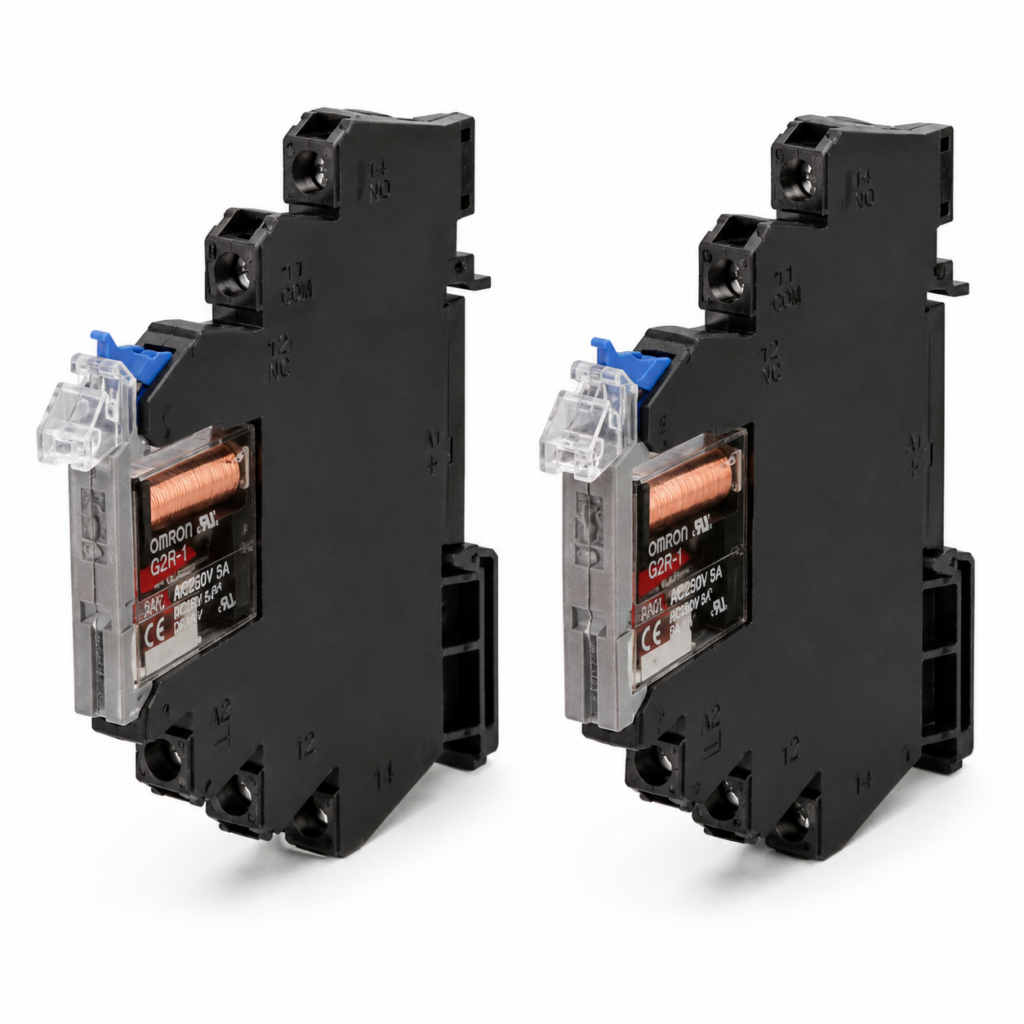

[OMRON] — G2RV-ST Slim I/O Relay Parts (Maintenance Relays, Short Bars, PLC Interface, Cables)
Family ID: OMRON-G2RV-ST-PARTS
Slim I/O relay realizes space saving thanks to high-density mounting and ultra-slim body
37 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G2RV-1-S-G DC11 | G2RV-ST Maintenance Relay Standard DC11 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Standard | Latching Lever: No | Coil Voltage: DC11 | Applicable: ST700/500 12VDC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| G2RV-1-S-G DC21 | G2RV-ST Maintenance Relay Standard DC21 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Standard | Latching Lever: No | Coil Voltage: DC21 | Applicable: ST700/500 24VDC/24VAC/VDC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| G2RV-1-S-G DC48 | G2RV-ST Maintenance Relay Standard DC48 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Standard | Latching Lever: No | Coil Voltage: DC48 | Applicable: ST700/500 48VAC/VDC/100-230VAC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| G2RV-1-SI-G DC21 | G2RV-ST Maintenance Relay Standard DC21 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Standard | Latching Lever: Yes | Coil Voltage: DC21 | Applicable: ST701/501 24VDC/24VAC/VDC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| G2RV-1-S-AP-G DC11 | G2RV-ST Maintenance Relay Microload DC11 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Microload | Latching Lever: No | Coil Voltage: DC11 | Applicable: ST700/500-AP 12VDC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| G2RV-1-S-AP-G DC21 | G2RV-ST Maintenance Relay Microload DC21 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Microload | Latching Lever: No | Coil Voltage: DC21 | Applicable: ST700/500-AP 24VDC/24VAC/VDC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| G2RV-1-S-AP-G DC48 | G2RV-ST Maintenance Relay Microload DC48 | OMRON | Type: G2RV-ST Maintenance Relay | Load: Microload | Latching Lever: No | Coil Voltage: DC48 | Applicable: ST700/500-AP 48VAC/VDC/100-230VAC | Note: Coil voltage differs from socket rated voltage due to internal reduction | ||
| PYDN-6.2ST-200R | Short Bar 20-pole Red | OMRON | Type: G2RV-ST Short Bar | Poles: 20 | Color: Red | Current: 32A max | Note: Min order qty 10 | ||
| PYDN-6.2ST-200S | Short Bar 20-pole Blue | OMRON | Type: G2RV-ST Short Bar | Poles: 20 | Color: Blue | Current: 32A max | Note: Min order qty 10 | ||
| PYDN-6.2ST-200Y | Short Bar 20-pole Yellow | OMRON | Type: G2RV-ST Short Bar | Poles: 20 | Color: Yellow | Current: 32A max | Note: Min order qty 10 | ||
| XW5Z-P2.5LB1 | G2RV-ST Label (5 sheets / 72 pcs per sheet) | OMRON | Type: G2RV-ST Accessory | Description: Label (5 sheets / 72 pcs per sheet) | ||
| XW5Z-EP12 | G2RV-ST Separate Plate | OMRON | Type: G2RV-ST Accessory | Description: Separate Plate | ||
| P2RV-P3.1ST | G2RV-ST Isolation Plate | OMRON | Type: G2RV-ST Accessory | Description: Isolation Plate | ||
| P2RVC-8ST-I-5-1 | G2RV-ST PLC Interface Input Push-In PNP | OMRON | Type: G2RV-ST PLC Interface Unit | I/O: Input | Connection: Push-In | Common: PNP | Applicable: G2RV-ST500-AP | ||
| P2RVC-8ST-I-5 | G2RV-ST PLC Interface Input Push-In NPN | OMRON | Type: G2RV-ST PLC Interface Unit | I/O: Input | Connection: Push-In | Common: NPN | Applicable: G2RV-ST500-AP | ||
| P2RVC-8ST-I-7-1 | G2RV-ST PLC Interface Input Screw PNP | OMRON | Type: G2RV-ST PLC Interface Unit | I/O: Input | Connection: Screw | Common: PNP | Applicable: G2RV-ST700-AP | ||
| P2RVC-8ST-O-5-1 | G2RV-ST PLC Interface Output Push-In PNP | OMRON | Type: G2RV-ST PLC Interface Unit | I/O: Output | Connection: Push-In | Common: PNP | Applicable: G3RV-ST500/G2RV-ST500 | ||
| P2RVC-8ST-O-5 | G2RV-ST PLC Interface Output Push-In NPN | OMRON | Type: G2RV-ST PLC Interface Unit | I/O: Output | Connection: Push-In | Common: NPN | Applicable: G3RV-ST500/G2RV-ST500 | ||
| P2RVC-8ST-O-7-1 | G2RV-ST PLC Interface Output Screw PNP | OMRON | Type: G2RV-ST PLC Interface Unit | I/O: Output | Connection: Screw | Common: PNP | Applicable: G3RV-ST700/G2RV-ST700 | ||
| PFP-100N | G2RV-ST DIN Track 1m | OMRON | Type: G2RV-ST DIN Track Part | Description: DIN Track 1m | ||
| PFP-50N | G2RV-ST DIN Track 0.5m | OMRON | Type: G2RV-ST DIN Track Part | Description: DIN Track 0.5m | ||
| PFP-M | G2RV-ST End Plate | OMRON | Type: G2RV-ST DIN Track Part | Description: End Plate | ||
| PFP-S | G2RV-ST Spacer | OMRON | Type: G2RV-ST DIN Track Part | Description: Spacer | ||
| P2RV-A100C | G2RV-ST Cable 8 I/O 1m loose wires | OMRON | Type: G2RV-ST Connecting Cable | Description: Cable 8 I/O 1m loose wires | ||
| P2RV-A200C | G2RV-ST Cable 8 I/O 2m loose wires | OMRON | Type: G2RV-ST Connecting Cable | Description: Cable 8 I/O 2m loose wires | ||
| P2RV-A300C | G2RV-ST Cable 8 I/O 3m loose wires | OMRON | Type: G2RV-ST Connecting Cable | Description: Cable 8 I/O 3m loose wires | ||
| P2RV-A500C | G2RV-ST Cable 8 I/O 5m loose wires | OMRON | Type: G2RV-ST Connecting Cable | Description: Cable 8 I/O 5m loose wires | ||
| P2RV-4-100C | G2RV-ST PLC Cable 32out 1m MIL | OMRON | Type: G2RV-ST Connecting Cable | Description: PLC Cable 32out 1m MIL | ||
| P2RV-4-200C | G2RV-ST PLC Cable 32out 2m MIL | OMRON | Type: G2RV-ST Connecting Cable | Description: PLC Cable 32out 2m MIL | ||
| P2RV-4-300C | G2RV-ST PLC Cable 32out 3m MIL | OMRON | Type: G2RV-ST Connecting Cable | Description: PLC Cable 32out 3m MIL | ||
| P2RV-4-500C | G2RV-ST PLC Cable 32out 5m MIL | OMRON | Type: G2RV-ST Connecting Cable | Description: PLC Cable 32out 5m MIL | ||
| P2RV-4-100IMC | G2RV-ST PLC Cable 32in 1m MIL | OMRON | Type: G2RV-ST Connecting Cable | Description: PLC Cable 32in 1m MIL | ||
| P2RV-4-200IMC | G2RV-ST PLC Cable 32in 2m MIL | OMRON | Type: G2RV-ST Connecting Cable | Description: PLC Cable 32in 2m MIL | ||
| P2RV-A050C-OMR NX | G2RV-ST NX Cable 8out 0.5m | OMRON | Type: G2RV-ST Connecting Cable | Description: NX Cable 8out 0.5m | ||
| P2RV-A100C-OMR NX | G2RV-ST NX Cable 8out 1m | OMRON | Type: G2RV-ST Connecting Cable | Description: NX Cable 8out 1m | ||
| P2RV-A050IC-OMR NX | G2RV-ST NX Cable 8in 0.5m | OMRON | Type: G2RV-ST Connecting Cable | Description: NX Cable 8in 0.5m | ||
| P2RV-A100IC-OMR NX | G2RV-ST NX Cable 8in 1m | OMRON | Type: G2RV-ST Connecting Cable | Description: NX Cable 8in 1m |
