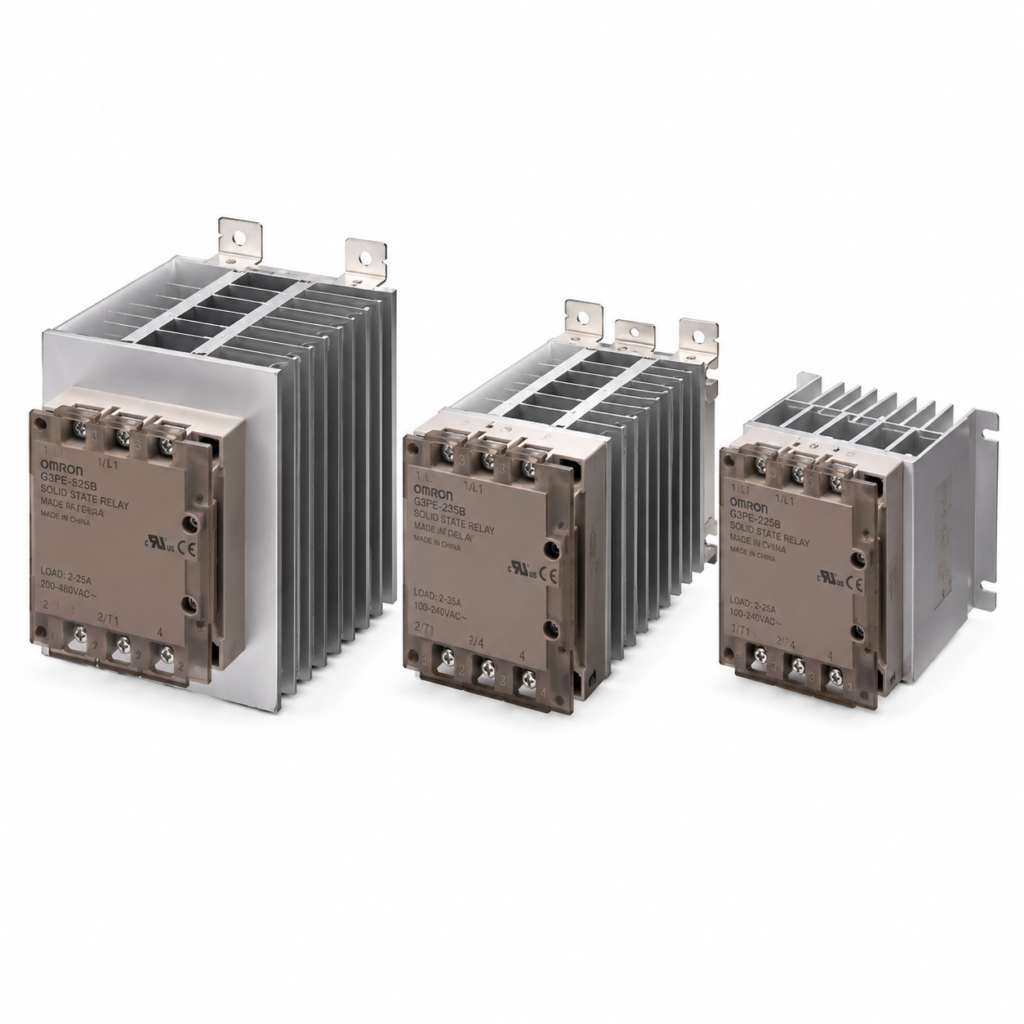

[OMRON] — G3PE Three-phase Solid State Contactor for Heaters (15-45A, 240/480VAC, 2/3-pole, DIN+Screw)
Family ID: OMRON-G3PE-3PH
Compact, Slim-profile SSRs with Heat Sinks. Solid State Contactors for Three-phase Heaters.
53 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G3PE-215B-3N DC12-24 | G3PE 3ph DIN 15A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 15A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-215B-2N DC12-24 | G3PE 3ph DIN 15A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 15A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-515B-3N DC12-24 | G3PE 3ph DIN 15A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 15A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-515B-2N DC12-24 | G3PE 3ph DIN 15A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 15A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-225B-3N DC12-24 | G3PE 3ph DIN 25A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 25A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-225B-2N DC12-24 | G3PE 3ph DIN 25A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 25A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-525B-3N DC12-24 | G3PE 3ph DIN 25A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 25A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-525B-2N DC12-24 | G3PE 3ph DIN 25A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 25A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-235B-3N DC12-24 | G3PE 3ph DIN 35A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 35A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-235B-2N DC12-24 | G3PE 3ph DIN 35A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 35A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-535B-3N DC12-24 | G3PE 3ph DIN 35A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 35A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-535B-2N DC12-24 | G3PE 3ph DIN 35A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 35A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-245B-3N DC12-24 | G3PE 3ph DIN 45A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 45A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-245B-2N DC12-24 | G3PE 3ph DIN 45A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 45A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-545B-3N DC12-24 | G3PE 3ph DIN 45A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 45A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-545B-2N DC12-24 | G3PE 3ph DIN 45A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, DIN Track) | Load Current: 45A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: DIN Track (TR35-15Fe IEC60715) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-215B-3 DC12-24 | G3PE 3ph Screw 15A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 15A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-215B-2 DC12-24 | G3PE 3ph Screw 15A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 15A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-515B-3 DC12-24 | G3PE 3ph Screw 15A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 15A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-515B-2 DC12-24 | G3PE 3ph Screw 15A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 15A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-225B-3 DC12-24 | G3PE 3ph Screw 25A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 25A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-225B-2 DC12-24 | G3PE 3ph Screw 25A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 25A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-525B-3 DC12-24 | G3PE 3ph Screw 25A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 25A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-525B-2 DC12-24 | G3PE 3ph Screw 25A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 25A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-235B-3 DC12-24 | G3PE 3ph Screw 35A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 35A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-235B-2 DC12-24 | G3PE 3ph Screw 35A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 35A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-535B-3 DC12-24 | G3PE 3ph Screw 35A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 35A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-535B-2 DC12-24 | G3PE 3ph Screw 35A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 35A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-245B-3 DC12-24 | G3PE 3ph Screw 45A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 45A | Load Voltage: 100-240 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-245B-2 DC12-24 | G3PE 3ph Screw 45A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 45A | Load Voltage: 100-240 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-545B-3 DC12-24 | G3PE 3ph Screw 45A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 45A | Load Voltage: 200-480 VAC | Poles: 3-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-545B-2 DC12-24 | G3PE 3ph Screw 45A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (Built-in Heat Sink, Screw) | Load Current: 45A | Load Voltage: 200-480 VAC | Poles: 2-pole | Mounting: Screw (some also DIN Track) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-215B-3H DC12-24 | G3PE 3ph ExtHS 15A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 15A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-215B-2H DC12-24 | G3PE 3ph ExtHS 15A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 15A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-515B-3H DC12-24 | G3PE 3ph ExtHS 15A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 15A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-515B-2H DC12-24 | G3PE 3ph ExtHS 15A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 15A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-225B-3H DC12-24 | G3PE 3ph ExtHS 25A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 25A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-225B-2H DC12-24 | G3PE 3ph ExtHS 25A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 25A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-525B-3H DC12-24 | G3PE 3ph ExtHS 25A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 25A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-525B-2H DC12-24 | G3PE 3ph ExtHS 25A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 25A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-235B-3H DC12-24 | G3PE 3ph ExtHS 35A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 35A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-235B-2H DC12-24 | G3PE 3ph ExtHS 35A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 35A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-535B-3H DC12-24 | G3PE 3ph ExtHS 35A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 35A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-535B-2H DC12-24 | G3PE 3ph ExtHS 35A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 35A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-245B-3H DC12-24 | G3PE 3ph ExtHS 45A 100-240 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 45A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-245B-2H DC12-24 | G3PE 3ph ExtHS 45A 100-240 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 45A (depends on heat sink) | Load Voltage: 100-240 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-545B-3H DC12-24 | G3PE 3ph ExtHS 45A 200-480 VAC 3-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 45A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 3-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| G3PE-545B-2H DC12-24 | G3PE 3ph ExtHS 45A 200-480 VAC 2-pole | OMRON | Type: G3PE Three-phase SSR (External Heat Sink) | Load Current: 45A (depends on heat sink) | Load Voltage: 200-480 VAC | Poles: 2-pole | Heat Sink: Order separately (Y92B-P[]) | Note: Input: 12-24 VDC. Zero cross. Load current depends on ambient temperature. | ||
| Y92B-P50 | G3PE External Heat Sink Rth=1.67°C/W | OMRON | Type: G3PE External Heat Sink | Thermal Resistance: 1.67 °C/W | ||
| Y92B-P100 | G3PE External Heat Sink Rth=1.01°C/W | OMRON | Type: G3PE External Heat Sink | Thermal Resistance: 1.01 °C/W | ||
| Y92B-P150 | G3PE External Heat Sink Rth=0.63°C/W | OMRON | Type: G3PE External Heat Sink | Thermal Resistance: 0.63 °C/W | ||
| Y92B-P200 | G3PE External Heat Sink Rth=0.43°C/W | OMRON | Type: G3PE External Heat Sink | Thermal Resistance: 0.43 °C/W | ||
| Y92B-P250 | G3PE External Heat Sink Rth=0.36°C/W | OMRON | Type: G3PE External Heat Sink | Thermal Resistance: 0.36 °C/W |
