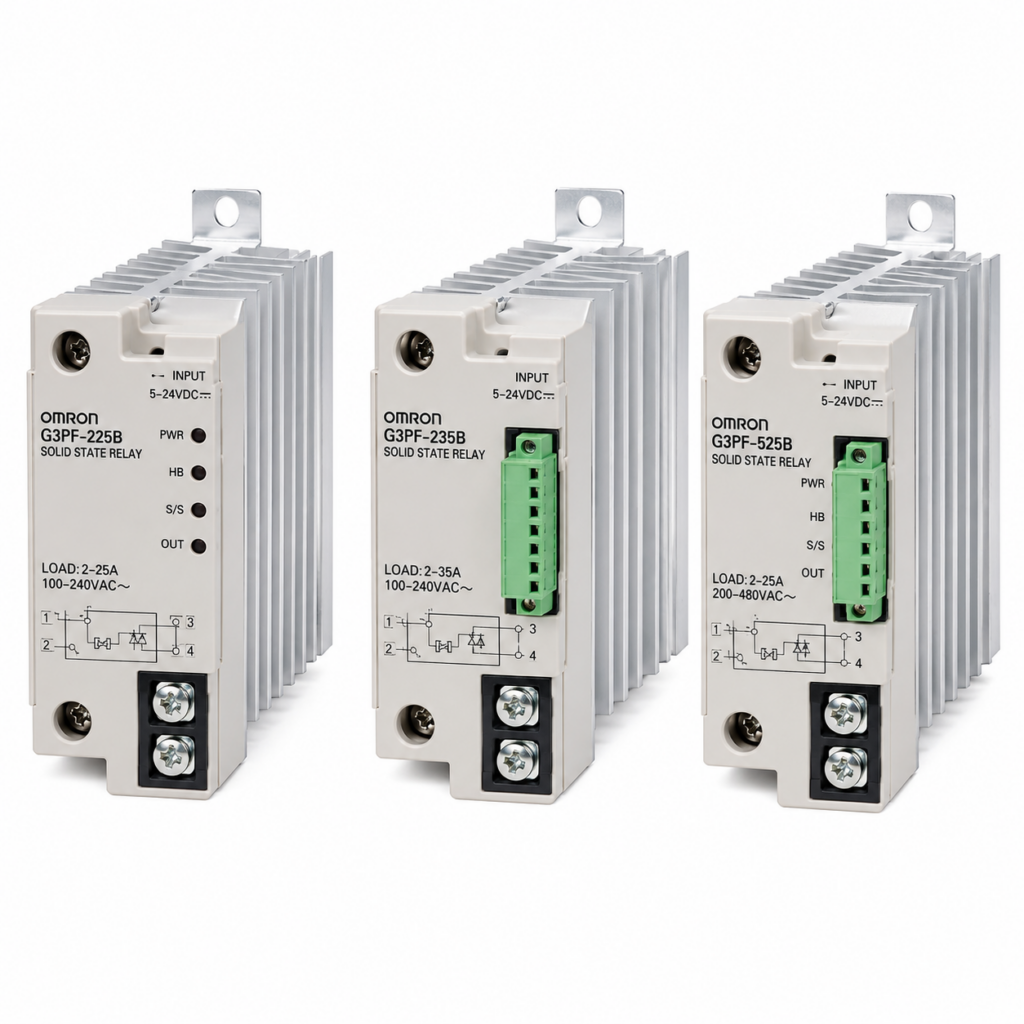

[OMRON] — G3PF SSR with Built-in Current Transformer (Heater Burnout + SSR Short-circuit Detection)
Family ID: OMRON-G3PF
A New-concept SSR with Built-in Current Transformer. Heater Burnout and SSR Shortcircuit Failure Detection.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G3PF-225B | G3PF 2-25A 100-240 VAC M3 | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: M3 | Alarm Output: 1 output (Common) | Load Current: 2-25A | Load Voltage: 100-240 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-235B | G3PF 2-35A 100-240 VAC M3 | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: M3 | Alarm Output: 1 output (Common) | Load Current: 2-35A | Load Voltage: 100-240 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-525B | G3PF 2-25A 200-480 VAC M3 | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: M3 | Alarm Output: 1 output (Common) | Load Current: 2-25A | Load Voltage: 200-480 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-535B | G3PF 2-35A 200-480 VAC M3 | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: M3 | Alarm Output: 1 output (Common) | Load Current: 2-35A | Load Voltage: 200-480 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-225B-CTB | G3PF 2-25A 100-240 VAC Screwless cl | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Screwless clamp (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-25A | Load Voltage: 100-240 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-235B-CTB | G3PF 2-35A 100-240 VAC Screwless cl | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Screwless clamp (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-35A | Load Voltage: 100-240 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-525B-CTB | G3PF 2-25A 200-480 VAC Screwless cl | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Screwless clamp (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-25A | Load Voltage: 200-480 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-535B-CTB | G3PF 2-35A 200-480 VAC Screwless cl | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Screwless clamp (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-35A | Load Voltage: 200-480 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-225B-STB | G3PF 2-25A 100-240 VAC Compact slot | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Compact slotted screw (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-25A | Load Voltage: 100-240 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-235B-STB | G3PF 2-35A 100-240 VAC Compact slot | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Compact slotted screw (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-35A | Load Voltage: 100-240 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-525B-STB | G3PF 2-25A 200-480 VAC Compact slot | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Compact slotted screw (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-25A | Load Voltage: 200-480 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature | ||
| G3PF-535B-STB | G3PF 2-35A 200-480 VAC Compact slot | OMRON | Type: G3PF SSR with Built-in CT | Input Terminal: Compact slotted screw (detachable) | Alarm Output: 2 outputs (Separate) | Load Current: 2-35A | Load Voltage: 200-480 VAC | Zero Cross: Yes | Indicator: Yes | Detection: Heater Burnout + SSR Short-circuit Failure | Note: Load current depends on ambient temperature |
