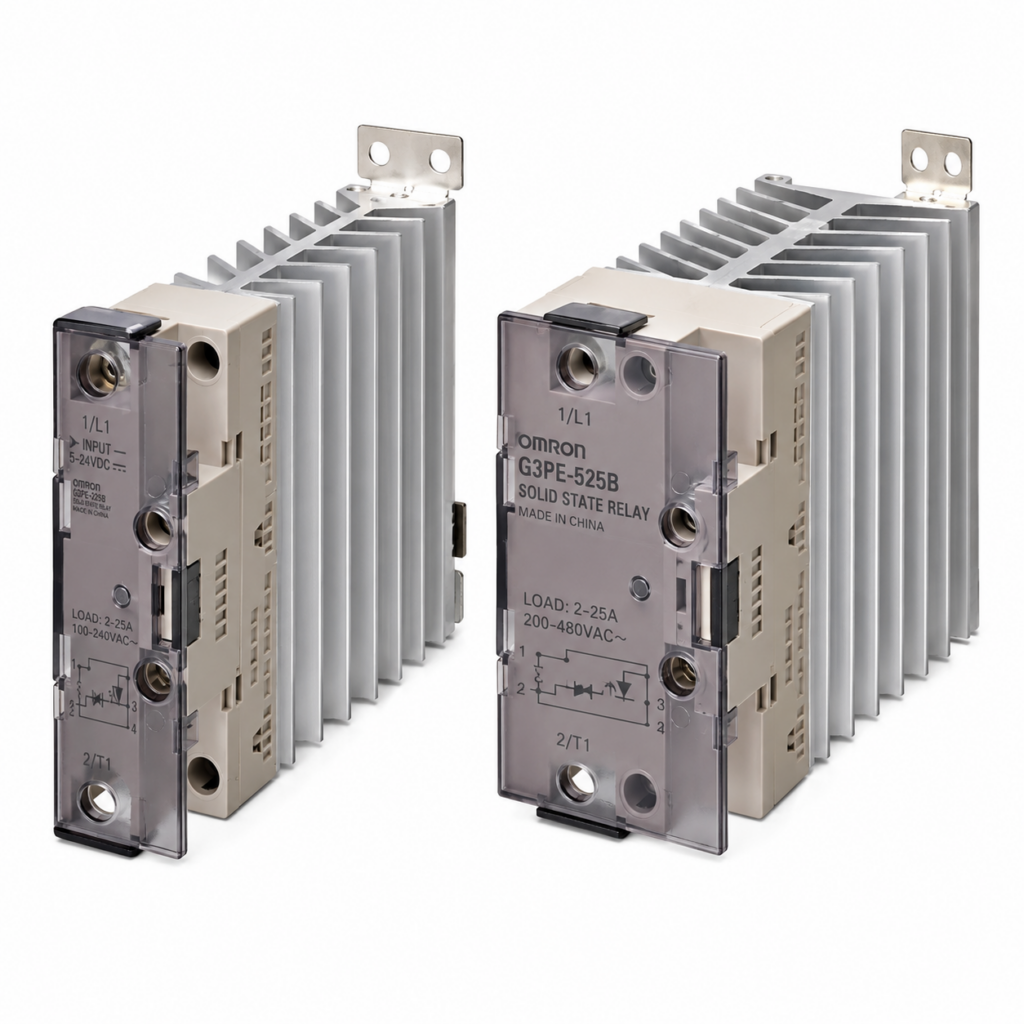

[OMRON] — G3PE Single-phase SSR for Heaters (15-45A, 240/480VAC, w/ Heat Sink, 12-24VDC)

Family ID: OMRON-G3PE-1PH

Compact, Slim-profile SSRs with Heat Sinks. Models with No Zero Cross for a Wide Range of Applications.

16 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	G3PE-215B DC12-24	G3PE 15A 100-240 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 15A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-225B DC12-24	G3PE 25A 100-240 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 25A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-235B DC12-24	G3PE 35A 100-240 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 35A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-245B DC12-24	G3PE 45A 100-240 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 45A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-215BL DC12-24	G3PE 15A 100-240 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 15A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-225BL DC12-24	G3PE 25A 100-240 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 25A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-235BL DC12-24	G3PE 35A 100-240 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 35A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-245BL DC12-24	G3PE 45A 100-240 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 45A \| Load Voltage: 100-240 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-515B DC12-24	G3PE 15A 200-480 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 15A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-525B DC12-24	G3PE 25A 200-480 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 25A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-535B DC12-24	G3PE 35A 200-480 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 35A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-545B DC12-24	G3PE 45A 200-480 VAC ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 45A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: Yes \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-515BL DC12-24	G3PE 15A 200-480 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 15A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-525BL DC12-24	G3PE 25A 200-480 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 25A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-535BL DC12-24	G3PE 35A 200-480 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 35A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
	G3PE-545BL DC12-24	G3PE 45A 200-480 VAC no-ZC	OMRON	Type: G3PE Single-phase SSR (with Heat Sink) \| Load Current: 45A \| Load Voltage: 200-480 VAC \| Input Voltage: 12-24 VDC \| Zero Cross: No \| Insulation: Phototriac coupler \| Indicator: Yes (yellow) \| Note: Load current depends on ambient temperature. Input: 12-24 VDC.
