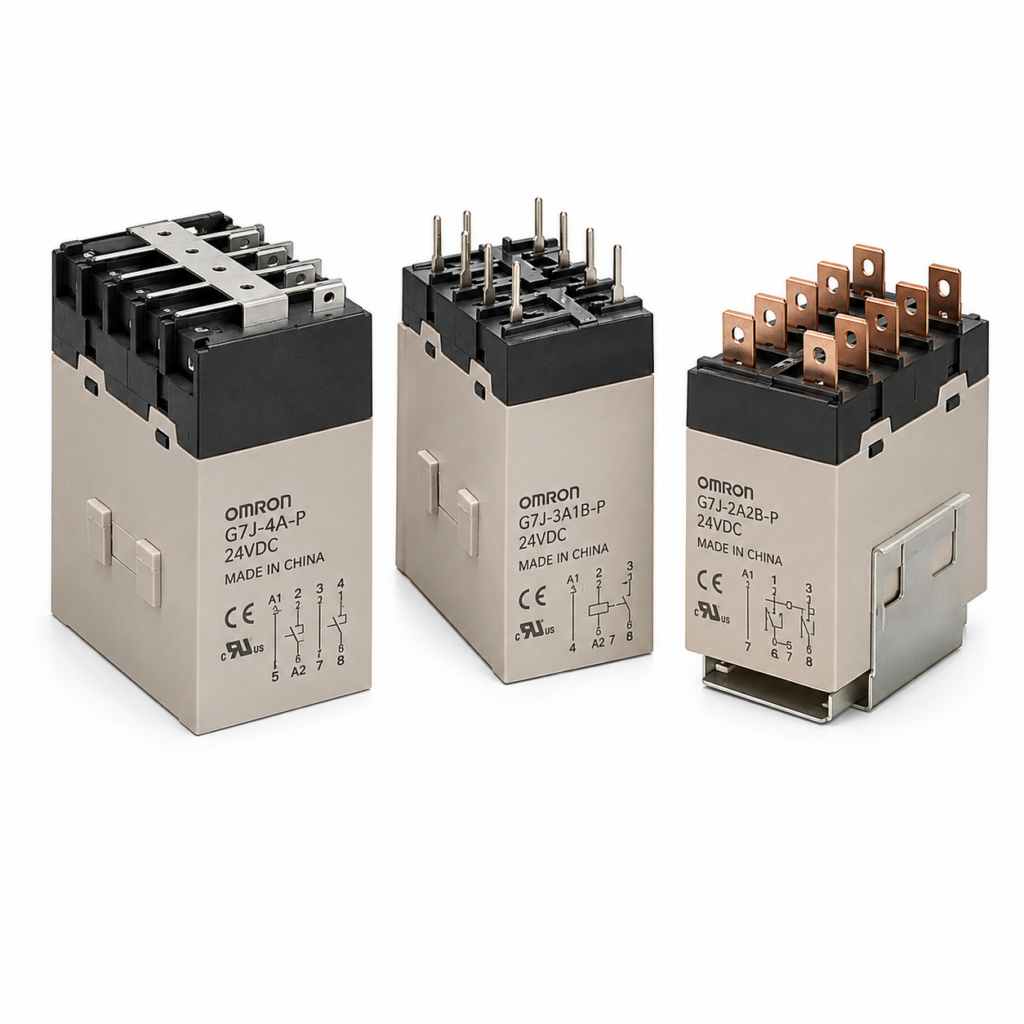

[OMRON] — G7J Power Relay (High-capacity Contactor-class, 4-pole, PCB+Screw+Tab Terminal)
Family ID: OMRON-G7J
A High-capacity, High-dielectric-strength, Multi-pole Relay Used Like a Contactor
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G7J-4A-P | G7J 4PST-NO PCB Standard | OMRON | Type: G7J Power Relay | Contacts: 4PST-NO | Terminal: PCB | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-3A1B-P | G7J 3PST-NO/SPST-NC PCB Standard | OMRON | Type: G7J Power Relay | Contacts: 3PST-NO/SPST-NC | Terminal: PCB | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-2A2B-P | G7J DPST-NO/DPST-NC PCB Standard | OMRON | Type: G7J Power Relay | Contacts: DPST-NO/DPST-NC | Terminal: PCB | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-4A-PZ | G7J 4PST-NO PCB Bifurcated contact | OMRON | Type: G7J Power Relay | Contacts: 4PST-NO | Terminal: PCB | Contact Type: Bifurcated contact | AC Voltages: 200-240 VAC | DC Voltages: 24 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-3A1B-PZ | G7J 3PST-NO/SPST-NC PCB Bifurcated contact | OMRON | Type: G7J Power Relay | Contacts: 3PST-NO/SPST-NC | Terminal: PCB | Contact Type: Bifurcated contact | AC Voltages: 200-240 VAC | DC Voltages: 12/24 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-4A-B | G7J 4PST-NO W-bracket Screw Standard | OMRON | Type: G7J Power Relay | Contacts: 4PST-NO | Terminal: W-bracket Screw | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-3A1B-B | G7J 3PST-NO/SPST-NC W-bracket Screw Standard | OMRON | Type: G7J Power Relay | Contacts: 3PST-NO/SPST-NC | Terminal: W-bracket Screw | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-2A2B-B | G7J DPST-NO/DPST-NC W-bracket Screw Standard | OMRON | Type: G7J Power Relay | Contacts: DPST-NO/DPST-NC | Terminal: W-bracket Screw | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-3A1B-BZ | G7J 3PST-NO/SPST-NC W-bracket Screw Bifurcated contact | OMRON | Type: G7J Power Relay | Contacts: 3PST-NO/SPST-NC | Terminal: W-bracket Screw | Contact Type: Bifurcated contact | AC Voltages: 200-240 VAC | DC Voltages: 12/24 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-4A-T | G7J 4PST-NO W-bracket Tab Standard | OMRON | Type: G7J Power Relay | Contacts: 4PST-NO | Terminal: W-bracket Tab | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-3A1B-T | G7J 3PST-NO/SPST-NC W-bracket Tab Standard | OMRON | Type: G7J Power Relay | Contacts: 3PST-NO/SPST-NC | Terminal: W-bracket Tab | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-2A2B-T | G7J DPST-NO/DPST-NC W-bracket Tab Standard | OMRON | Type: G7J Power Relay | Contacts: DPST-NO/DPST-NC | Terminal: W-bracket Tab | Contact Type: Standard | AC Voltages: 24/50/100-120/200-240 VAC | DC Voltages: 12/24/48/100 VDC | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| G7J-4A-TZ | G7J 4PST-NO W-bracket Tab Bifurcated contact | OMRON | Type: G7J Power Relay | Contacts: 4PST-NO | Terminal: W-bracket Tab | Contact Type: Bifurcated contact | AC Voltages: 200-240 VAC | DC Voltages: --- | Note: Specify rated voltage when ordering. W-bracket (R99-04 for G5F) required for B/T mounting types. | ||
| R99-04 for G5F | G7J W-bracket Mounting Accessory | OMRON | Type: G7J W-bracket | Applicable: G7J-4A-B/T(Z), G7J-3A1B-B(Z)/T, G7J-2A2B-B/T | Note: Required for screw and tab terminal models |
