Relays
Omron

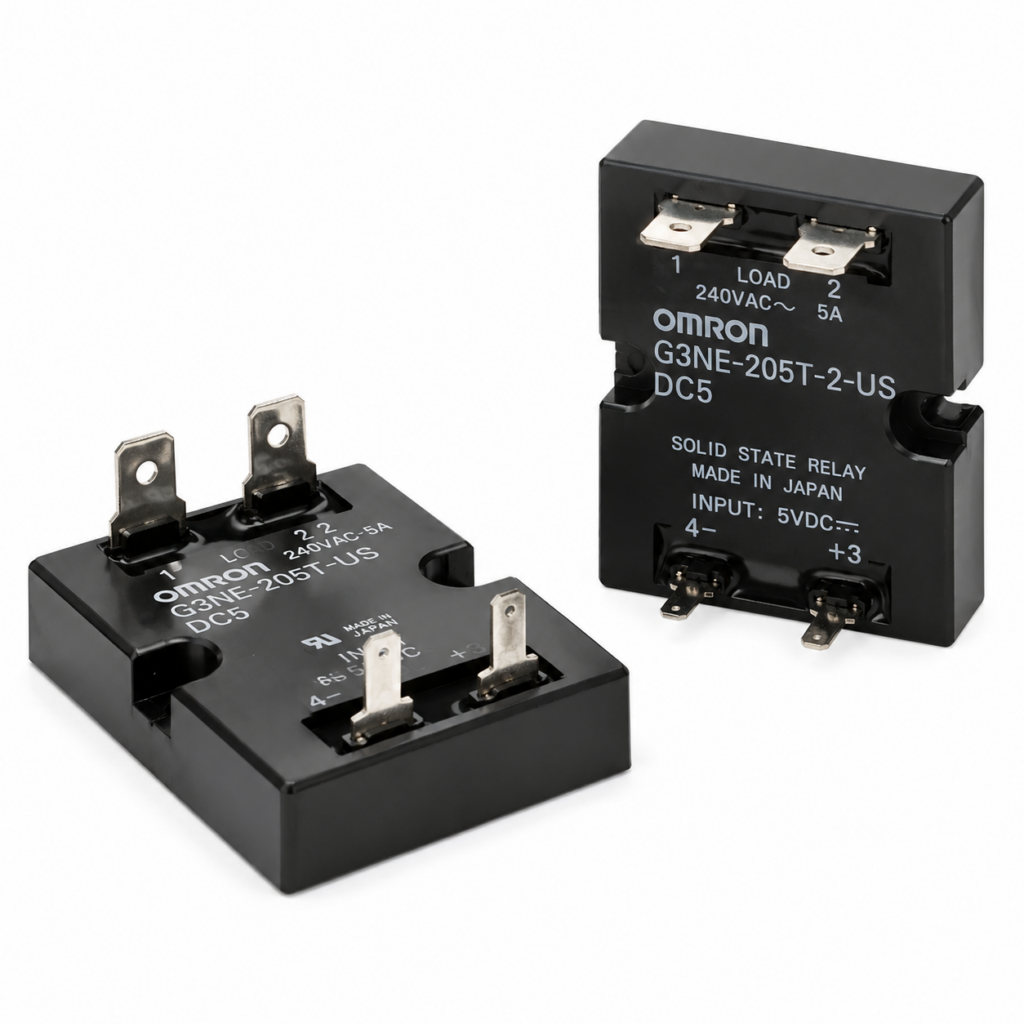

[OMRON] — G3NE SSR (Compact Low-cost, 5/10/20A, 100-240VAC, Zero Cross/Non, 5/12/24VDC)
Family ID: OMRON-G3NE
Compact, Low-cost, SSR Switching 5 to 20 A
39 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G3NE-205T-US DC5 | G3NE 5A 240VAC YesZC DC5V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 5 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205T-US DC12 | G3NE 5A 240VAC YesZC DC12V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 12 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205T-US DC24 | G3NE 5A 240VAC YesZC DC24V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 24 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205T-2-US DC5 | G3NE 5A 240VAC YesZC DC5V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 5 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205T-2-US DC12 | G3NE 5A 240VAC YesZC DC12V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 12 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205T-2-US DC24 | G3NE 5A 240VAC YesZC DC24V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 24 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205TL-US DC5 | G3NE 5A 240VAC NoZC DC5V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 5 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205TL-US DC12 | G3NE 5A 240VAC NoZC DC12V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 12 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205TL-US DC24 | G3NE 5A 240VAC NoZC DC24V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 24 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205TL-2-US DC5 | G3NE 5A 240VAC NoZC DC5V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 5 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205TL-2-US DC12 | G3NE 5A 240VAC NoZC DC12V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 12 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-205TL-2-US DC24 | G3NE 5A 240VAC NoZC DC24V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 5A / 100-240 VAC | Input: 24 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210T-US DC5 | G3NE 10A 240VAC YesZC DC5V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 5 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210T-US DC12 | G3NE 10A 240VAC YesZC DC12V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 12 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210T-US DC24 | G3NE 10A 240VAC YesZC DC24V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 24 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210T-2-US DC5 | G3NE 10A 240VAC YesZC DC5V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 5 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210T-2-US DC12 | G3NE 10A 240VAC YesZC DC12V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 12 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210T-2-US DC24 | G3NE 10A 240VAC YesZC DC24V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 24 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210TL-US DC5 | G3NE 10A 240VAC NoZC DC5V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 5 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210TL-US DC12 | G3NE 10A 240VAC NoZC DC12V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 12 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210TL-US DC24 | G3NE 10A 240VAC NoZC DC24V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 24 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210TL-2-US DC5 | G3NE 10A 240VAC NoZC DC5V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 5 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210TL-2-US DC12 | G3NE 10A 240VAC NoZC DC12V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 12 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-210TL-2-US DC24 | G3NE 10A 240VAC NoZC DC24V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 10A / 100-240 VAC | Input: 24 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220T-US DC5 | G3NE 20A 240VAC YesZC DC5V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 5 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220T-US DC12 | G3NE 20A 240VAC YesZC DC12V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 12 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220T-US DC24 | G3NE 20A 240VAC YesZC DC24V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 24 VDC | Zero Cross: Yes | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220T-2-US DC5 | G3NE 20A 240VAC YesZC DC5V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 5 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220T-2-US DC12 | G3NE 20A 240VAC YesZC DC12V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 12 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220T-2-US DC24 | G3NE 20A 240VAC YesZC DC24V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 24 VDC | Zero Cross: Yes | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220TL-US DC5 | G3NE 20A 240VAC NoZC DC5V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 5 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220TL-US DC12 | G3NE 20A 240VAC NoZC DC12V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 12 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220TL-US DC24 | G3NE 20A 240VAC NoZC DC24V Standard | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 24 VDC | Zero Cross: No | Variant: Standard | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220TL-2-US DC5 | G3NE 20A 240VAC NoZC DC5V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 5 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220TL-2-US DC12 | G3NE 20A 240VAC NoZC DC12V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 12 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| G3NE-220TL-2-US DC24 | G3NE 20A 240VAC NoZC DC24V Variant-2 | OMRON | Type: G3NE SSR (Compact) | Load: 20A / 100-240 VAC | Input: 24 VDC | Zero Cross: No | Variant: Variant-2 | Insulation: Phototriac | Indicator: No | Note: Load current depends on ambient temperature. Add -US suffix for UL/CSA/EN certified models. | ||
| R99-12 FOR G3NA | G3NE One-touch Mounting Plate (shared with G3NA) | OMRON | Type: G3NE Mounting Plate | ||
| Y92B-N50 | G3NE Heat Sink DIN Y92B-N50 | OMRON | Type: G3NE Heat Sink (DIN Track) | Applicable: G3NE-205T(L)(-2)-US / G3NE-210T(L)(-2)-US | ||
| Y92B-N100 | G3NE Heat Sink DIN Y92B-N100 | OMRON | Type: G3NE Heat Sink (DIN Track) | Applicable: G3NE-220T(L)(-2)-US |
