![[OMRON] — K8DS-PA Three-phase Asymmetry and Phase-sequence Phase-loss Relay (200~480VAC, 17.5mm)](https://img.prosourcemro.com/2026/05/001-438-1024x1024.png)
Monitoring Relays
Omron

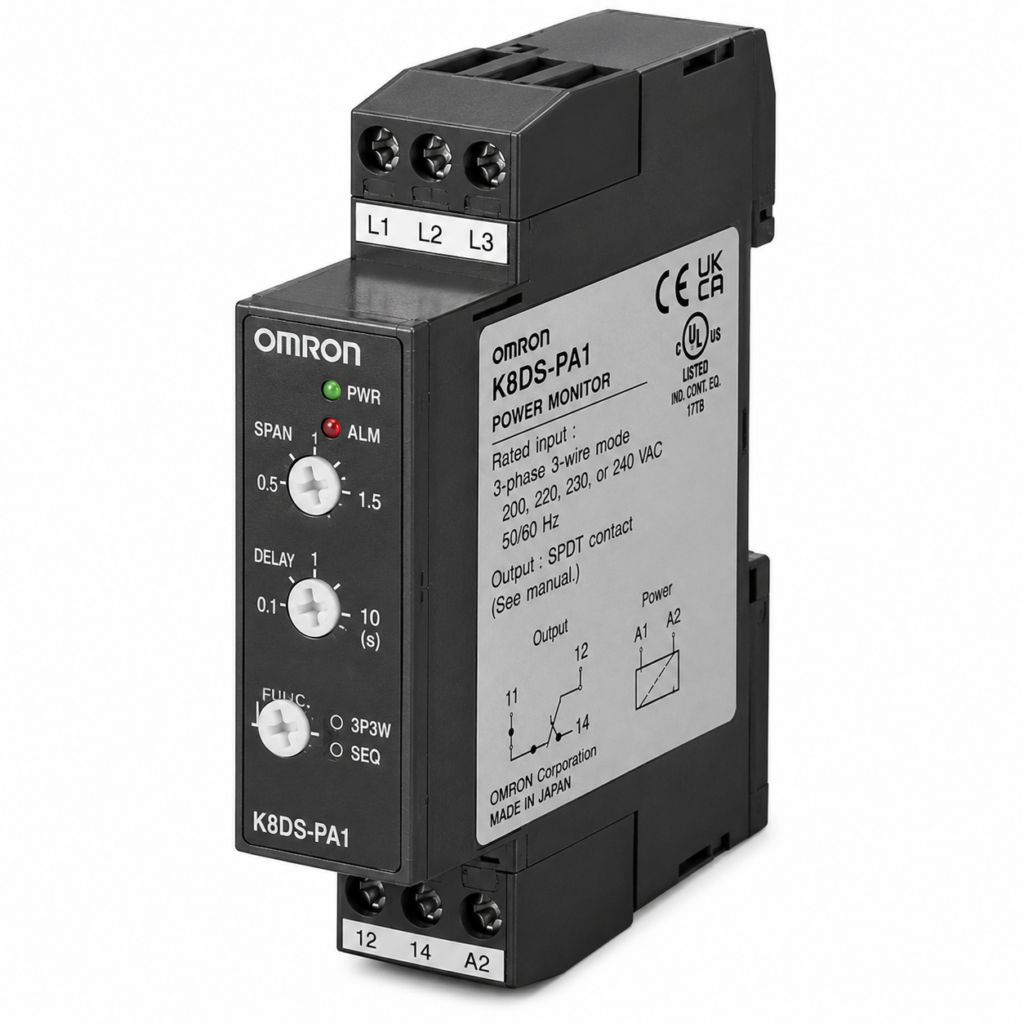

[OMRON] — K8DS-PA Three-phase Asymmetry and Phase-sequence Phase-loss Relay (200~480VAC, 17.5mm)
Family ID: OMRON-K8DS-PA
Ideal for 3-phase Voltage Asymmetry Monitoring for Industrial Facilities and Equipment. 17.5 mm (W). One SPDT output relays
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K8DS-PA1 | K8DS-PA 200~240VAC 3-wire | OMRON | Type: Three-phase Asymmetry/Phase-sequence/Phase-loss Relay | Rated Input Voltage: 3-phase 3-wire 200/220/230/240 VAC | Input Range Setting: Rotary switch | Power Supply: Same as rated input voltage | Output: SPDT × 1 | Width: 17.5 mm | ||
| K8DS-PA2 | K8DS-PA 380~480VAC 3-wire | OMRON | Type: Three-phase Asymmetry/Phase-sequence/Phase-loss Relay | Rated Input Voltage: 3-phase 3-wire 380/400/415/480 VAC | Input Range Setting: Rotary switch | Power Supply: Same as rated input voltage | Output: SPDT × 1 | Width: 17.5 mm |
