Monitoring Relays
Omron

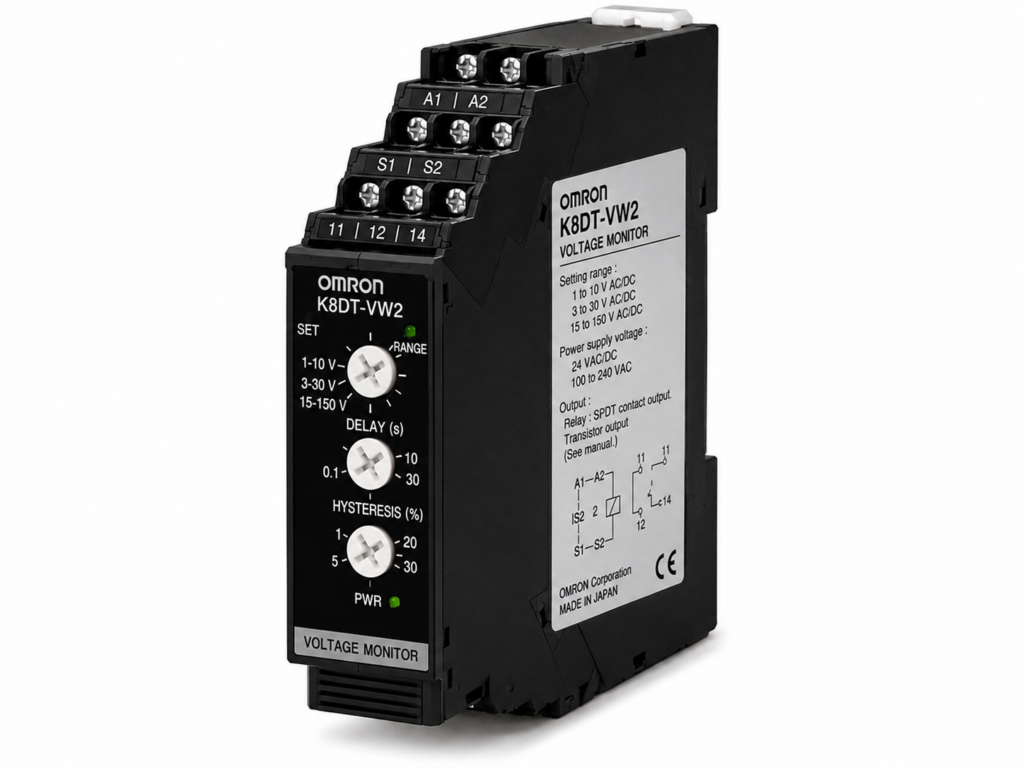

[OMRON] — K8DT-VW Single-phase Overvoltage/Undervoltage Relay (Simultaneous, 1V~600V AC/DC)
Family ID: OMRON-K8DT-VW
OMRON K8DT-VW Series single-phase relay for simultaneous overvoltage and undervoltage monitoring. One relay monitors both conditions at once. K8DT-VW2: 1~150V AC/DC. K8DT-VW3: 20~600V AC/DC. Power supply: 24 VAC/DC or 100~240 VAC. Output: Relay SPDT or Transistor.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K8DT-VW2CD | K8DT-VW VW2 24 VAC/DC Relay SPDT | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 24 VAC/DC | Output: Relay SPDT | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW2TD | K8DT-VW VW2 24 VAC/DC Transistor | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 24 VAC/DC | Output: Transistor | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW2CA | K8DT-VW VW2 100~240 VAC Relay SPDT | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 100~240 VAC | Output: Relay SPDT | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW2TA | K8DT-VW VW2 100~240 VAC Transistor | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 100~240 VAC | Output: Transistor | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW3CD | K8DT-VW VW3 24 VAC/DC Relay SPDT | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 24 VAC/DC | Output: Relay SPDT | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW3TD | K8DT-VW VW3 24 VAC/DC Transistor | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 24 VAC/DC | Output: Transistor | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW3CA | K8DT-VW VW3 100~240 VAC Relay SPDT | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 100~240 VAC | Output: Relay SPDT | Mode: Overvoltage AND Undervoltage simultaneous monitoring | ||
| K8DT-VW3TA | K8DT-VW VW3 100~240 VAC Transistor | OMRON | Type: Single-phase Overvoltage/Undervoltage Relay (simultaneous) | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 100~240 VAC | Output: Transistor | Mode: Overvoltage AND Undervoltage simultaneous monitoring |
