Monitoring Relays
Omron

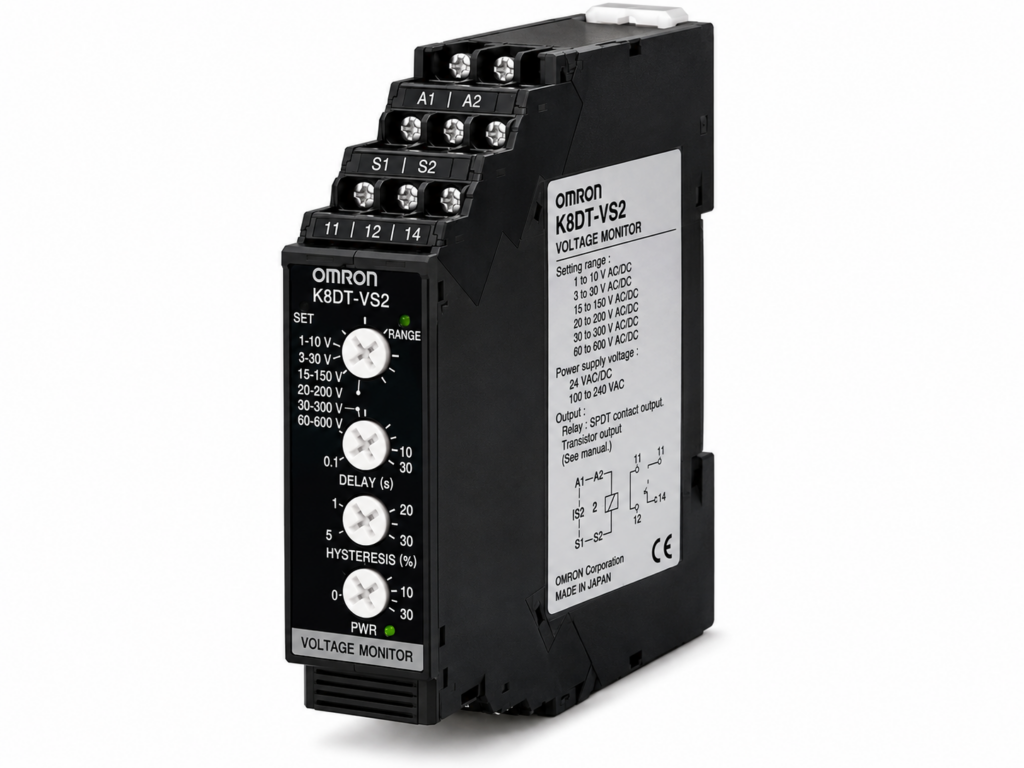

[OMRON] — K8DT-VS Single-phase Voltage Relay (Overvoltage/Undervoltage, 1V~600V AC/DC)
Family ID: OMRON-K8DT-VS
OMRON K8DT-VS Series single-phase voltage relay. Detects abnormal voltages to protect equipment. Overvoltage or undervoltage mode selectable. K8DT-VS2: 1~150V AC/DC (3 ranges). K8DT-VS3: 20~600V AC/DC (3 ranges). Power supply: 24 VAC/DC or 100~240 VAC. Output: Relay SPDT or Transistor.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K8DT-VS2CD | K8DT-VS VS2 24 VAC/DC Relay SPDT | OMRON | Type: Single-phase Voltage Relay | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 24 VAC/DC | Output: Relay SPDT | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS2TD | K8DT-VS VS2 24 VAC/DC Transistor | OMRON | Type: Single-phase Voltage Relay | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 24 VAC/DC | Output: Transistor | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS2CA | K8DT-VS VS2 100~240 VAC Relay SPDT | OMRON | Type: Single-phase Voltage Relay | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 100~240 VAC | Output: Relay SPDT | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS2TA | K8DT-VS VS2 100~240 VAC Transistor | OMRON | Type: Single-phase Voltage Relay | Setting Range: 1~10V / 3~30V / 15~150V AC/DC | Power Supply: 100~240 VAC | Output: Transistor | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS3CD | K8DT-VS VS3 24 VAC/DC Relay SPDT | OMRON | Type: Single-phase Voltage Relay | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 24 VAC/DC | Output: Relay SPDT | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS3TD | K8DT-VS VS3 24 VAC/DC Transistor | OMRON | Type: Single-phase Voltage Relay | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 24 VAC/DC | Output: Transistor | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS3CA | K8DT-VS VS3 100~240 VAC Relay SPDT | OMRON | Type: Single-phase Voltage Relay | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 100~240 VAC | Output: Relay SPDT | Mode: Overvoltage or Undervoltage selectable | ||
| K8DT-VS3TA | K8DT-VS VS3 100~240 VAC Transistor | OMRON | Type: Single-phase Voltage Relay | Setting Range: 20~200V / 30~300V / 60~600V AC/DC | Power Supply: 100~240 VAC | Output: Transistor | Mode: Overvoltage or Undervoltage selectable |
