Monitoring Relays Omron

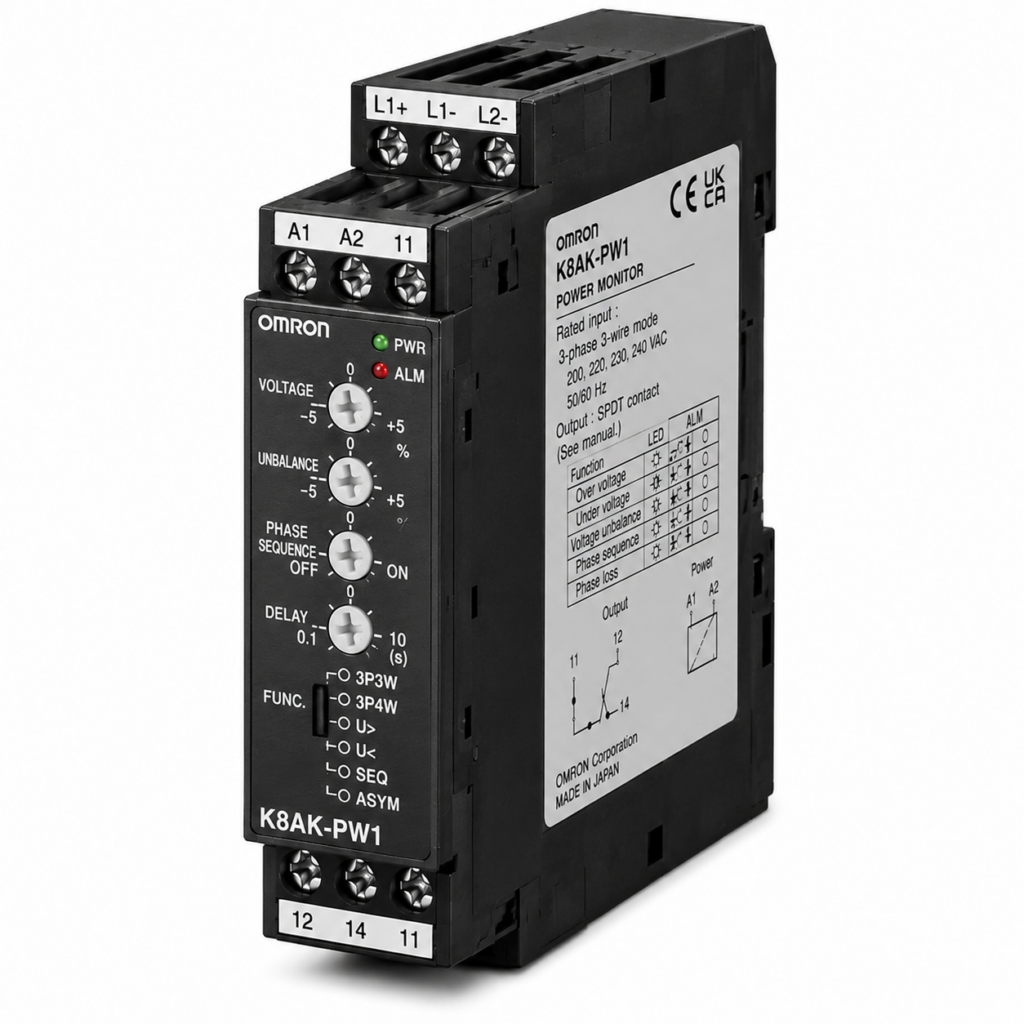

[OMRON] — K8AK-PW Three-phase Voltage Relay (200~480VAC, 3W/4W, 22.5mm, SPDT×2)

Family ID: OMRON-K8AK-PW

Ideal for Monitoring 3-phase Power Supplies for Industrial Facilities and Equipment. 22.5 mm (W). Two SPDT output relays

2 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	K8AK-PW1	K8AK-PW 200~240VAC 3W/4W	OMRON	Type: Three-phase Voltage Relay \| Rated Input 3W: 200/220/230/240 VAC \| Rated Input 4W: 115/127/133/138 VAC \| Mode Selection: DIP switch (3-wire or 4-wire + input range) \| Power Supply: Same as rated input voltage \| Output: SPDT × 2 \| Width: 22.5 mm
	K8AK-PW2	K8AK-PW 380~480VAC 3W/4W	OMRON	Type: Three-phase Voltage Relay \| Rated Input 3W: 380/400/415/480 VAC \| Rated Input 4W: 220/230/240/277 VAC \| Mode Selection: DIP switch (3-wire or 4-wire + input range) \| Power Supply: Same as rated input voltage \| Output: SPDT × 2 \| Width: 22.5 mm
