Displacement
Omron

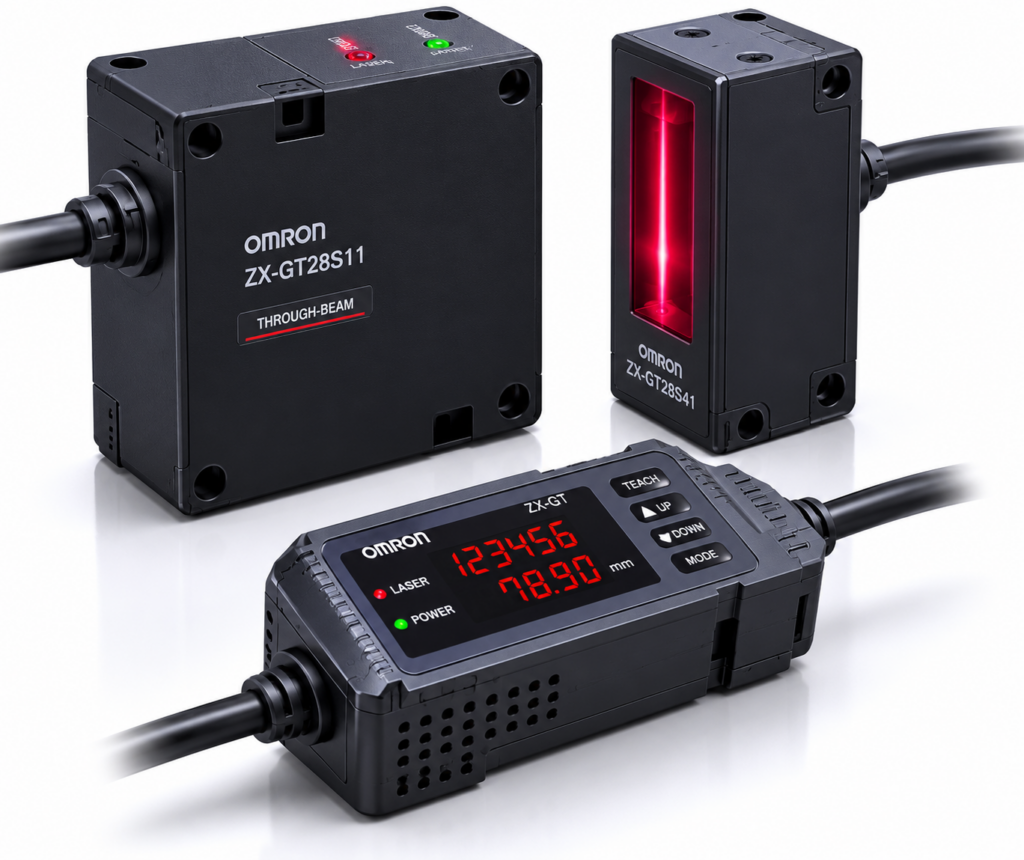

[OMRON] — ZX-GT Wide Laser Beam Measurement Sensor Head (28mm Separate / 40mm Integrated, NPN/PNP)
Family ID: OMRON-ZX-GT-HEAD
OMRON ZX-GT Series wide laser beam measurement sensor heads. Through-beam, line imaging device type. Separate emitter/receiver (ZX-GT28S11/41): 28mm measuring width, 0~500mm sensing distance, 10μm resolution. Integrated (ZX-GT2840S11/41): 40mm measuring width. NPN and PNP. Requires ZX-GTC11/41 controller.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ZX-GT28S11 | Separate type through-beam 28mm NPN | OMRON | Type: Emitter and Receiver Separate | Optical System: Through-beam | Measuring Width: 28 mm | Sensing Distance: 0 to 500 mm | Resolution: 10 μm | Output: NPN | Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required | Accessories: ZX-GIF11A/41A interface unit + software sold separately | ||
| ZX-GT28S41 | Separate type through-beam 28mm PNP | OMRON | Type: Emitter and Receiver Separate | Optical System: Through-beam | Measuring Width: 28 mm | Sensing Distance: 0 to 500 mm | Resolution: 10 μm | Output: PNP | Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required | ||
| ZX-GT2840S11 | Integrated type through-beam 40mm NPN | OMRON | Type: Emitter and Receiver Integrated | Optical System: Through-beam | Measuring Width: 40 mm | Sensing Distance: 0 to 500 mm | Resolution: 10 μm | Output: NPN | Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required | ||
| ZX-GT2840S41 | Integrated type through-beam 40mm PNP | OMRON | Type: Emitter and Receiver Integrated | Optical System: Through-beam | Measuring Width: 40 mm | Sensing Distance: 0 to 500 mm | Resolution: 10 μm | Output: PNP | Required Controller: ZX-GTC11 (NPN) or ZX-GTC41 (PNP) controller required |
