![[AUTONICS] BD Series Laser Displacement Sensors](https://img.prosourcemro.com/2026/04/001-1271.png)
Displacement
Autonics

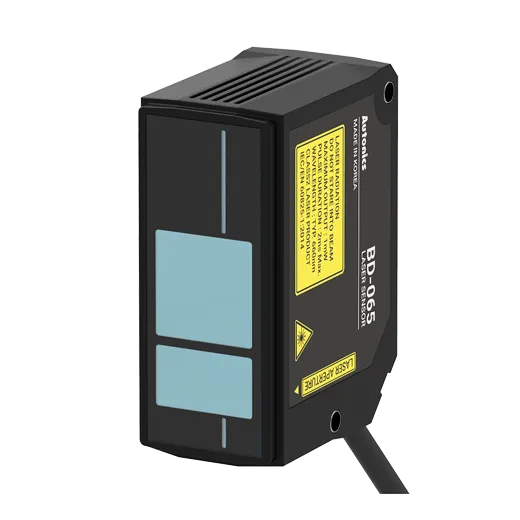

[AUTONICS] BD Series Laser Displacement Sensors
Family ID: AUTONICS-BD-SERIES
Laser displacement sensors with separate sensor head and amplifier unit. Class 1/Class 2 laser options. High-precision distance measurement. Various measuring ranges available.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BD-30 | — | AUTONICS | Laser displacement sensor head | BD Series | Triangulation | 30 mm ±10 mm | - | 12-24 VDC | Cable to amplifier | IP67 | Class 2 laser | ||
| AUTONICS-BD-60 | — | AUTONICS | Laser displacement sensor head | BD Series | Triangulation | 60 mm ±15 mm | - | 12-24 VDC | Cable to amplifier | IP67 | Class 2 laser | ||
| AUTONICS-BD-100 | — | AUTONICS | Laser displacement sensor head | BD Series | Triangulation | 100 mm ±35 mm | - | 12-24 VDC | Cable to amplifier | IP67 | Class 2 laser | ||
| AUTONICS-BD-200 | — | AUTONICS | Laser displacement sensor head | BD Series | Triangulation | 200 mm ±80 mm | - | 12-24 VDC | Cable to amplifier | IP67 | Class 2 laser | ||
| AUTONICS-BD-A1-N | — | AUTONICS | Laser displacement amplifier | BD Series | Amplifier unit | - | NPN open collector + Analog | 12-24 VDC | Connector | - | for BD heads | ||
| AUTONICS-BD-A1-P | — | AUTONICS | Laser displacement amplifier | BD Series | Amplifier unit | - | PNP open collector + Analog | 12-24 VDC | Connector | - | for BD heads |
